Ricoh TH-C1b - Bluetooth (B736)

10 February 2005 PRINTER OPTIONS
1-59
Installation
1.15.6 BLUETOOTH (B736)
!CAUTION
Disconnect the main machine’s power cord before you start this procedure.
NOTE: You can only install one of these network interfaces at the same time: IEEE
802.11b (Wireless LAN), IEEE1284 (Parallel/Centronics), IEEE1394
(FireWire), Bluetooth.
1. Remove the slot cover [A] from I/F Card Slot B (! x 2).
2. Install the Bluetooth board [B] (Knob-screw x 2).
NOTE: Use a screwdriver when you tighten the knob-screws. Do not tighten
them manually. It can cause this board to disconnect from the machine.
3. Install the Bluetooth card [C] in the slot of the Bluetooth board.
4. Attach the antenna cap [D].

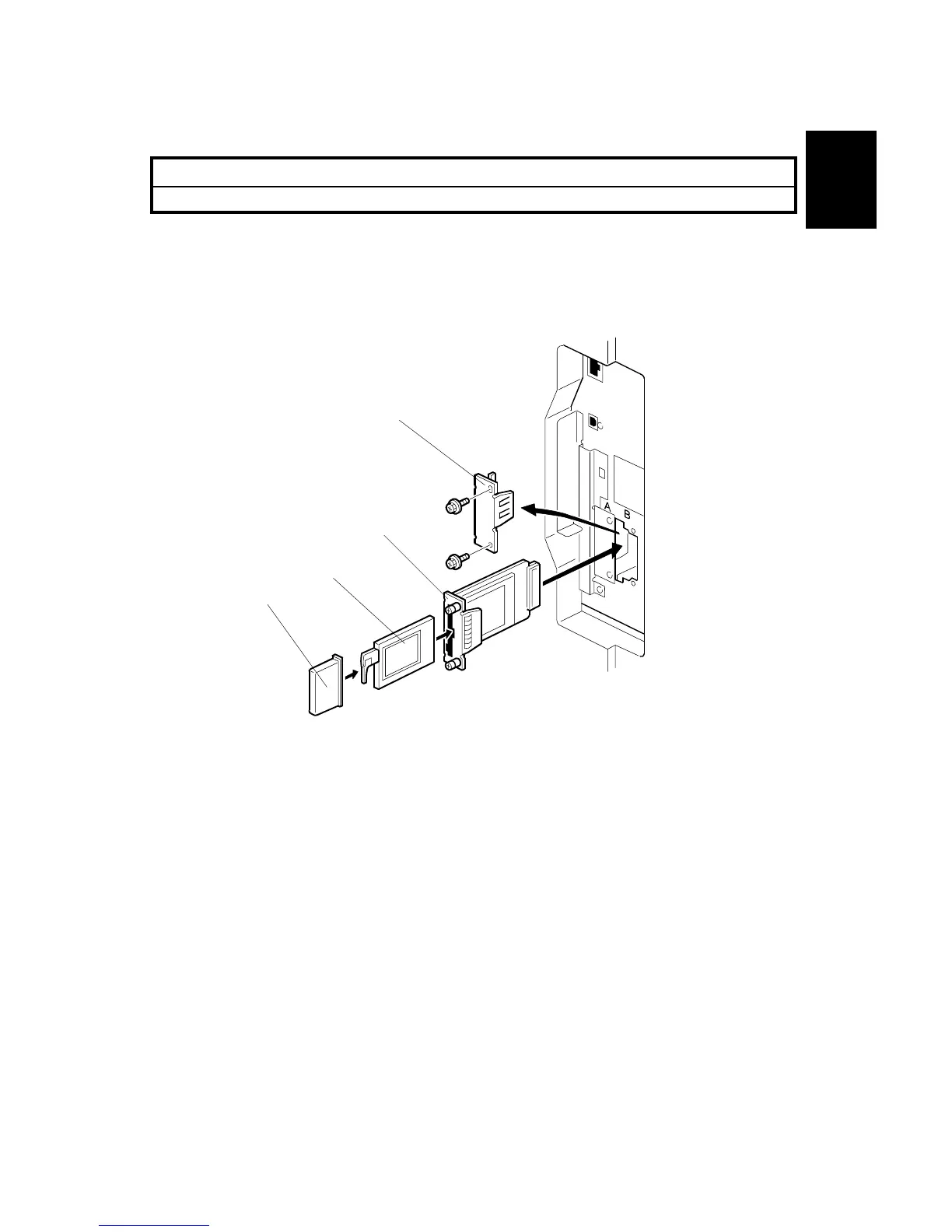

B736I001.WMF
[A]
[B]
[C]
[D]
