Ricoh TH-C1b - Development Motors; Main Motor

DRIVE UNITS 10 February 2005
3-54

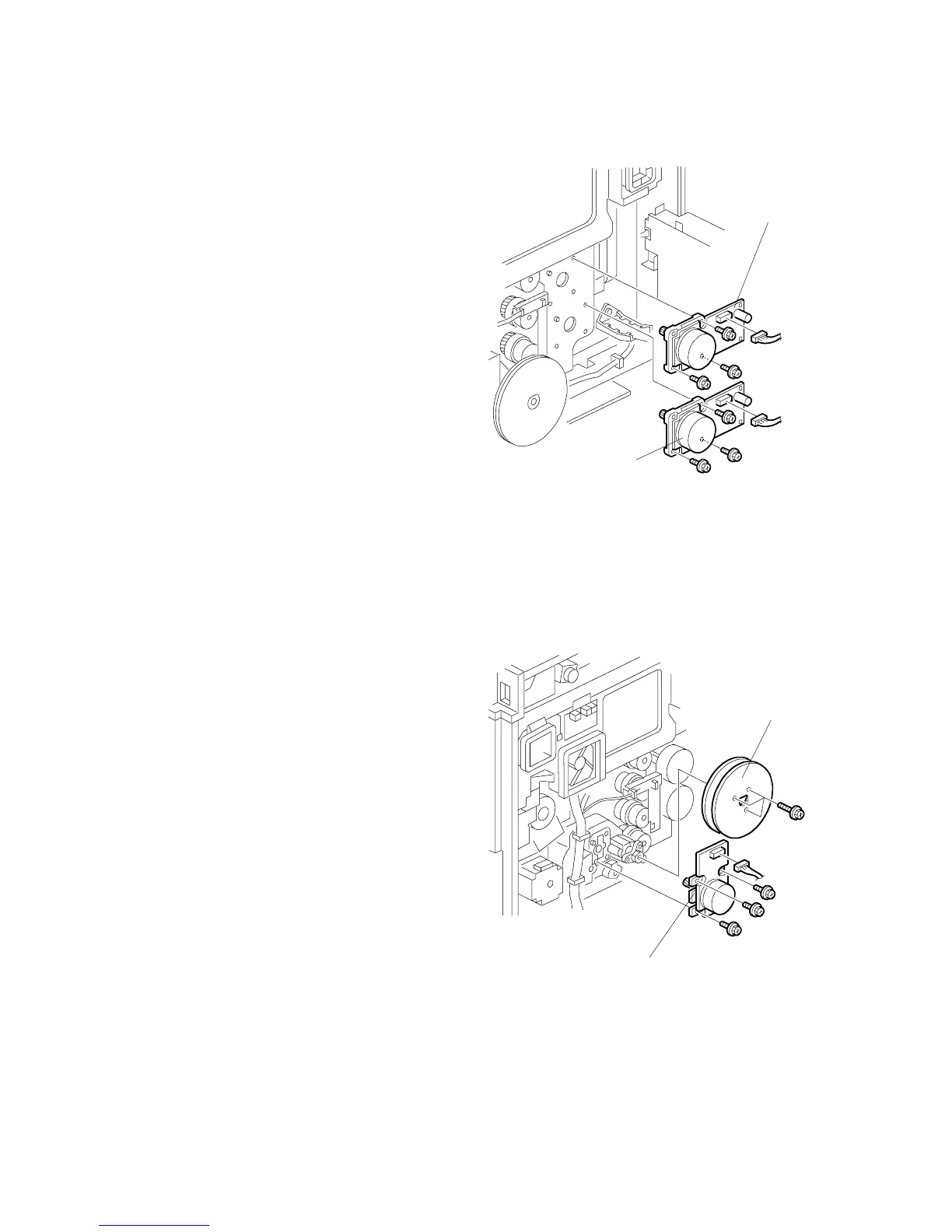

3.11.2 DEVELOPMENT MOTORS
1. Move the controller box, on its
hinge, away from the machine
(3.10.1).
2. Development motor for black and
cyan [A] ( x 1,  x 3)
3. Development motor for yellow and
magenta [B] ( x 1,  x 3)
3.11.3 MAIN MOTOR
1. Move the controller box, on its
hinge, away from the machine
(3.10.1).
2. Flywheel [A] ( x 3)
3. Main motor [B] ( x 1,  x 3)
