Ricoh TH-C1b - Ardf Image Adjustment; ARDF Side-To-Side and Leading Edge Registration

10 February 2005 COPY ADJUSTMENT
3-63
Replacement
Adjustment
3.12.3 ARDF IMAGE ADJUSTMENT
ARDF Side-to-Side and Leading Edge Registration

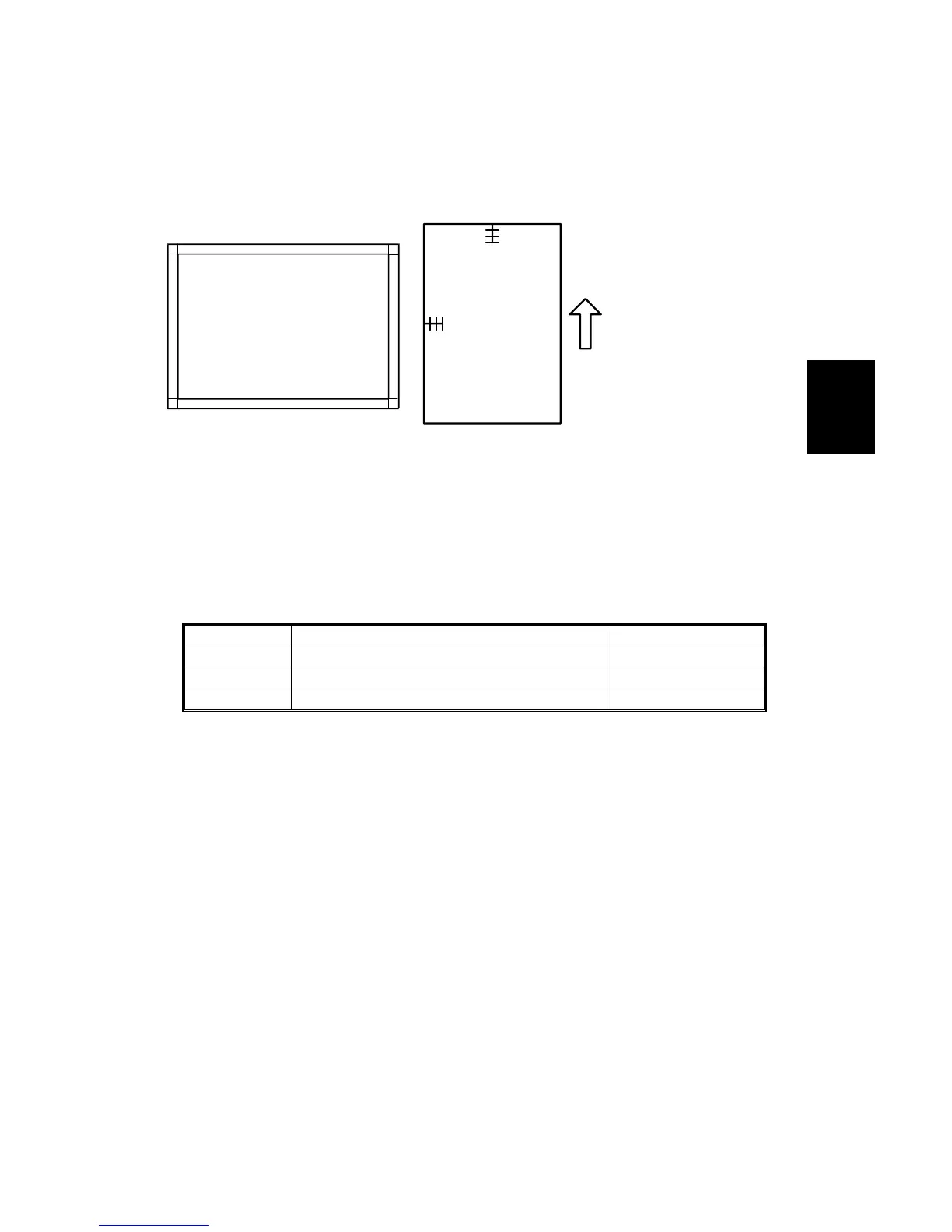

Make a temporary test chart as shown above using A3/DLT paper.
1. Place the temporary test chart on the ARDF and make a copy from one of the
feed stations.
2. Check the registration, and adjust using the following SP modes if necessary.
SP Code What It Does Adjustment Range
SP6-006-1 Main Scan Registration
± 10 mm
SP6-006-2 Sub-Scan Registration (Simplex)
± 10 mm
SP6-006-4 Main Scan Registration (Duplex)
± 10 mm
B
A
B156R294.WMF
B156R295.WMF
A: Sub-registration
B: Main registration
