Ricoh TH-C1b - Aps Output Display (Sp4-301)

10 February 2005 SCANNER SERVICE MODE
5-121
Service
Tables

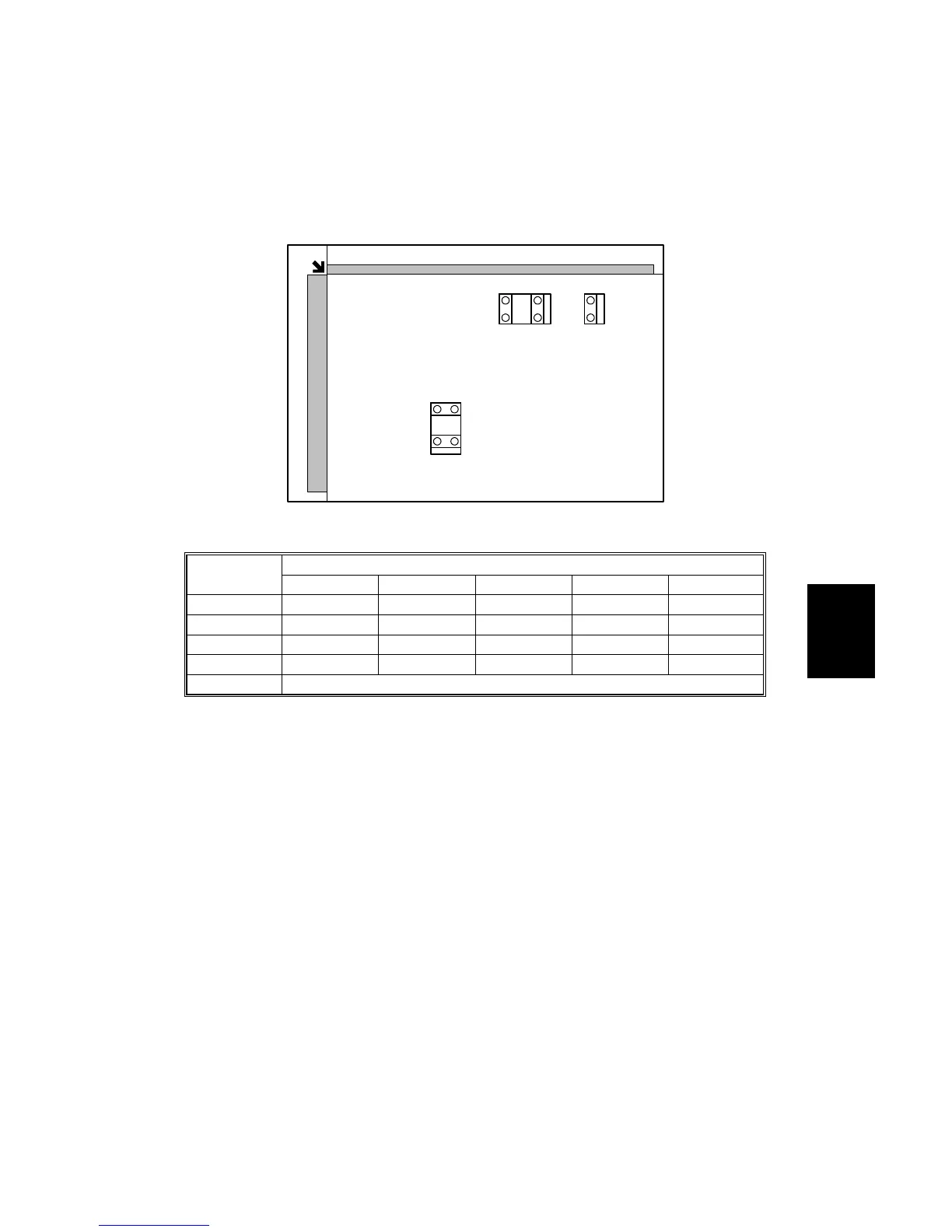

5.3.2 APS OUTPUT DISPLAY (SP4-301)
SP4-301 displays a code that indicates the current status of the APS sensors. The
table lists the codes and the activated sensors.
Sensors
Code
W1 W2 L1 L2 L3
5
P P
— — —
132
P P P P P
165 — —
P P P
133 — —
P P
—
128 Other combinations
P: Activated
—: Deactivated
W1
W2
L3L2L1
B156S540.WMF
