TRAY HEATER 10 February 2005
1-68
1.19 TRAY HEATER
!CAUTION
Unplug the main machine power cord before starting the following
procedure.
1. Remove the connector cover [A] (! x 1).
2. Remove the rear cover [B] (! x 2).
3. Remove the lower rear cover [C] (! x 2).
4. Slide out the 1st and 2nd paper trays.
5. Pass the connector [D] through the opening [E].
6. Install the tray heater assembly [F](! x 1).

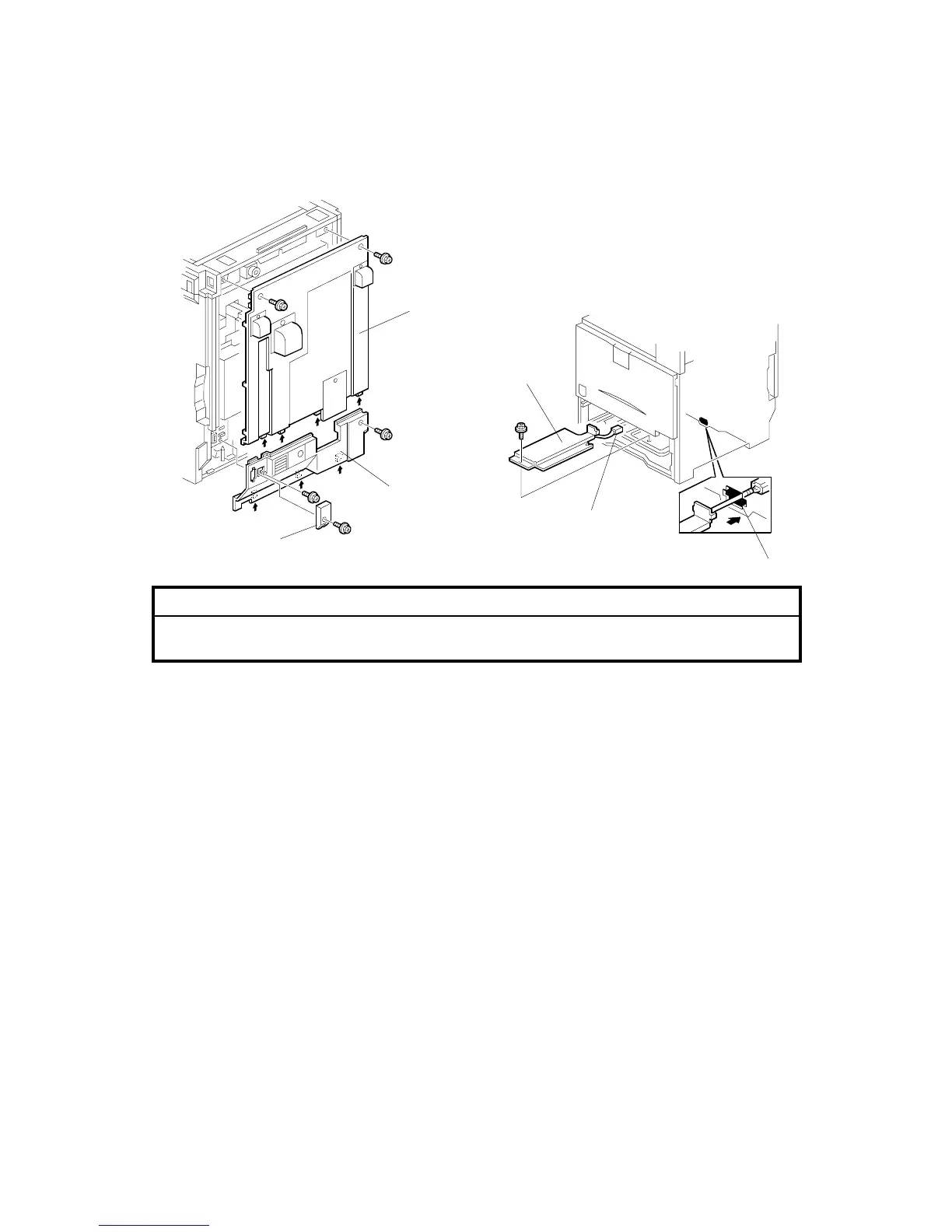

B156I620.WMF
B156I530.WMF
[B]
[D]
[E]
[F]
[A]
[C]
