SCANNER UNIT 10 February 2005
3-8

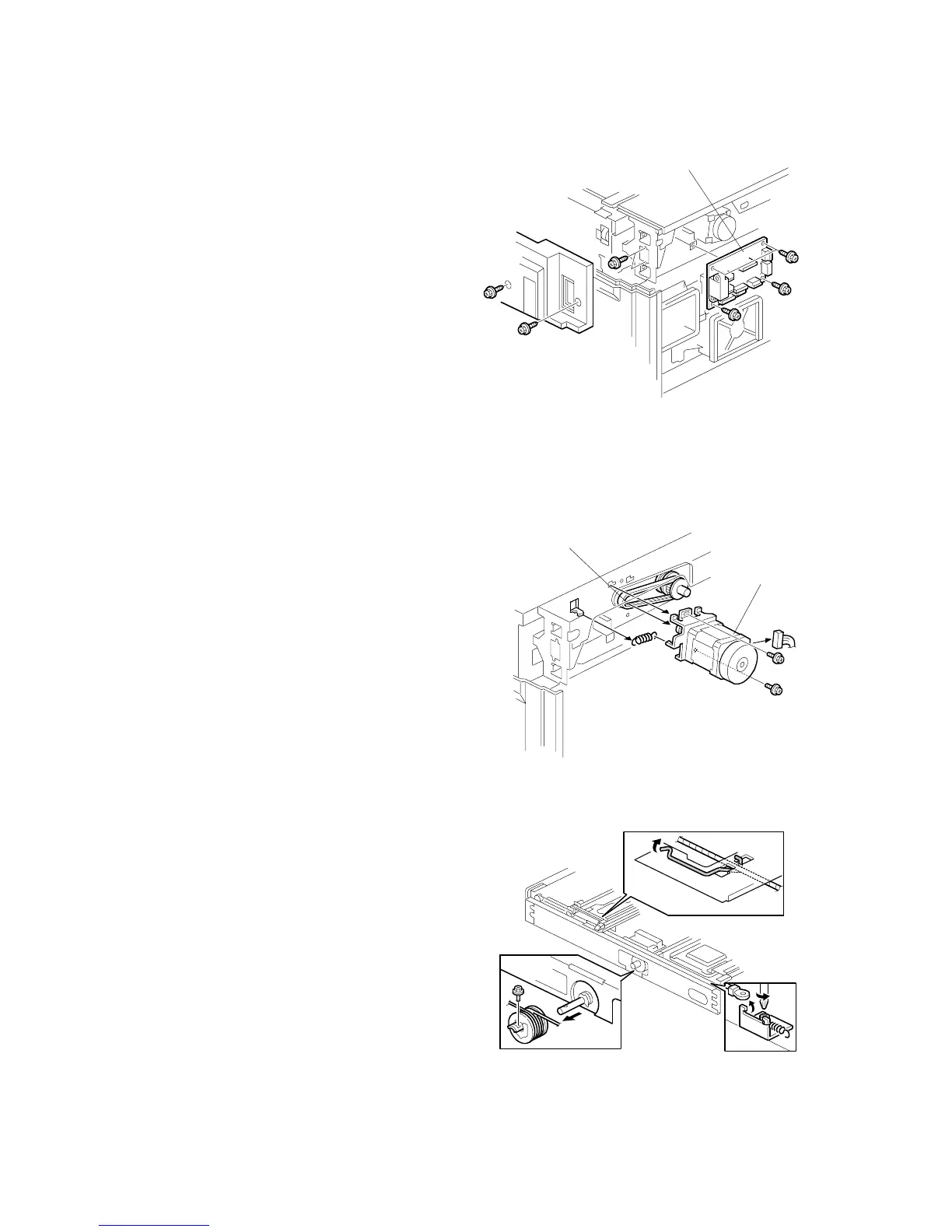

3.3.6 SCANNER I/O BOARD
1. Scanner right cover and scanner
rear cover ( 3.3.5)
2. Scanner I/O board [A]
( x 6,  x 7)
3.3.7 SCANNER MOTOR
1. Scanner I/O board ( 3.3.6)
2. Scanner motor [A] ( x 2, Spring x 1)
3. Timing belt [B]
3.3.8 FRONT SCANNER WIRE
1. Front frame ( 3.3.5)
2. To make reassembly easy, slide the
first scanner to the right
( Reassembling the Front Scanner
Wire).
3. Front scanner wire clamp [A]
4. Front scanner wire bracket [B]
( x 1)
5. Front scanner wire and scanner drive
pulley [C] ( x 1)
B156R006.WMF
B156R008.WMF
B156R226.WMF
[A]
[A]
[B]
[A]
[B]
[C]
