Ricoh TH-C1b - Paper Feed Clutch 2; Registration Clutch

10 February 2005 DRIVE UNITS
3-57
Replacement
Adjustment

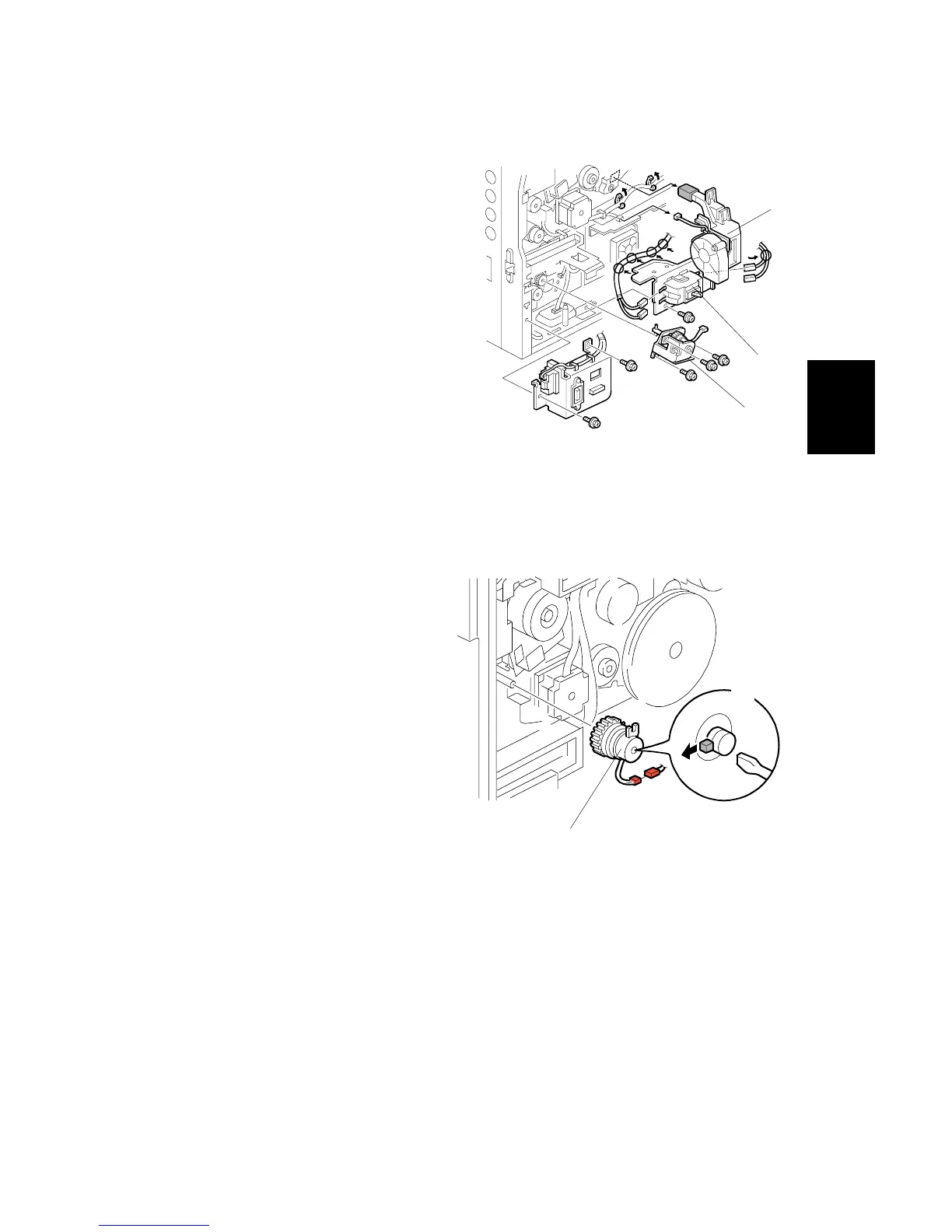

3.11.8 PAPER FEED CLUTCH 2
1. Move the controller box, on its
hinge, away from the machine
(3.10.1).
2. Flywheel ( 3.10.5)
3. Duct [A] with bracket [B]
( x 1,  x 1)
4. Pull out the lower tray.
5. Connector bracket ( 3.11.6)
6. Paper feed clutch assembly [C]
( x 1,  x 3)
3.11.9 REGISTRATION CLUTCH
1. Move the controller box, on its
hinge, away from the machine
(3.10.1).
2. Unhook the lock [A] and pull the
clutch out [B] ( x 1).
B156R812.WMF
B156R290.WMF
[A]
[A]
[B]
[C]
[B]
