BY-PASS FEED UNIT (B490) 10 February 2005
1-34

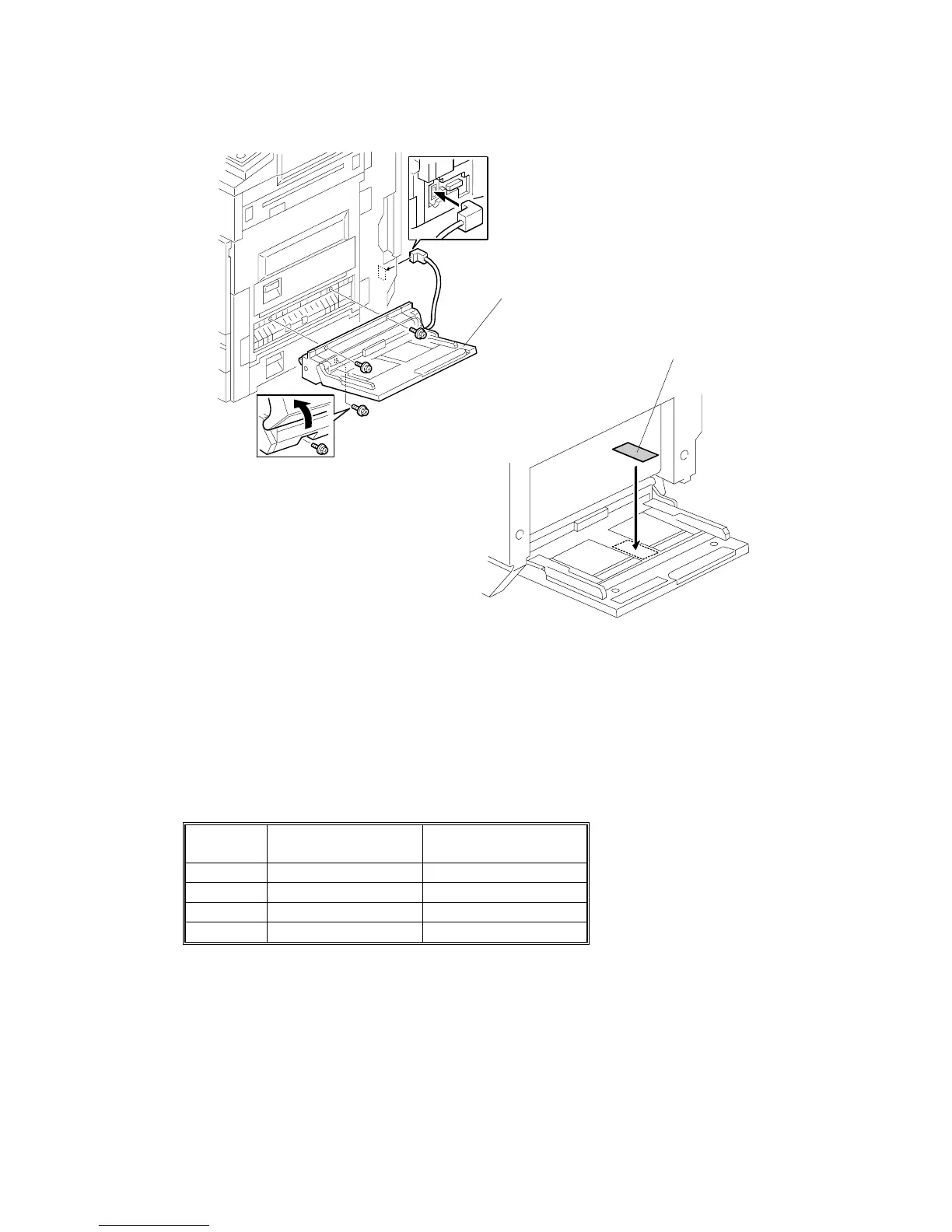

3. Install the by-pass tray unit [A] (! x3, " x1).
4. Attach the decal [B] as shown.
5. Turn the main power switch on and check the by-pass tray function.
6. Go into the SP mode. Change these SP settings.
SP1003
Default
(No By-pass tray)
By-pass tray
installed
001 0 2
002 –2 0
003 –2 0
004 0 2
Make a copy from the by-pass tray. Then check the registration.
