10 February 2005 BRIDGE UNIT (B482)
1-41
Installation

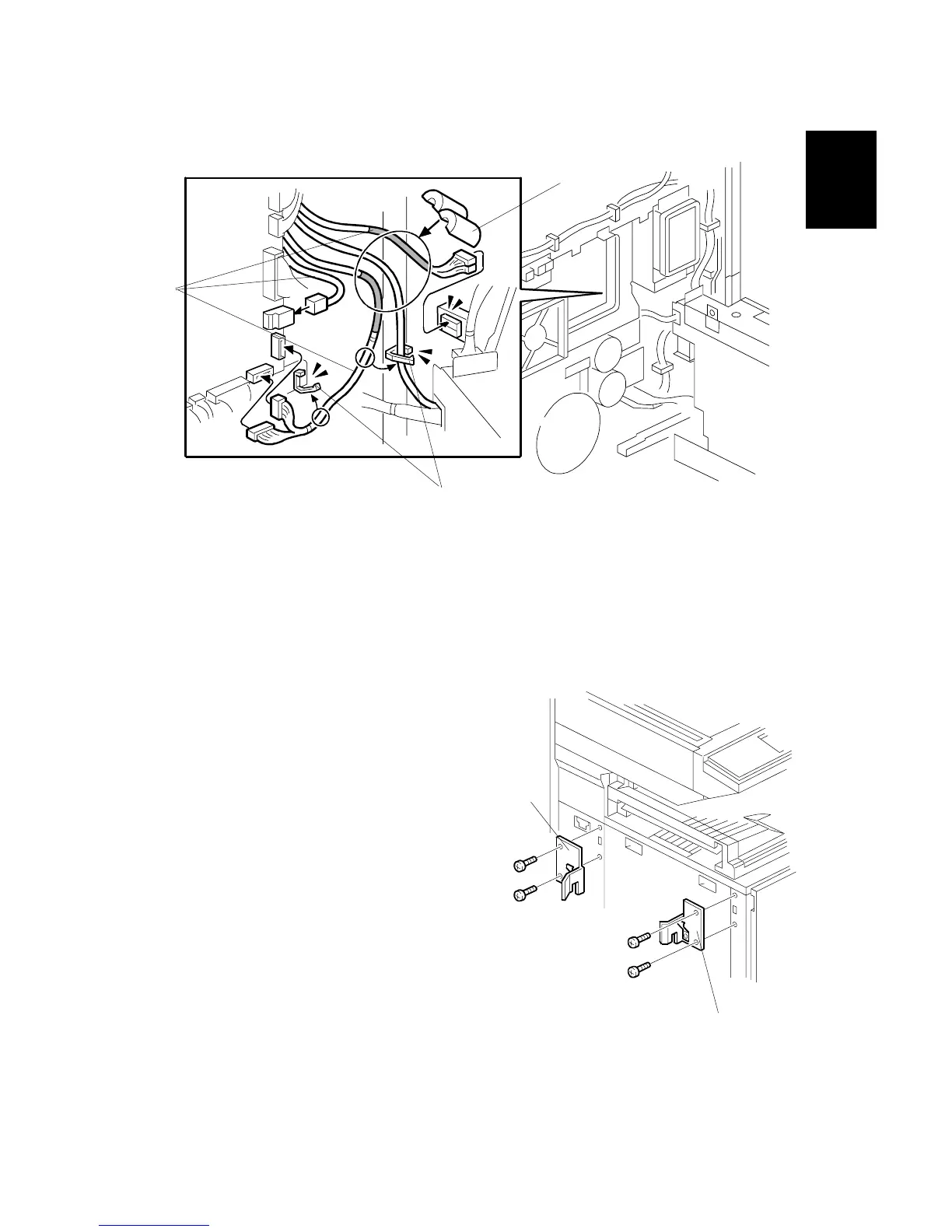

12. Connect the harnesses [A], as shown.
13. Attach the harnesses with clamps [B].
14. Attach the core [C].
NOTE: Make sure that the core does not cause damage to the harnesses.
15. Reinstall the rear cover.
16. When the finisher (Machine code:
B408) will be installed, attach the
front joint bracket [D] and rear joint
bracket [E] (! x2 each).
17. Install the optional finisher (refer to the
finisher installation procedure).
B482I206.WMF
B482I105.WMF
[A]
[C]
[B]
[E]
[D]
