1000-SHEET FINISHER (B408) 10 February 2005
1-44

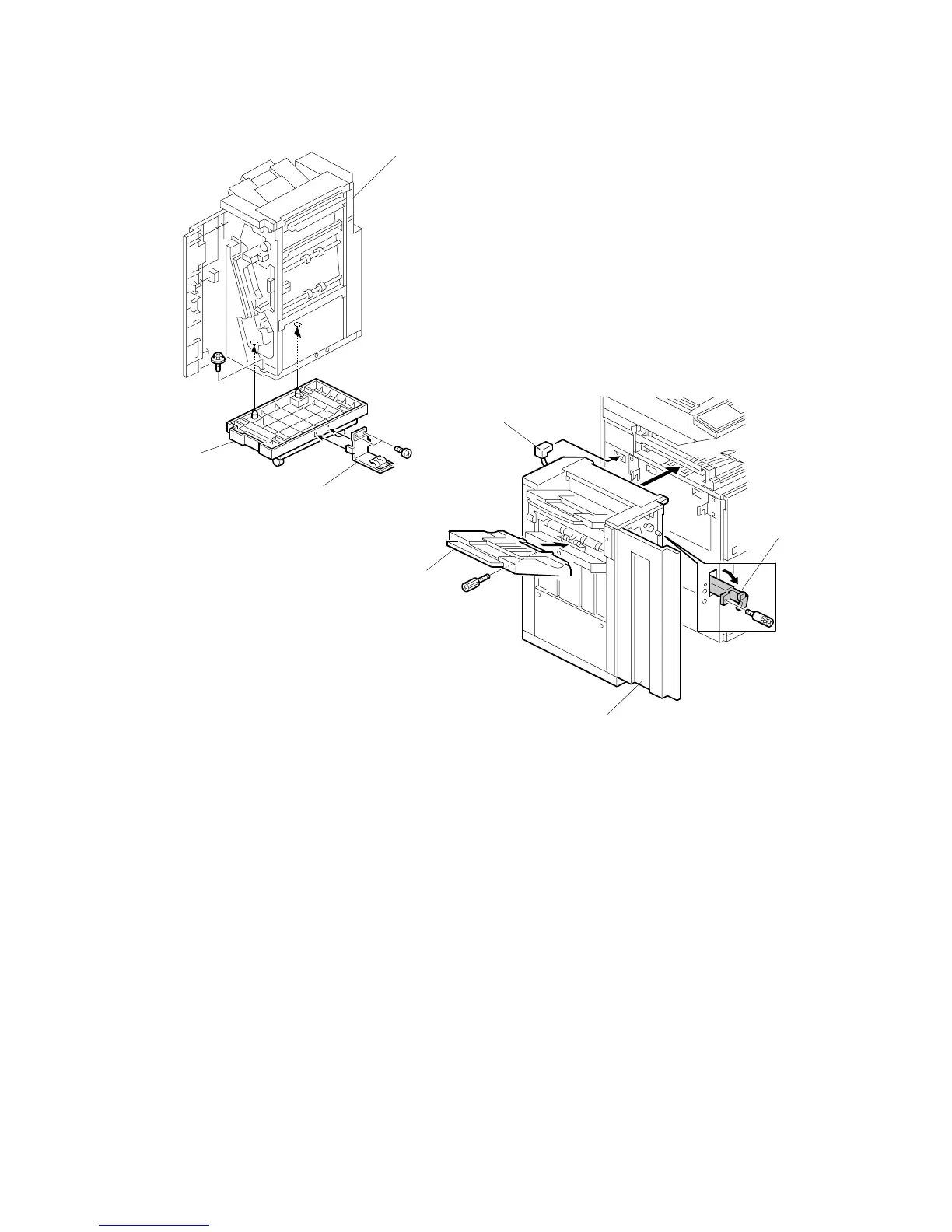

2. Unpack the adjustment table (B488).
3. Set the finisher [A] on the adjustment table [B] and secure the finisher
(! x 1).
4. Install the grounding plate [C] which is in the accessory box for the adjustment
table (! x 2).
5. Open the front door [D], then pull the locking lever [E].
6. Align the finisher on the joint brackets, and lock it in place by pushing the
locking lever.
7. Secure the locking lever (1 knob screw - M3 x 8) and close the front door.
8. Install the copy tray [F] (1 knob screw - M4 x 10).
9. Connect the finisher cable [G] to the main machine.
