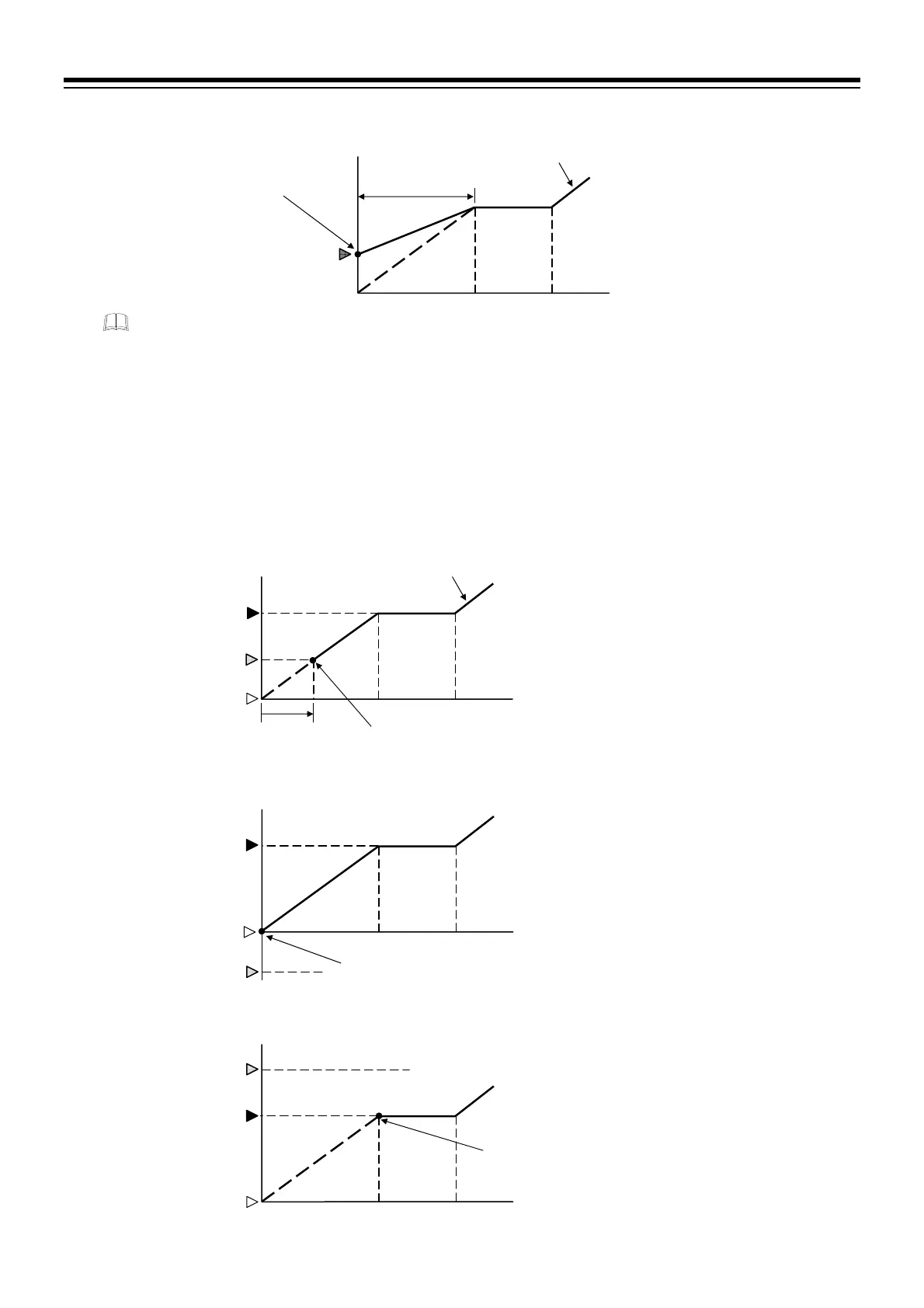

 PV start 1 [Time fixed type]
Actions when the Measured value (PV) at start exceeds the input range:
 Measured value (PV)  Input range high: Starts from the Input range high.
 Measured value (PV)  Input range low: Starts from the Input range low.
 PV start 2 [Time saving & ramp holding type] (Factory set value)
Start point varies by Measured value (PV) at start, Segment level of Segment 1 and Set value (SV) in the
Reset mode.
 When Set value (SV) in the Reset mode is smaller than the Segment level of the
Segment 1
 Set value (SV) in the Reset mode  Measured value (PV)  Segment level of Segment 1
 Set value (SV) in the Reset mode
 Measured value (PV)
 Segment level of Segment 1
 Measured value (PV)
Start at the same level of
the Measured value (PV) at
start.
Time
Level
Measured value (PV)
Time-fixed
Segment 1
Program pattern
Time
Level
Measured value (PV)
Forward the time of process to the same level of the Set
value (SV) of the Measured value (PV) at start.
Time-saving
Segment level of
Segment 1
Set value (SV) in
the Reset mode
Program pattern
Start with the Set value (SV) in the Reset mode.
Time
Level
Segment level of
Segment 1
Measured value (PV)
Set value (SV) in
the Reset mode
Time
Level
Start with the Segment level of the Segment 1.
Measured value (PV)
Segment level of
Segment 1
Set value (SV) in
the Reset mode
