4. BASIC OPERATION
IMR02L04-E3
4-45
PV
F21.
M:S SV
FIX000RDINP

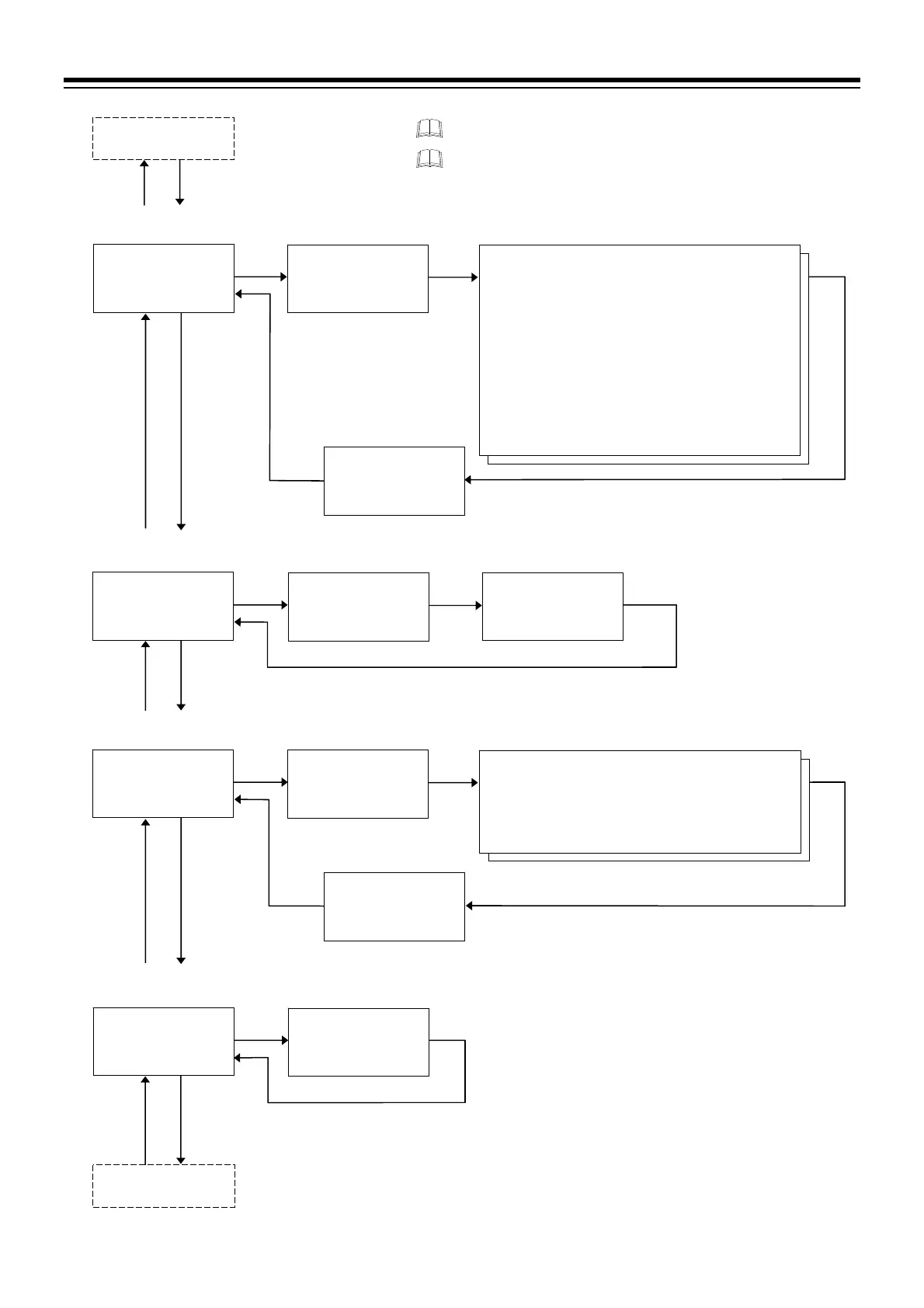

Function block 21
(F21.)

PV
KTINP
M:S SV
F21.01R 00001
Input type
PV
L-CUT
M:S SV
F21.15R 000.00
PV low input cut-off
F21.02: Display unit
F21.03: Decimal point position
F21.04: Input range high
F21.05: Input range low
F21.06: Input error determination point (high)
F21.07: Input error determination point (low)
F21.08: Burnout direction
F21.09: Square root extraction
F21.10: Power supply frequency
F21.11: Sampling cycle
F21.12: PV bias
F21.13: PV digital filter
F21.14: PV ratio




Function block 32
(F32.)
PV
F23.
M:S SV
FIX000RDKDI
Function block 23
(F23.)

PV
K DISL
M:S SV
F23.01R 00000
Digital input (DI)
assignment



Setting parameters from F21.02 to F21.14
PV
F30.
M:S SV
FIX000RDOUT
Function block 30
(F30.)

PV
EXOUT
M:S SV
F30.01R 00000
OUT2, OUT3
Energized/De-energized
PV
P.E D.E V
M:S SV
F30.08R 00000
Event action
at Pattern end
F30.02: DO1 to DO4 Energized/De-energized
F30.03: DO5 to DO8 Energized/De-energized
F30.04: DO9 to DO12 Energized/De-energized
F30.05:
Transmission output action in Reset mode
F30.06: Event action in Reset mode
F30.07:
Transmission output action at Pattern end




Setting parameters from F30.02 to F30.07
PV
F31.
M:S SV
FIX000ROUT1
Function block 31
(F31.)

PV
LOGC1
M:S SV
F31.01R 00000
OUT1 assignment





Function block 11
(F11.)
PV
DIPTN
M:S SV
F23.02R 00000
Pattern input method
of Digital input (DI)

Press the STEP R.SET key to go back to the previous display.
Press the STEP R.SET key while pressing the

key to go
back to the first setting display of the function block.


(P. 4-33)
(P. 4-35)
(P. 4-35)
(P. 4-36)
