R&S ESCI Tracking Generator - Option R&S FSP-B9
1166.6004.12 4.283 E-1
Frequency-Converting Measurements
For frequency-converting measurements (eg on converter units) the tracking generator is able to set a
constant frequency offset between the output frequency of the tracking generator and the receive
frequency of the R&S ESCI.
Up to an output frequency of 150 MHz the measurement can be carried out in both inverted and normal
positions.
0
123
45
6
789
.
-
ESC
1142.8007.03
FCTN
ENTER
CANCEL
GEN OUTPUT 50
Ω
ΩΩ
Ω
AF OUTPUT
MEAS TR IG
FREQ
MKR
AMPT
SPAN
MKR
MKR
BW SWEEP
TRACE
LINES
DISP
FILE
GHz
MHz
kHz
Hz
-dBm
dBm
dB
dB..
CAL
SETUP
PRESET
HCOPY
TEST RECEIVER 9kHz . . . 3GHz
..
ESPI
BACK
s
V
m
s
mV
µ
s
µ
V
n
s
nV
PREV
RF INPUT
50
EXT MIXER
MA
X
+30 dB m / 50V DC
NEXT
KEYBO ARDPROBEPOWER
MAX 0V DC
MADE IN GERMANY
.
Ω
ΩΩ
Ω
RF
INPUT
GEN
OUTPUT
DUT

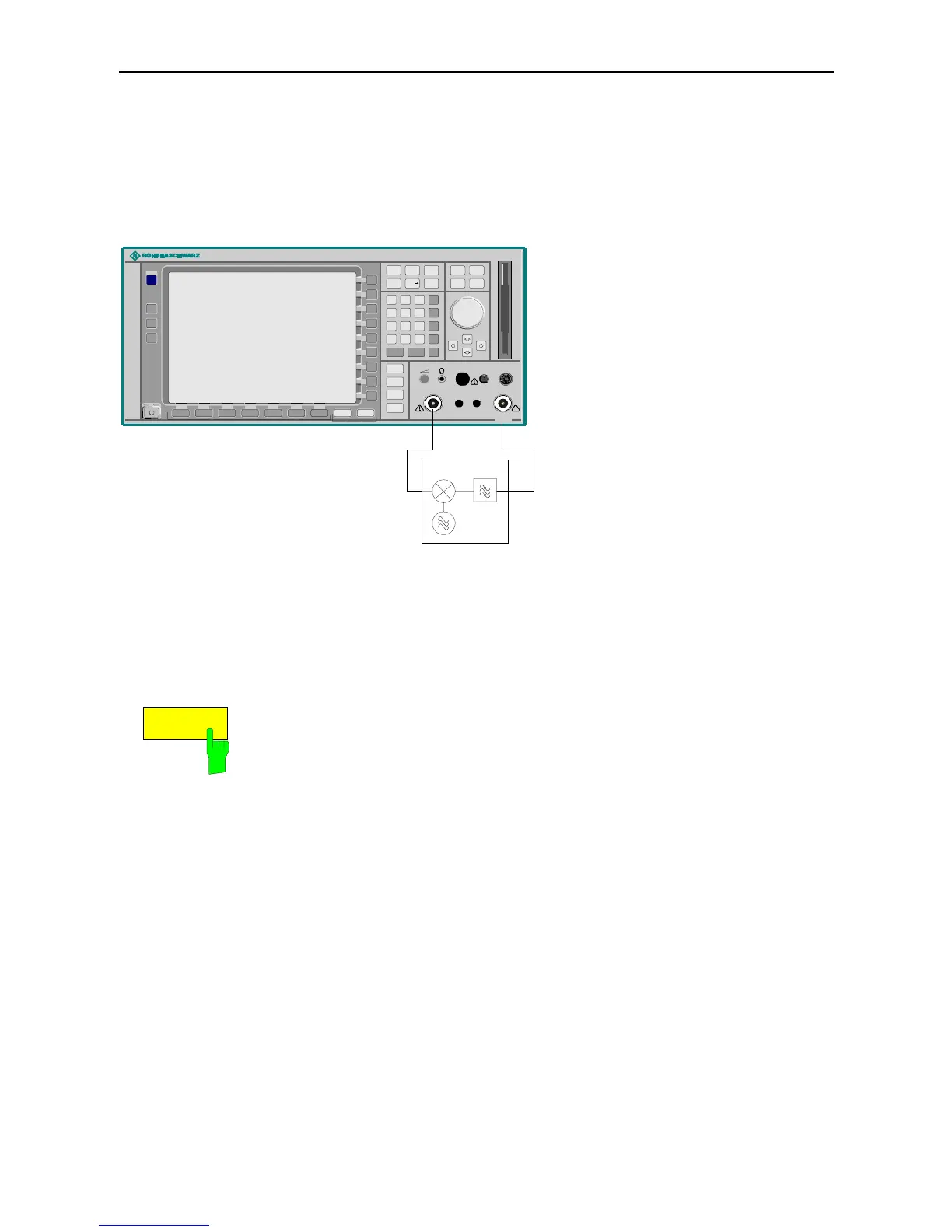

Fig. 4-32 Test setup for frequency converting measurements
NETWORK menu
FREQUENCY
OFFSET
The FREQUENCY OFFSET softkey activates the input of the frequency
offset between the output signal of the tracking generator and the input
frequency of the R&S ESCI. Possible offsets are in a range of ±150 MHz in
0.1 Hz steps.
The default setting is 0 Hz. Offsets <> 0 Hz are marked with the
enhancement label FRQ.
If a positive frequency offset is entered, the tracking generator generates
an output signal above the receive frequency of the R&S ESCI. In case of a
negative frequency offset it generates a signal below the receive frequency
of the R&S ESCI. The output frequency of the tracking generator is
calculated as follows:
Tracking generator frequency = receive frequency + frequency offset.
IEC/IEEE-bus command: SOUR:FREQ:OFFS 50MHz
