Normalization
NETWORK-SOURCE CAL menu:
NORMALIZE
The NORMALIZE softkey switches the normalization on or off. The softkey
is only available if the memory contains a correction trace.
It is possible to shift the relative reference point within the grid using the
REF VALUE POSITION softkey. Thus, the trace can be shifted from the
upper border of the grid to the vertical center of the grid:

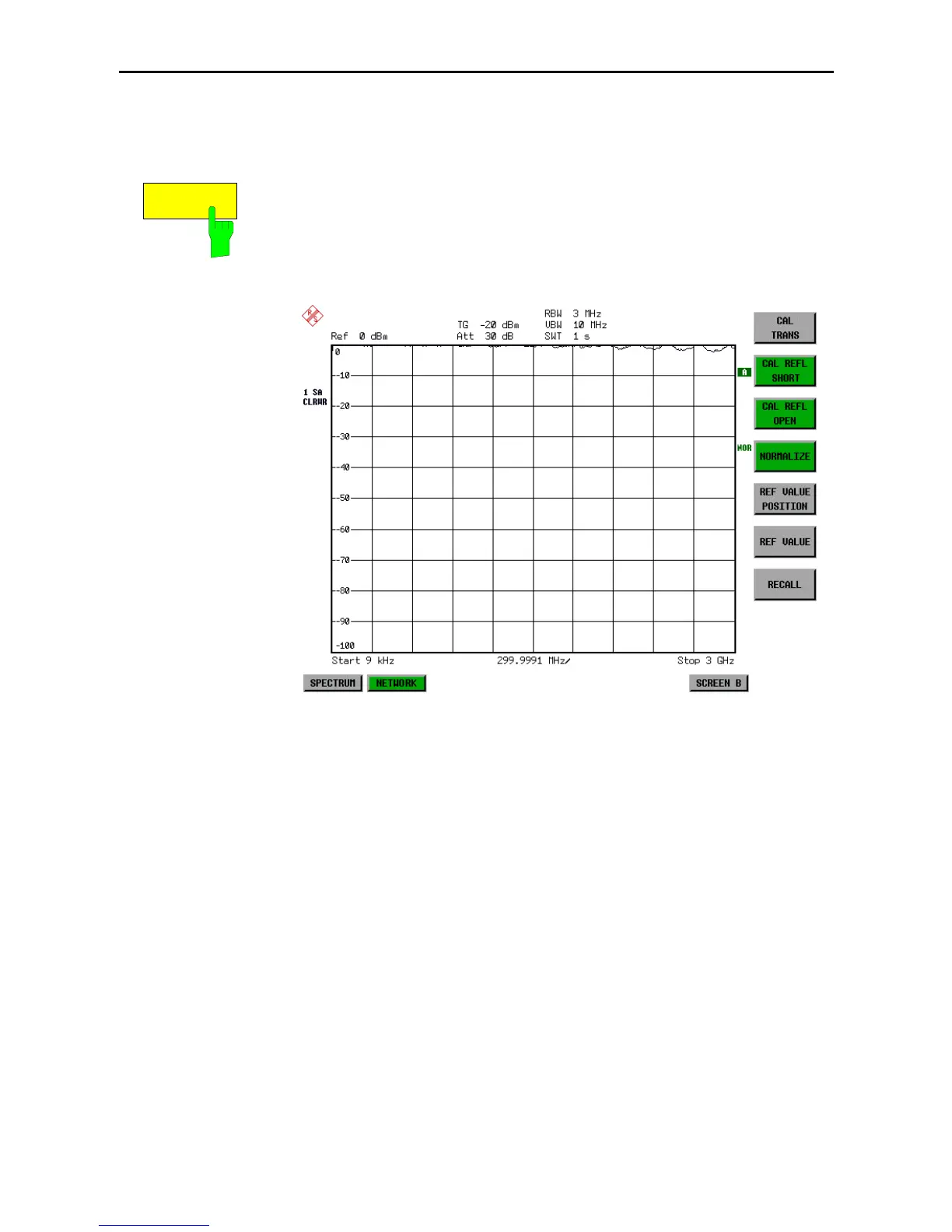

Fig. 4-27 Normalized display
In SPLIT SCREEN operation, the normalization is switched on in the
currently active window. Different types of normalization can be active in the
two windows.
Normalization is aborted when the NETWORK operating mode is quit.
IEC/IEEE-bus command: CORR ON
