rotork p3 - Fig 9: P3 W Coordinator, P3 W WMA and P3 W Repeater Mounting Details

1. Mounting and Connecting the Master Station
Issue 06/15 Publication PUB059-002-00 11 of 136
Wireless installations will include a P3W Coordinator and may include P3W Repeaters and P3W
Wireless Modbus Adaptors (WMA). These units are identical with regards to mechanical fixing.
Dimensions in mm, Module weight: 4,400g

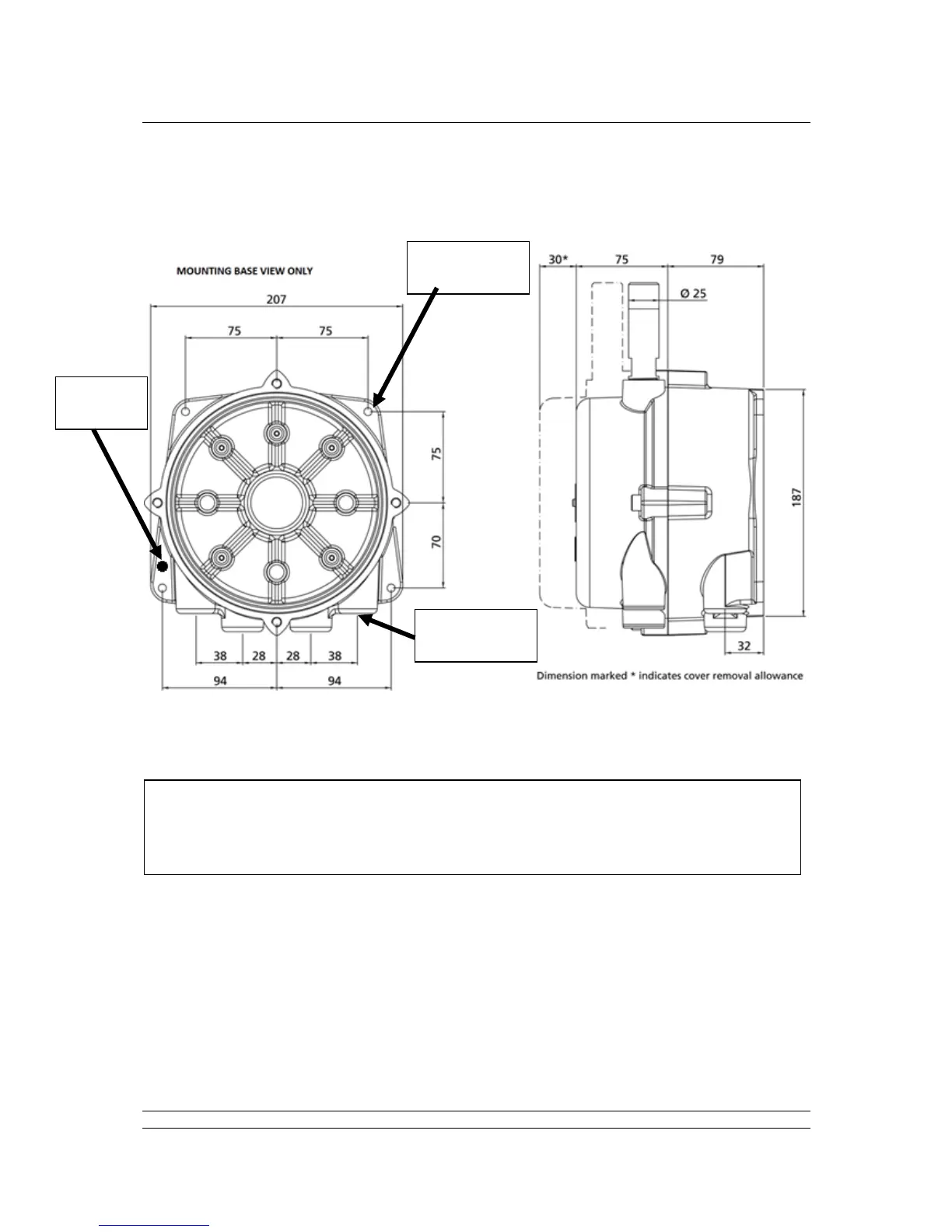

Fig 9: P3W coordinator, P3W WMA and P3W Repeater mounting details
The P3W Coordinator, P3W Repeater and P3W wireless Modbus Adaptor
may be located in Hazardous locations. If this is the case, please refer to
the Hazardous Area notes in the General Safety Information section at the
back of this manual.
4 off: 6.5mm
diameter mounting
holes
All cable entry
threads are M25 x
1.5p
External
Earth
connection
