7.5.14 FCU Control - General Purpose Field Control Unit (2-wire loop only)

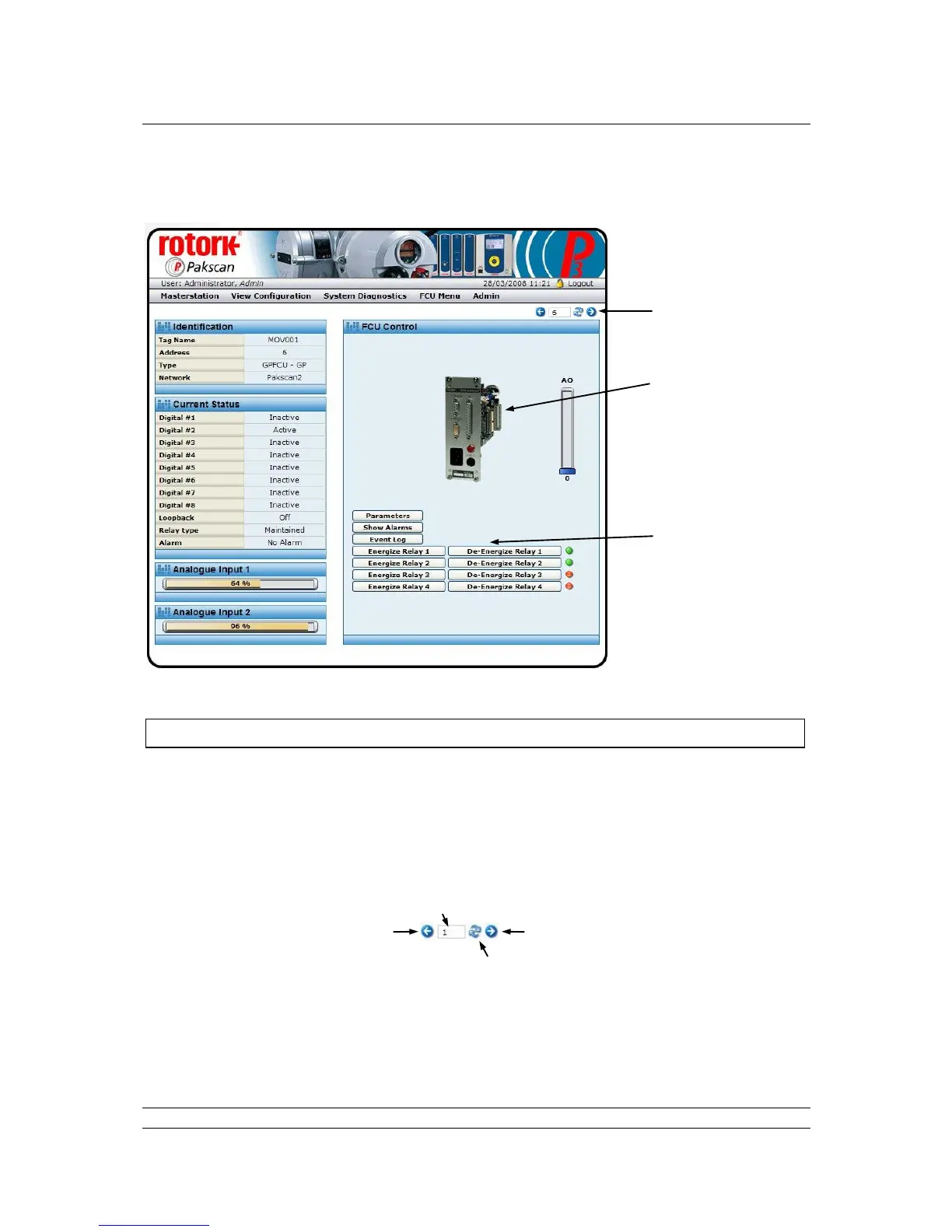

Fig 64: GPFCU Control web page
The GPFCU Control screen shows a control and status page for a general purpose field control unit.
The screen has information relating to the device, its current condition and system parameters.
Control of the outputs is permitted via the control buttons for users with write level access or higher.
When not in communication, the screen may still be visited, but the picture has a large red cross over
it to show that a problem exists.
Navigation
Navigation between the field units is either by returning to the previous screen, or by using the
navigation buttons on this screen. Entering an address directly in the ‘Address’ box and clicking
Refresh moves directly to the selected field unit.
This screen is accessible to Read, Write and Administrator user levels.
Device picture
(shows rack mounted
version)
Controls
Navigation
Next
Previous
Address
Refresh
