Type : The type of field unit depends on the actuator and function required.
Current types are -
IQ - IQ or IQT actuator
Integral - Non IQ actuator
Flowpak - Flowpak actuator
GPFCU - GP - General Purpose Field Unit
GPFCU - Act - General Purpose in Actuator mode
IQA - IQ Analogue card
ROMpak - ROMpak actuator
Tag Name : The associated identification Tag assigned to this field unit.
7.5.8 Pakscan Wireless Diagnostics [diagnostics]

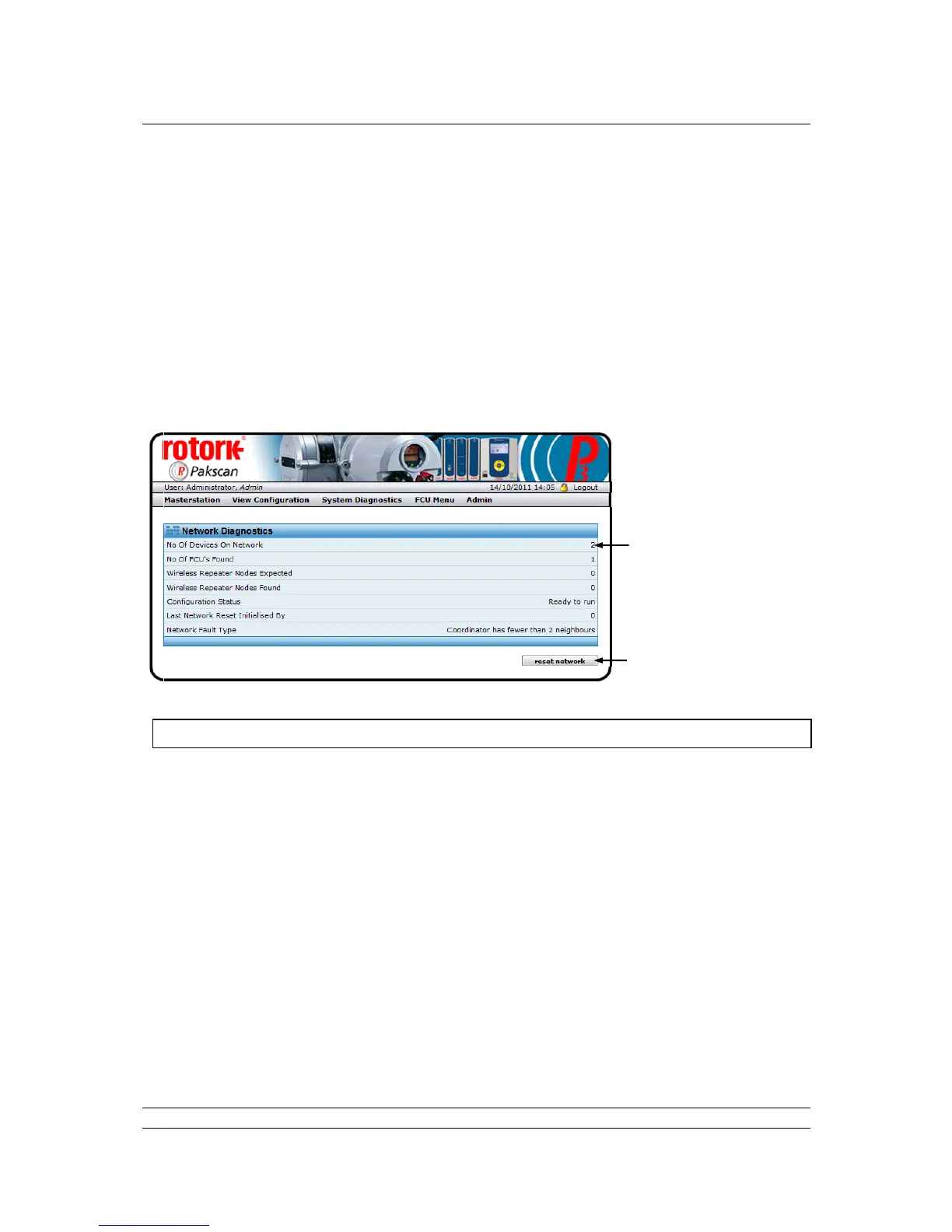

Fig 46: Pakscan Wireless Diagnostics web page
The Pakscan Wireless Diagnostics screen gives diagnostic information on the wireless option module
and the network connected to it.
No of Devices
On Network
:
This is the number of wireless field units that are expected to be
located on the network. This is set up in the master station
configuration web page.
No of FCUs
found
:
This is the total number of field units found on the network. If all the
field
units are powered on and able to communicate, the number will equal
the number expected on the network.
Wireless
repeater nodes
expected
:
This is the number of P3W repeater modules that are expected to be
located on the network. This is set up in the master station
configuration web page.
Network Information
Controls
This screen is accessible to Read, Write and Administrator user levels.
