7.5.13 FCU Control - Integral Actuator (2-wire loop only)

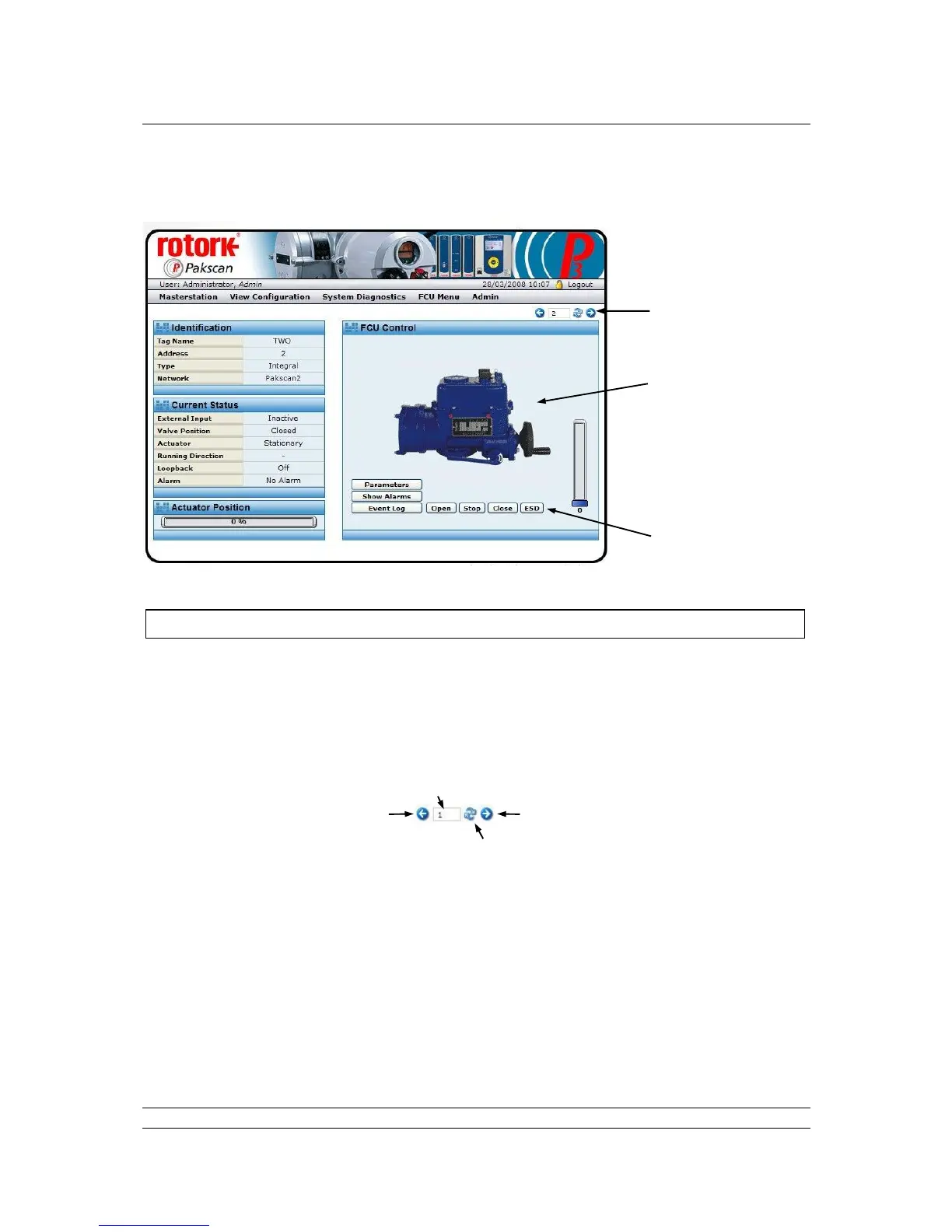

Fig 60: Q actuator FCU Control Web page
The Integral actuator FCU Control screen shows a control and status page for a Q type actuator. The
screen has information relating to the device, its current condition and system parameters. Control of
the actuator is permitted via the control buttons for users with write level access or higher. When not in
communication, the screen may still be visited, but the picture has a large red cross over it to show a
lack of communication.
Navigation
Navigation between the field units is either by returning to the previous screen, or by using the
navigation buttons on this screen. Entering an address directly in the ‘Address’ box and
clicking Refresh moves directly to the selected field unit.
Identification
Tag name : Identification tag given for this device.
Address : Network address.
Type : Shows the identified actuator type as Q.
Network : The network to which this device is connected (Pakscan 2 for 2-wire loop).
