P3 - Pakscan Master Station Technical Manual
88 of 136 Publication PUB059-002-00 Issue 06/15
Show Alarms - Available to all user levels

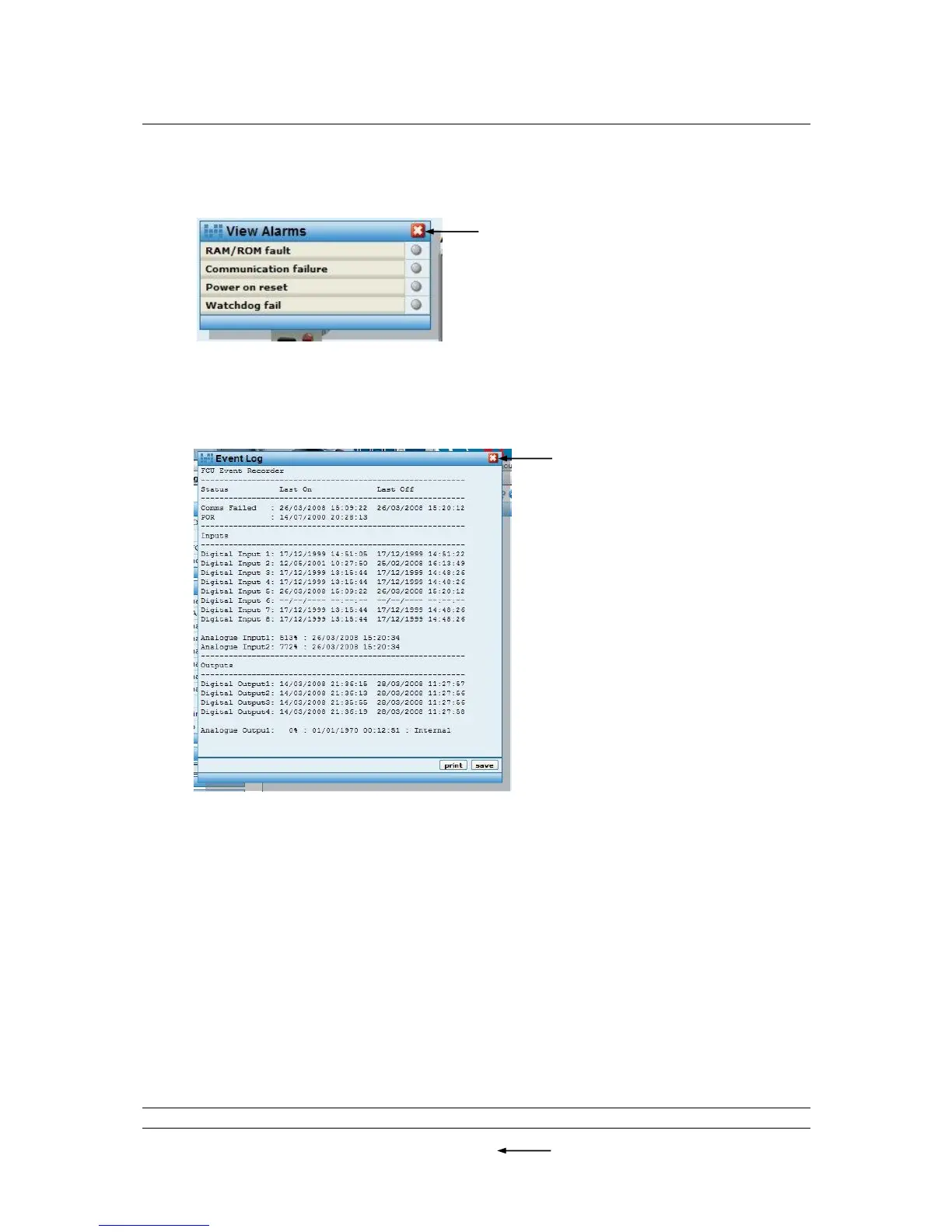

Fig 66: GPFCU Alarms pop-up
Pop-up screen shows the alarms on the actuator as red lights; grey is no alarm.
Event Log - Available to all user levels
Fig 67: GPFCU Event Log pop-up
Pop-up screen showing a log of the last occasion on which the various alarms, input and
output events occurred. For commands, the source of the command is also given.
Comms Failed - loss of communication with the field unit.
POR - power on reset.
Digital Input 1-8 - when turned on and off.
Analogue I/P 1-2 - when last updated.
Digital Output 1-4 - when energised and de-energised.
Analogue Output - when last altered and by which source.
Controls
Print : Prints the logger data to a printer attached to the computer.
