7. Internal Web pages
Issue 06/15 Publication PUB059-002-00 65 of 136
7.5.7 Pakscan 2 Loop Diagnostics [diagnostics]

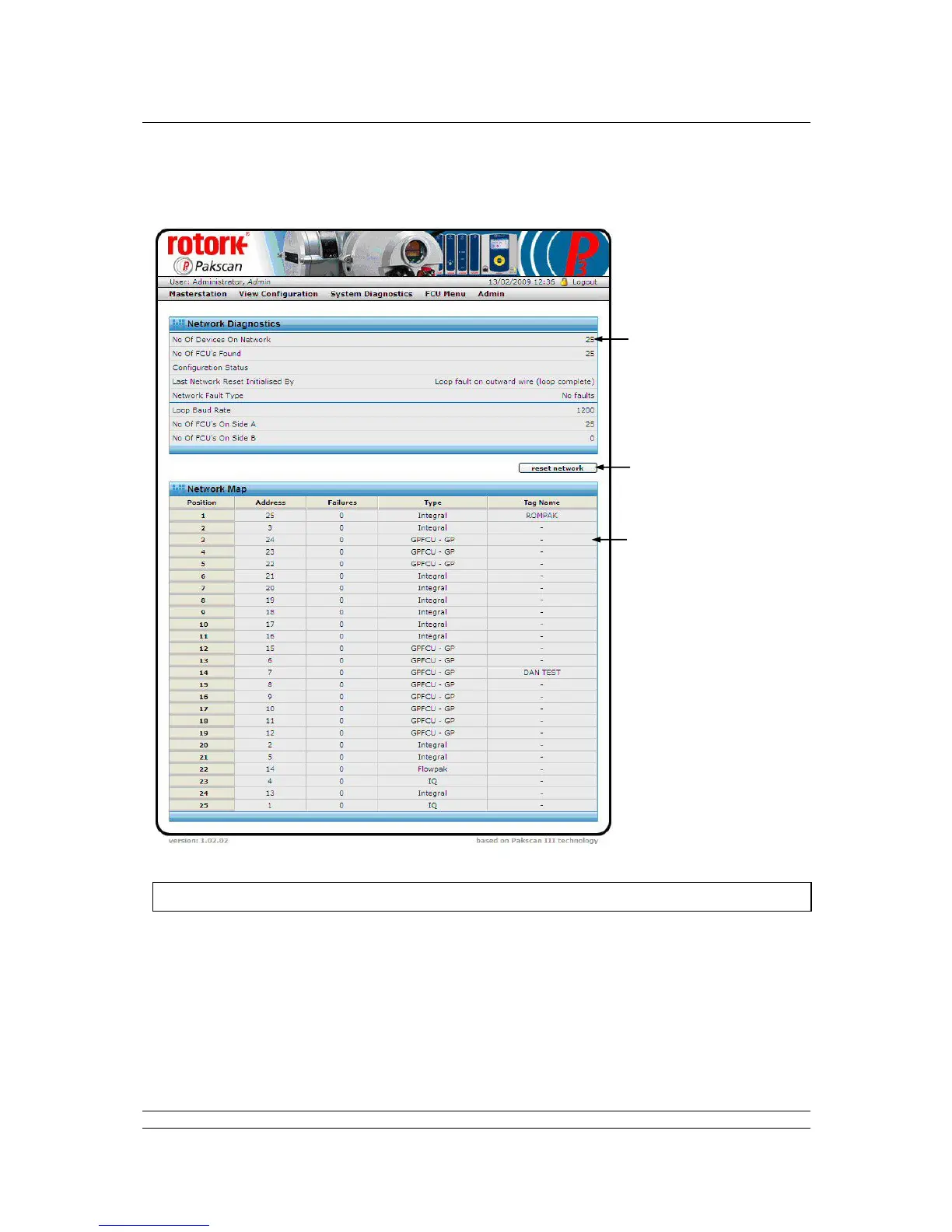

Fig 45: Pakscan 2 Loop Diagnostics web page
The Pakscan 2 Loop Diagnostics screen gives diagnostic information on the 2-wire loop option module
and the network connected to it. The top part of the screen shows the information about the option
module itself, whilst the lower part shows the loop map. This is the order in which the field units on the
2-wire loop are connected. It also shows the device type and tag name for each address and position.
Network Information
Controls
Network FCU Map
This screen is accessible to Read, Write and Administrator user levels.
