6. SETTING UP THE MASTER STATION BY THE KEYPAD
The Pakscan 3 master station CPU module has a full colour display and 5 button input pad. All the
settings for the performance of the master station, the Option module fitted and the Field Network can
be made using these facilities. The keypad and screen also allows every connected actuator to be
interrogated and its status monitored. Finally, the actuators and valves can be moved using these
facilities.
Alternatively, a computer with an Internet browser facility can be used with the internal web server
pages. These pages allow the whole system to be set up and modified. In addition, they allow the
connected actuators to be viewed and controlled.

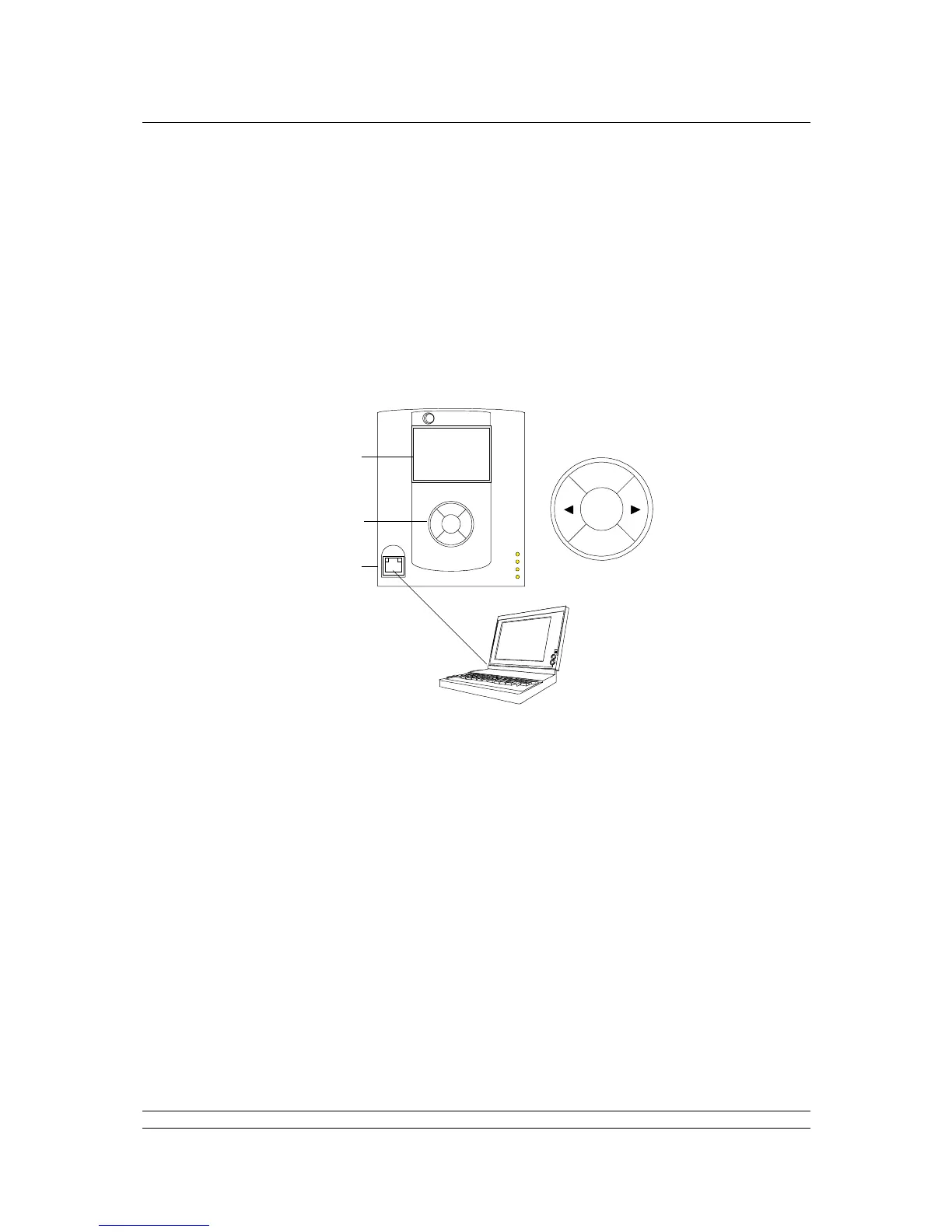

Fig 32: Pakscan P3 Main module connection to laptop and keypad detail
6.1 Using the Keypad
The keypad controls the movement through the display screens and the movement within each
screen, as well as the ability to input data or requests.
(Left) and (Right) arrow keys Allow active items within a page display to be highlighted.
If the item is selected and a numeric input is needed,
then these keys increase or decrease the number.
ENTER Selects a highlighted element on the screen or completes
the entry of information.
BACK and NEXT BACK moves up one level in the menu of the displays,
returning to the previous screen viewed. NEXT only
functions if there is more data to show than fits on the
screen. When there is additional data, a small arrow is
shown on the right side of the screen. It points down ()
for NEXT and up () for BACK to operate.
