P3 - Pakscan Master Station Technical Manual
74 of 136 Publication PUB059-002-00 Issue 06/15
Identification
Tag name : Identification tag given for this device.
Address : Network address.
Type : Shows the identified actuator type as IQ or IQT.
Network : The network to which this device is connected (Pakscan 2 for 2-wire loop).
Current Status
The real-time status of the actuator is listed in this pane on the screen:
Auxiliary Input : Active or Inactive, shows the status of the input.
1 to 4
Valve Position : Current position, Closed, Open or Stopped Mid Position.
Actuator : Moving or Stationary.
Running direction : Opening or Closing.
Loopback : Off or On.
Battery Status : OK or Low.
Alarm Status : No Alarm or Alarm.
Actuator Position
A bar graph shows the current actuator analogue position between 0 (closed) and 100%
(open).
Instantaneous Torque
A bar graph shows the current torque value between 0 and 120% of actuator rated torque.
FCU Control web page Controls
Parameters (2-wire loop Field unit) - Available to all user levels

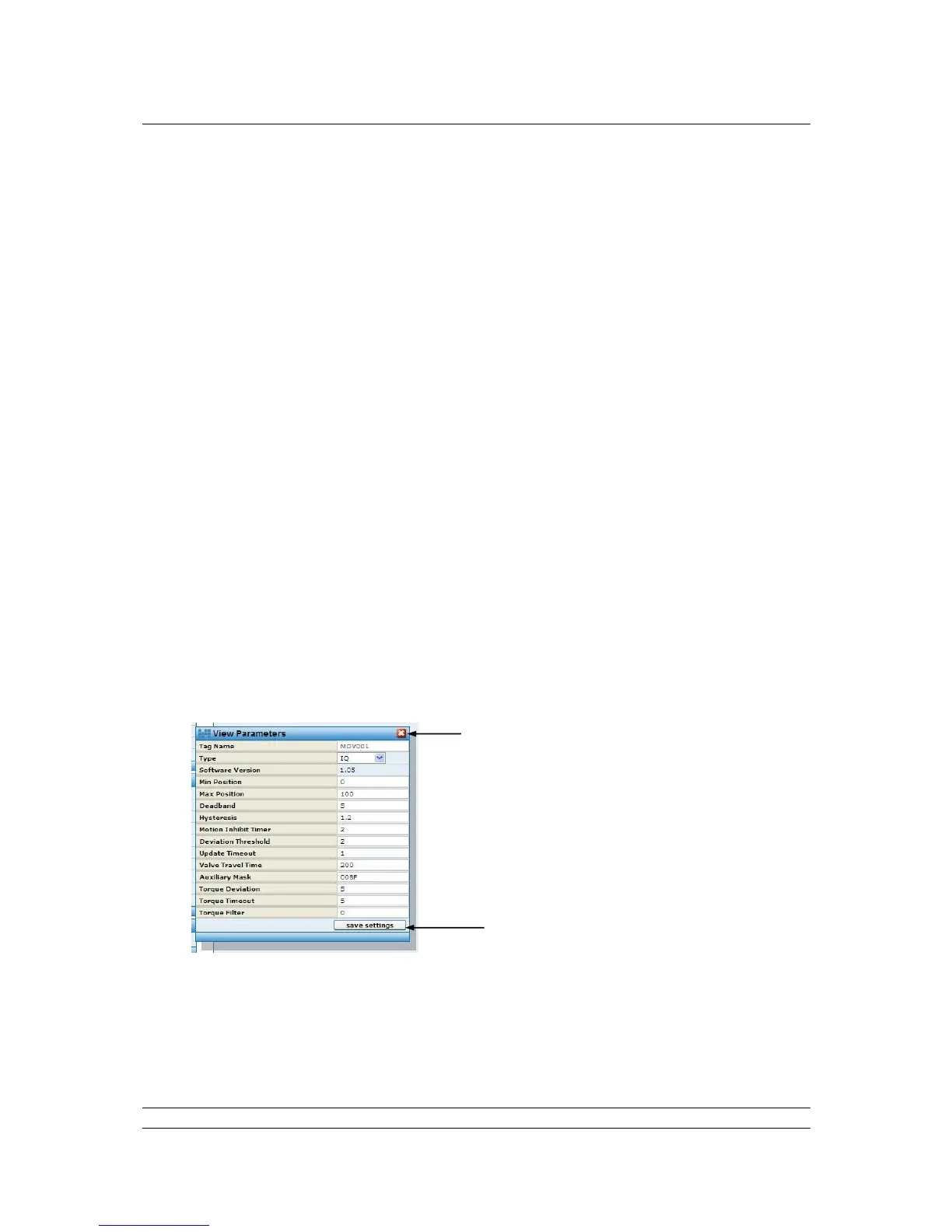

Fig 51: Wired IQ / IQT Parameters pop-up
Pop-up screen shows the settings for all the parameters relating to the IQ / IQT actuator field
unit. For users with Administrator level rights, the values can be edited and, for later version
field units, the type of actuator can be modified. The parameters are used to determine the
way in which the actuator responds to commands and reports data. Information on how to set
