7. Internal Web pages
Issue 06/15 Publication PUB059-002-00 83 of 136
Current Status
The real time status of the actuator is listed in this pane on the screen:
External Input : Active or Inactive, shows the status of the input.
Valve Position : Current position, Closed, Open or Stopped Mid-Position.
Actuator : Moving or Stationary.
Running Direction : Opening or Closing.
Loopback : Off or On.
Alarm Status : No Alarm or Alarm.
Actuator Position
For actuators fitted with position feedback facilities, a bar graph shows the current actuator
analogue position between 0 (closed) and 100% (open).
FCU Control web page Controls
Parameters - Available to all user levels

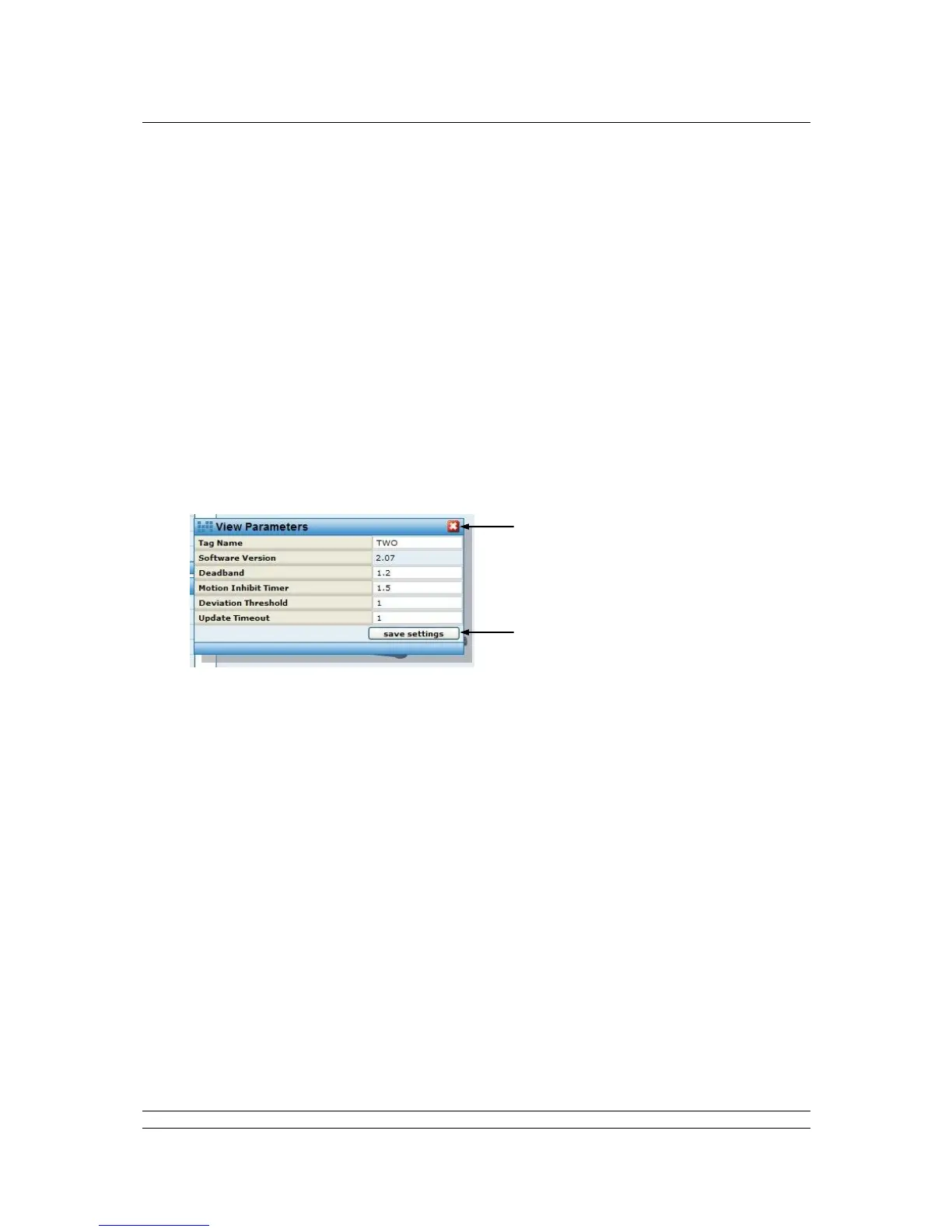

Fig 61: Q Parameters pop-up
Pop-up screen shows the settings for all the parameters relating to the integral field unit. For
users with Administrator level rights the values can be edited.
Controls
Save Settings : Edited fields may be saved to the FCU, accessible by Administrator level
users only
