Event Log (Wireless Field unit) - Available to all user levels

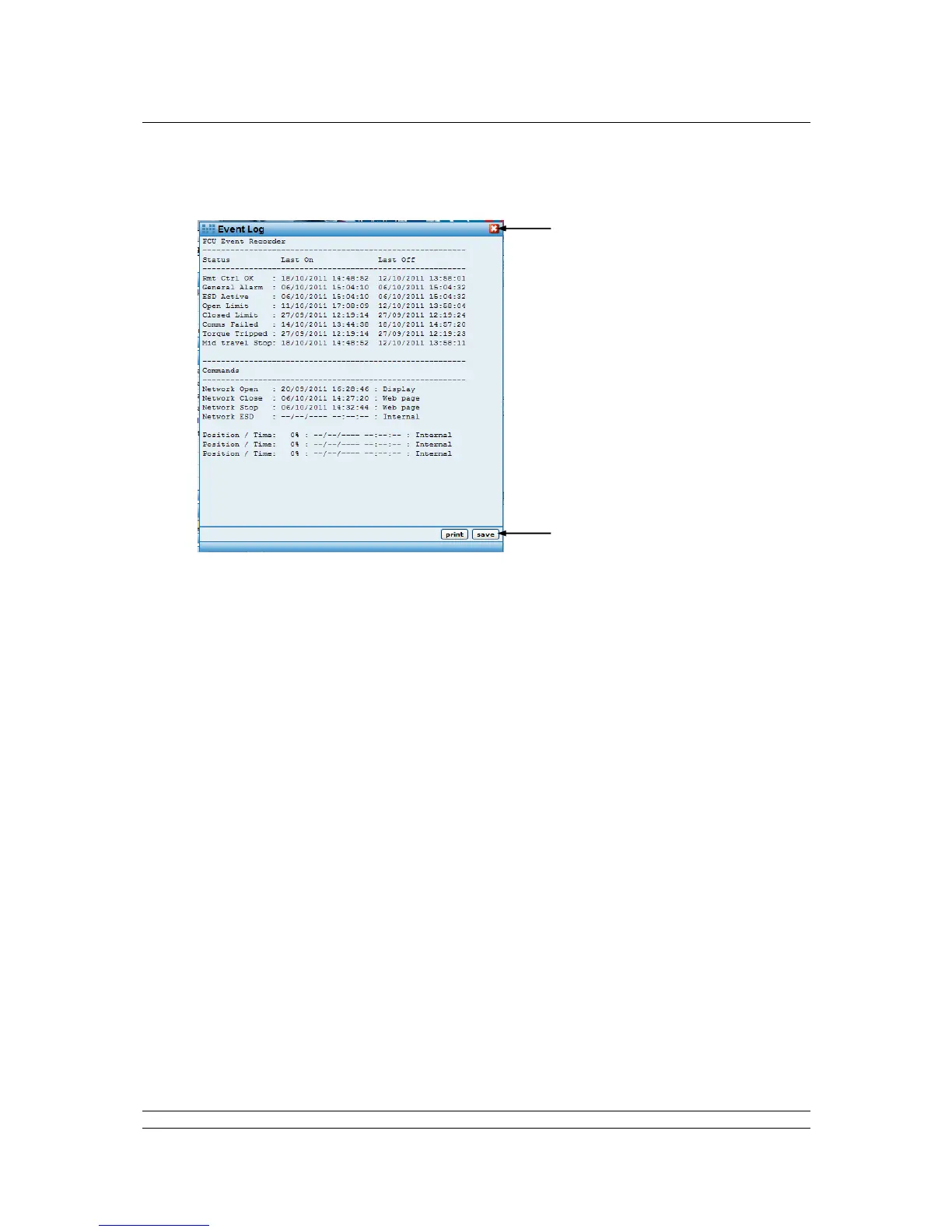

Fig 57: Wireless IQ / IQT FCU Event Log pop-up
Pop-up screen showing a log of the last occasion on which the various control and alarm
events occurred. For commands, the source of the command is also given.
Rmt control OK - On means that the local / remote selector in remote position.
General Alarm - Any Alarm present on the actuator e.g. Stall.
ESD Active - ESD signal active on the actuator.
Open Limit - open position limit switch.
Closed Limit - closed position limit switch.
Comms Failed - loss of network communication.
Torque Tripped - torque limit level exceeded.
Mid travel stop - motor stopped between open and close limits.
Network Open - open instruction over the control network.
Network Close - close instruction over the control network.
Network Stop - stop instruction over the control network.
Network ESD - ESD instruction over the control network.
Position / Time - last position control event.
Position / Time - last but one position control event.
Position / Time - last but two position control event.
Controls
Print : Prints the logger data to a printer attached to the computer.
Save : Saves the logger data to a file on the computer.
