9. Long Term Datalogger
Issue 06/15 Publication PUB059-002-00 129 of 136
9.2.4 FCU Data

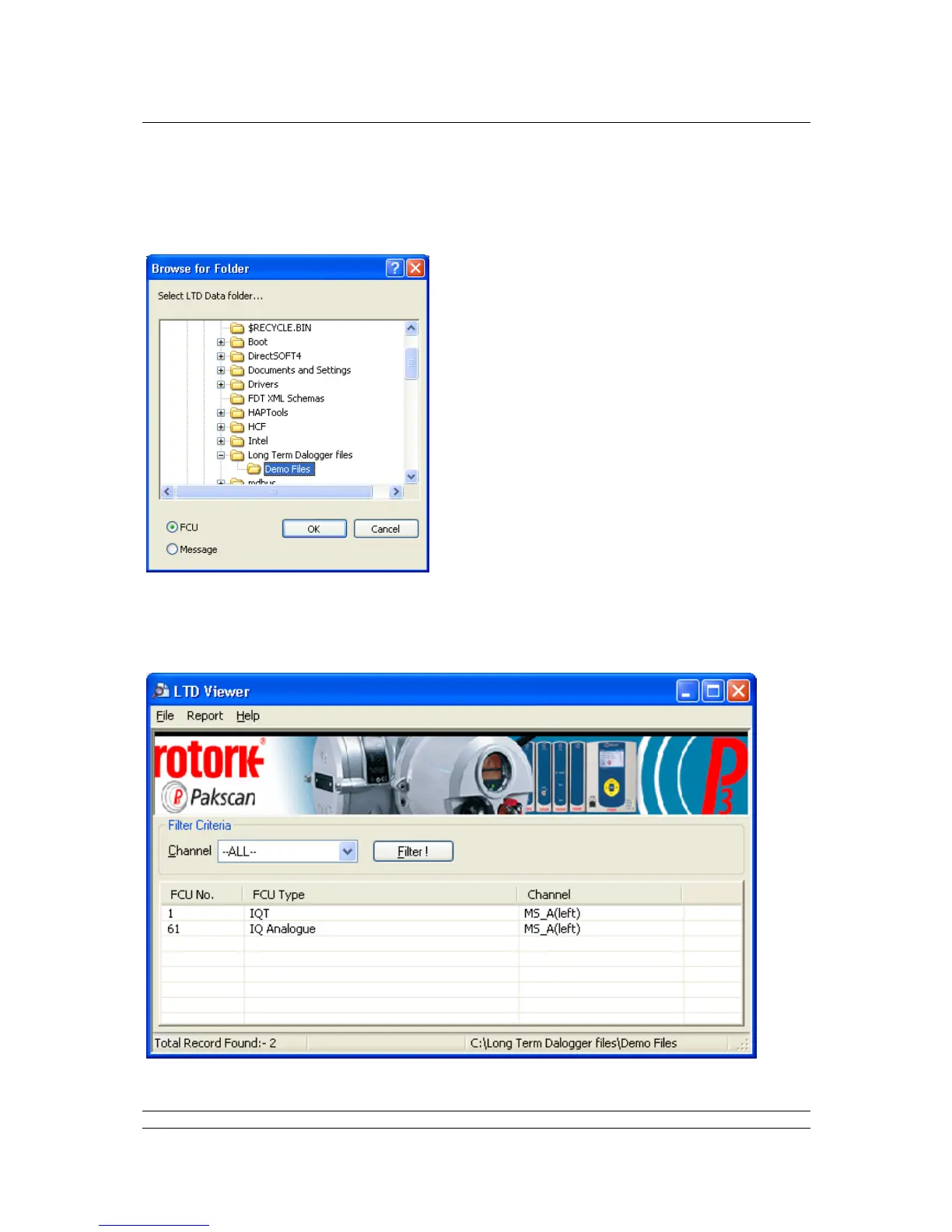

Select the ‘FCU’ radio button and then ‘OK’ to view the FCU data.
The FCU data page shows which devices are connected to the network and to which side of the
master station they are connected. Here we have 2 devices; one is an IQT at address 1 and the other
an IQ analogue card at address 61. Both are connected to the master CPU on the left hand side of
the master station:
