P3 - Pakscan Master Station Technical Manual
78 of 136 Publication PUB059-002-00 Issue 06/15
Show Alarms (Wireless Field unit) - Available to all user levels

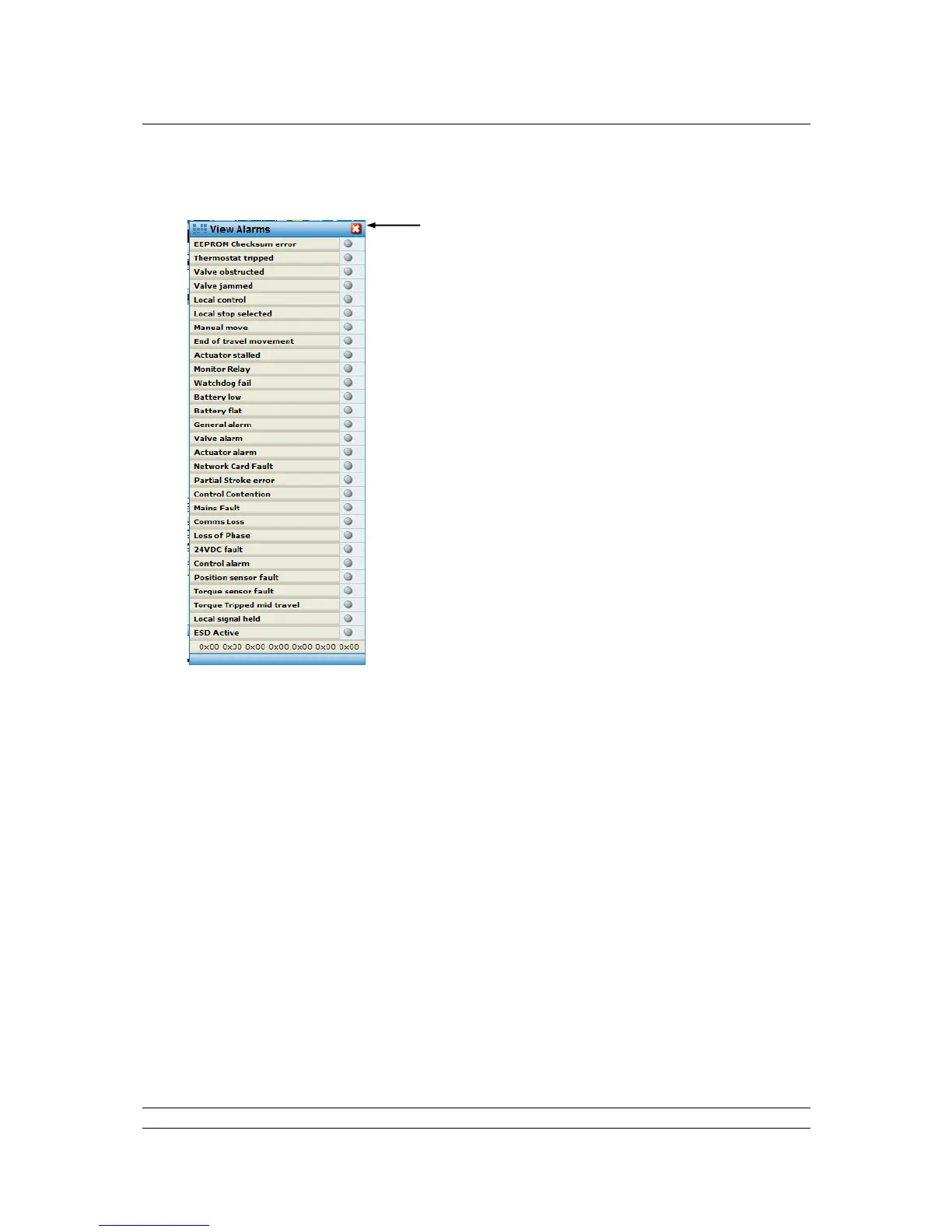

Fig 56: Wireless IQ / IQT Alarms pop-up
Pop-up screen shows the alarms on the actuator as red lights; grey is no alarm. Additional
information on the meaning of these alarms is contained in the individual field unit manuals.
Close pop-up
