Section 07 PROPULSION
Subsection 01 (JET PUMP)

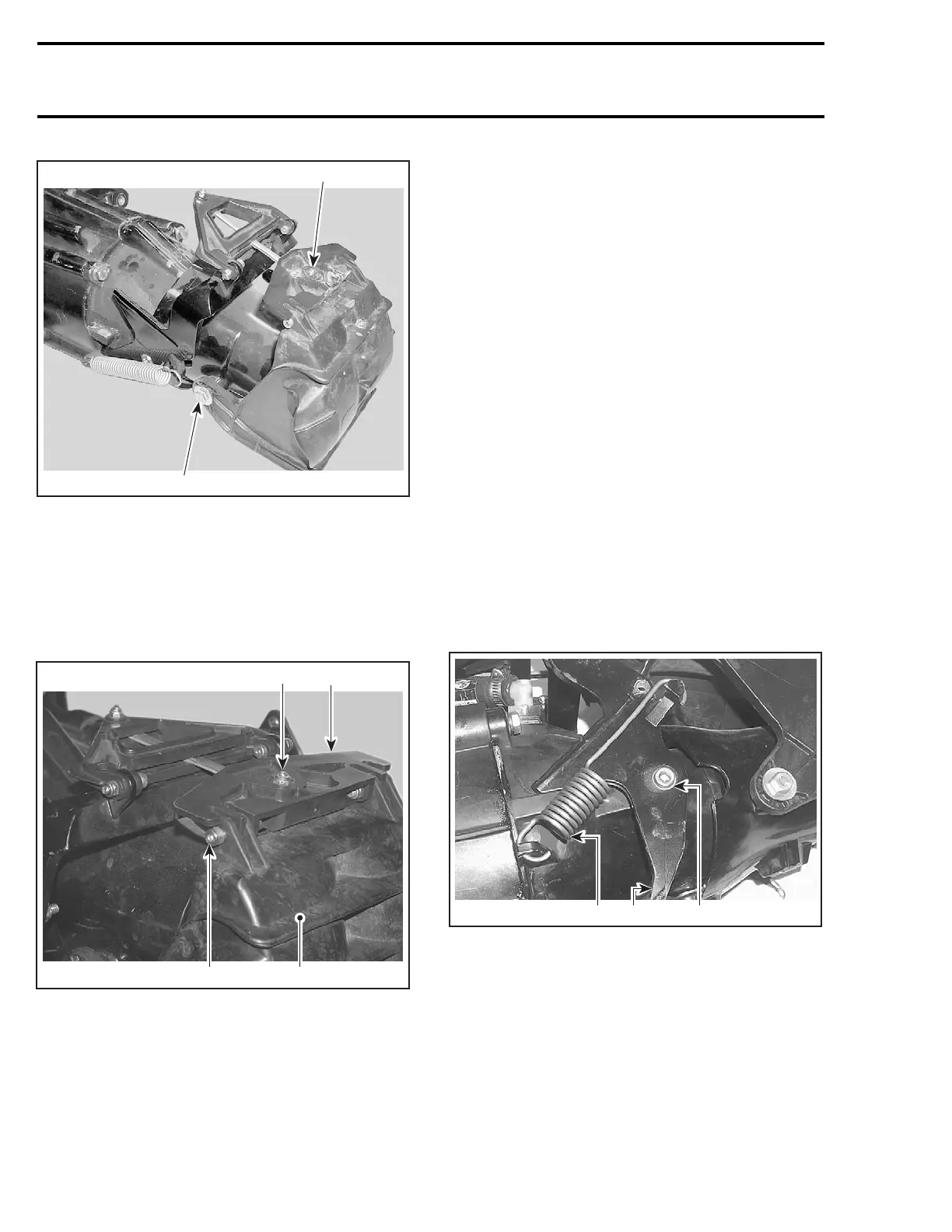

F16J04A
2
1
1. Pivot bolt
2. Screw
Remove both reverse gate screws no. 7.
Pivot Support
Remove reverse gate.
Unscrew pivot support bolts no. 8.
1
F18J0JA
2
34
1. Pivot bolt
2. Pivot support
3. Reverse gate
4. Pivot support bolt
Withdraw pivot support no. 9.
Connecting Rod
Remove:
– reverse gate
– pivot bolt no. 10.
Withdraw connecting rod no. 11.
Pivot Triangle
Remove:
– reverse gate
– connecting rod
– pivot triangle bolts no. 12.
Withdraw pivot triangle no. 13.
Pivot Arm
Remove reverse gate and connecting rod.
Position shift lever in forward.
Remove:
– spring no. 14
– reverse cable
– pivot arm bolts no. 15. Takenoteofbushing
size for reinstallation.
Withdraw pivot arm no. 16.
2
F18J1AA
31
1. Pivot bolts (each side)
2. Spring
3. Pivot arm
Nozzle
Remove reverse gate.
Disconnect steering cable from jet pump nozzle.
