Sea-doo 2005 4-Tec models User Manual

Section07PROPULSION
Subsection 01 (JET PUMP)

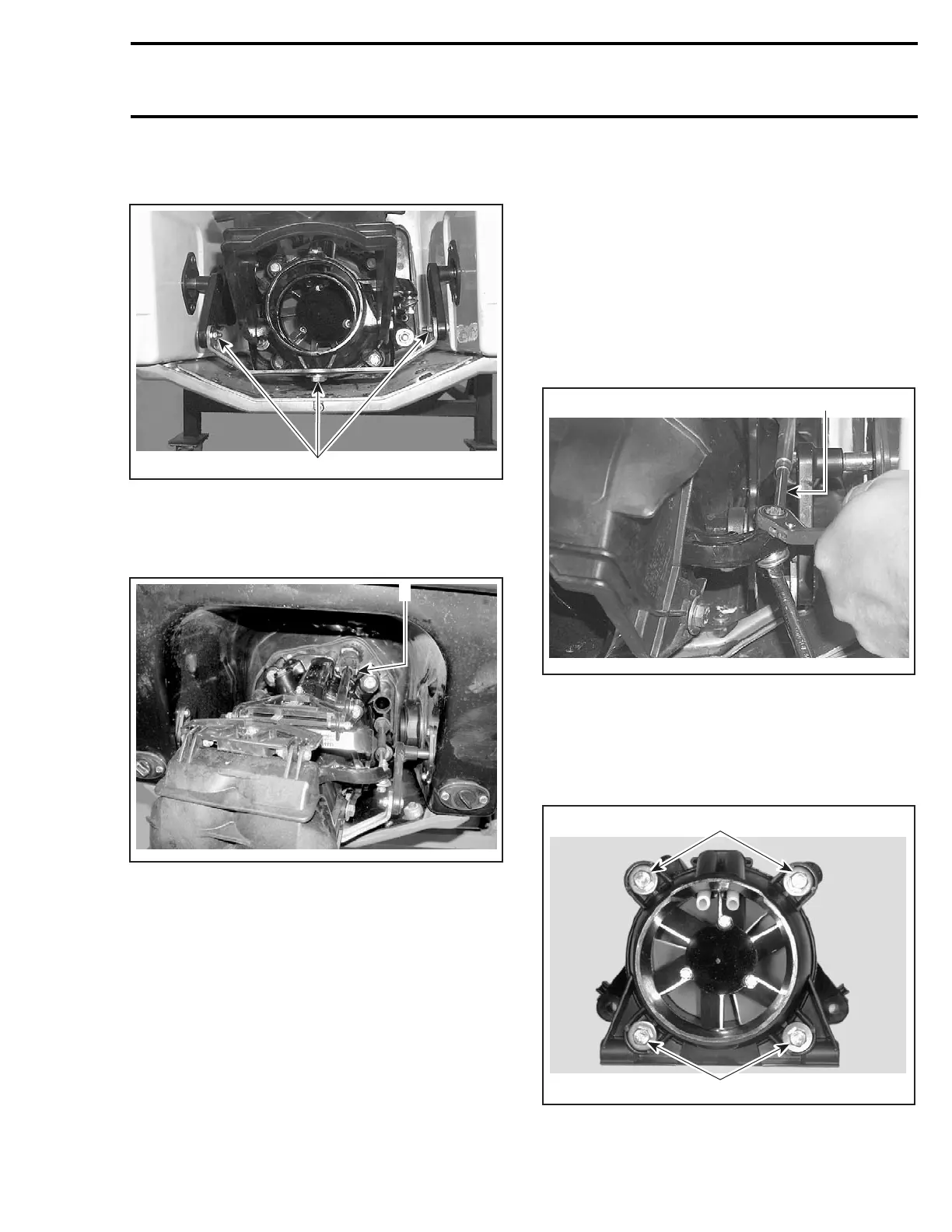

Remove O.P.A.S. “U” lever screws and pull out
lever.
1
F18J0DB
TYPICAL
1. “U” lever screws
RXP Models
Disconnect VTS link rod.
F19J05A
1
1. Link rod
Remove side screws no. 17 from nozzle no. 18.
Pull out nozzle and VTS ring no. 19.
Remove VTS ring.
Other Models
Remove 2 retaining screws no. 20, 2 sleeves
no. 21, 2 washers no. 22.
Remove nozzle no. 18.
Venturi
Remove:
– reverse gate no. 5
– nozzle no. 18
– pivot arm no. 16.
Unplug O.P.A.S. hose from plastic elbow.
Remove retaining screws no. 23 and withdraw
venturi no. 24.
It's possible to remove the venturi without remov-
ingthereversegateandthenozzle,seethefol-
lowing instructions.
Disconnect:
– steering cable
1
F18J0KA
1. Steering cable
– O.P.A.S. hose
– reverse cable.
Remove retaining screws no. 23 and withdraw
venturi no. 24.
F02J0TA
1
1
TYPICAL
1. Remove screws
smr2005-019 189
