Sea-doo 2005 4-Tec models User Manual

Section07PROPULSION
Subsection 01 (JET PUMP)
Impeller

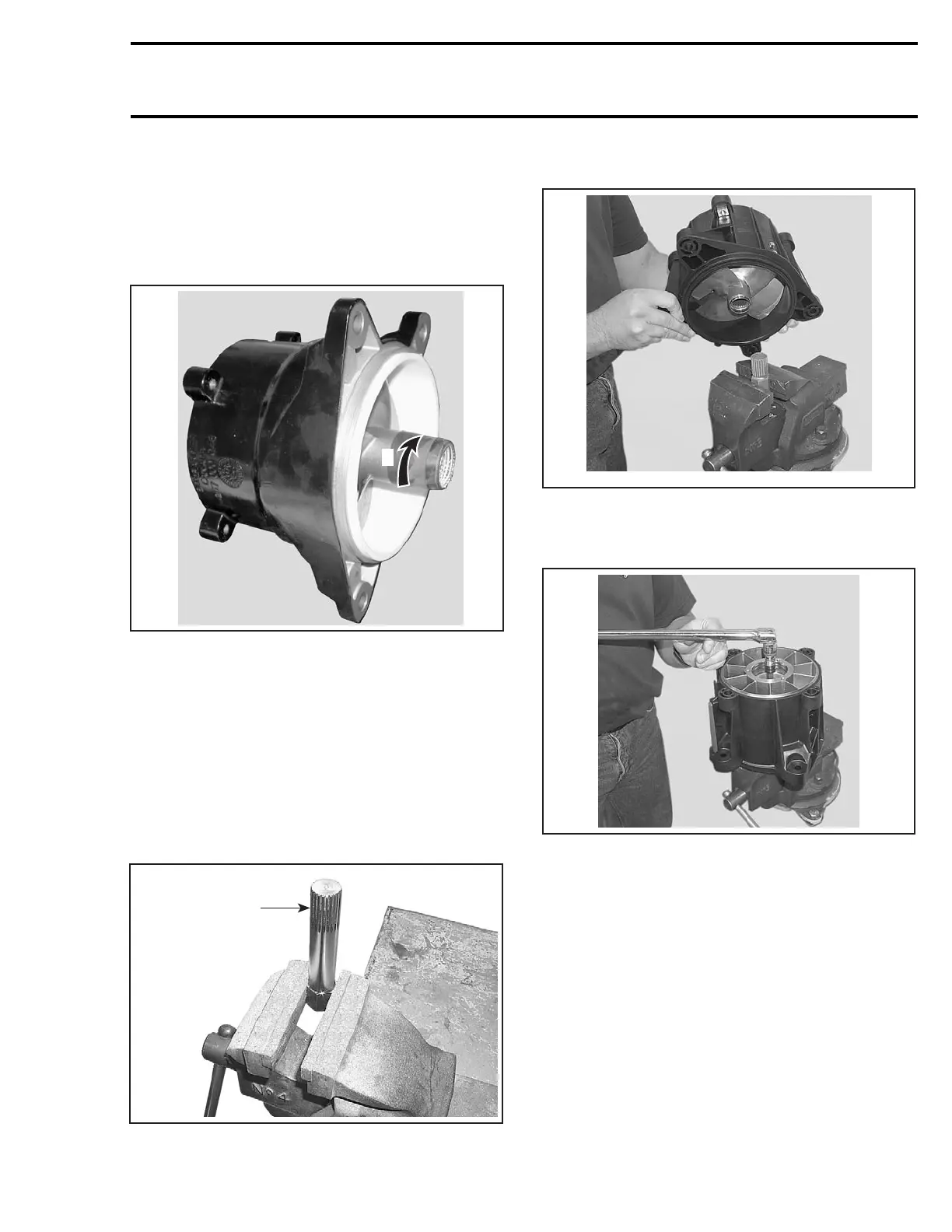

Remove impeller ring no. 3 and impeller boot
no. 2.
RXP Models
Unscrew impeller boot no. 2 CLOCKWISE.
F19J06A
1
1. Unscrew clockwise
All Models
Replace impeller ring and/or impeller boot if dam-
aged.
Mount impeller remover/installer in a vise.
For GTX 4-TEC, Wake and GTX 4-TEC
Supercharged models, use the impeller
remover/installer (P/N 529 035 820) and for the
GTX 4-TEC Limited, RXP and RXT models,use
the impeller remover/installer (P/N 529 035 956).
1
F18J0PB
1. Impeller remover/installer
Install jet pump housing no. 27 over this tool.
F18J0QA
Using a 12 mm Allen key, unscrew the impeller.
NOTE: It may be needed to heat the impeller to
release the threads.
F18J0RA
CAUTION: Never use any impact wrench to
loosen impeller.
To remove impeller, apply a rotating movement
and pull at same time. Slide impeller out of hous-
ing.
Pull pump housing out.
Remove circlip no. 32,sealno. 33 and spacer
no. 34.
NOTE: Ensure to keep shaft sleeve no. 30 and
O-ring no. 35 in position. The impeller shaft push-
er will work against sleeve to properly push bear-
ing out.
smr2005-019 191
www.SeaDooManuals.net

Sea-doo 2005 4-Tec models Specifications

General

Displacement	1494 cc
Fuel Type	Unleaded gasoline
Engine Type	4-TEC
Cooling System	Closed-loop cooling
Seating Capacity	3
Width	48 inches (122 cm)
Fuel Capacity	15.9 US gallons
