Sea-doo 2005 4-Tec models User Manual

Section 08 STEERING SYSTEM
Subsection 01 (STEERING SYSTEM)

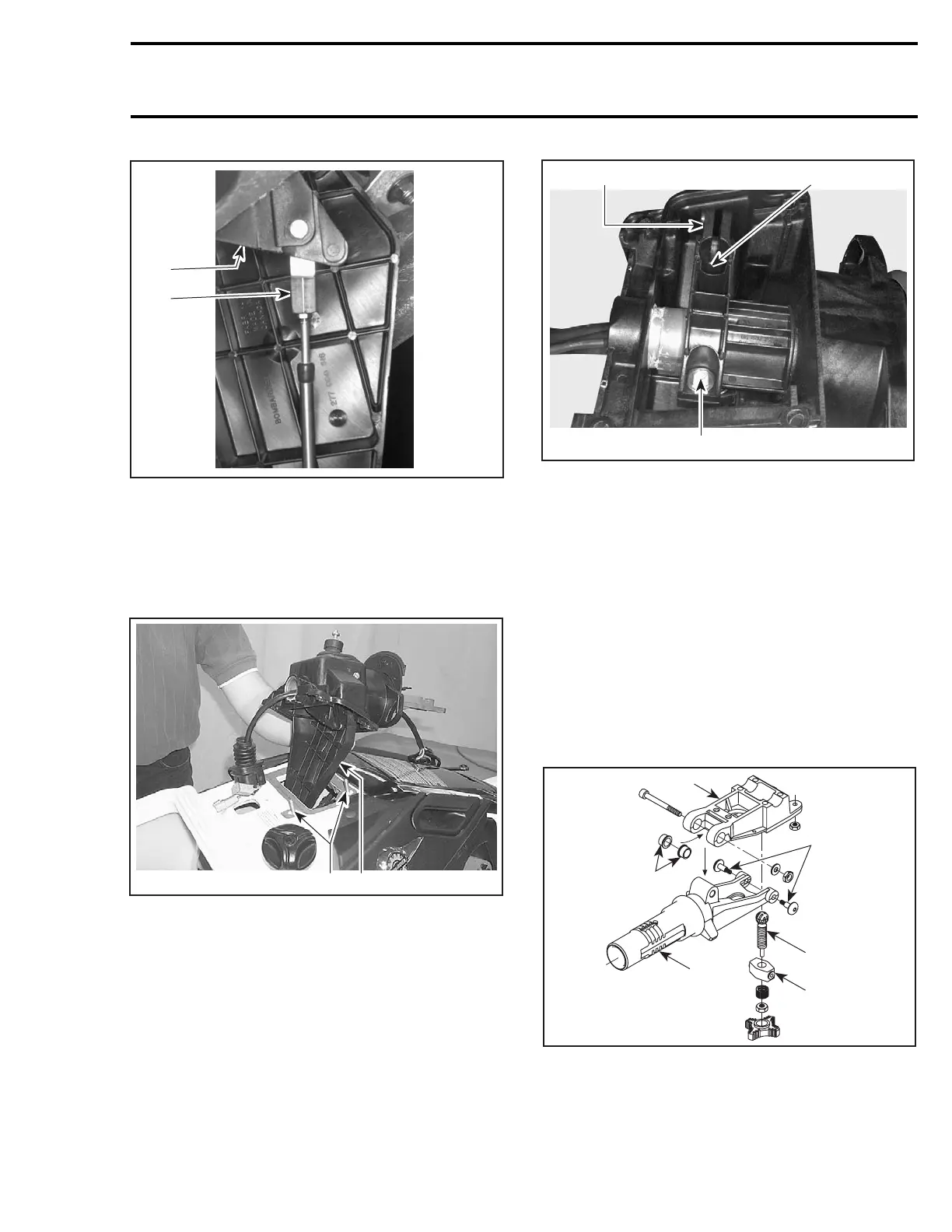

F07K06A
1
2
1. Steering stem arm
2. Steering cable
Remove bolts no. 31 retaining cable support
no. 30 to steering support no. 32.
Remove bolts no. 34 and lock nuts no. 35 from
steering retaining strip studs.
1
F18K0JA
2
1. Steering support
2. Retaining strip studs
Remove steering support no. 32 with handlebar,
wiring harnesses and cables.
Steering Stem
Loosen bolts no. 36 retaining steering stem arm
no. 33 to support no. 37.
F07K08A
21
2
1. Steering stem arm
2. Bolts
Pull steering stem no. 38 out of steering support.
Handlebar Support
GTX Supercharged Limited Models Only
Unscrew nut and remove pivot bolt no. 39 re-
taining handlebar support no. 40 to steering stem
no. 38.
Remove adjuster screw no. 4 from threaded block
no. 41 and detach handlebar support from steer-
ing stem.
Unscrew threaded pivots no. 42 to remove thread-
ed block from steering stem.
F07K0PA
2
3
1
5
4
6
1. Steering stem
2. Handlebar support
3. Support bushing
4. Adjuster screw
5. Threaded block
6. Threaded pivots
smr2005-022 233
