Sea-doo 2005 4-Tec models - Page 239

Section 08 STEERING SYSTEM
Subsection 01 (STEERING SYSTEM)

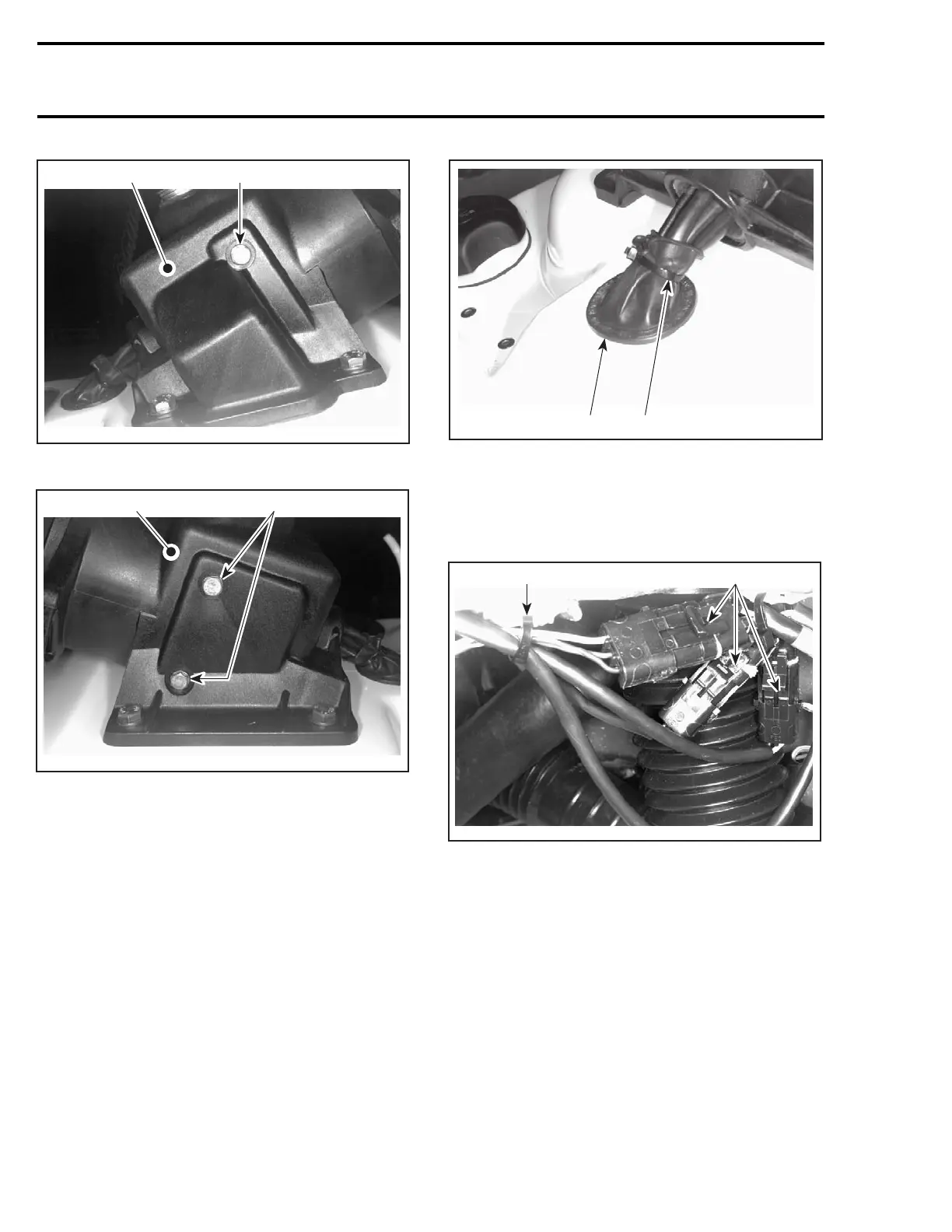

F07K02A
1 2
1. Steering support
2. Bolt
1
2
F07K03A
1. Steering support
2. Bolts
Remove cable support no. 30.
Steering Support
Cut locking tie securing wiring harness boot.
F07K04A
1 2
1. Boot
2. Locking tie
Disconnect the throttle cable from throttle body.
Disconnect the wiring harnesses leading out of
steering stem and cut locking tie.
F07K05A
21
1. Tie rap
2. Connectors
Disconnect the steering cable from the steering
stem arm no. 33.
232 smr2005-022
