Section 08 STEERING SYSTEM
Subsection 02 (OFF-POWER ASSISTED STEERING SYSTEM (O.P.A.S.))
To do this:
– Remove the spring no. 13.
– Removethespringpinno. 14 from piston and
pivot rod no. 4.

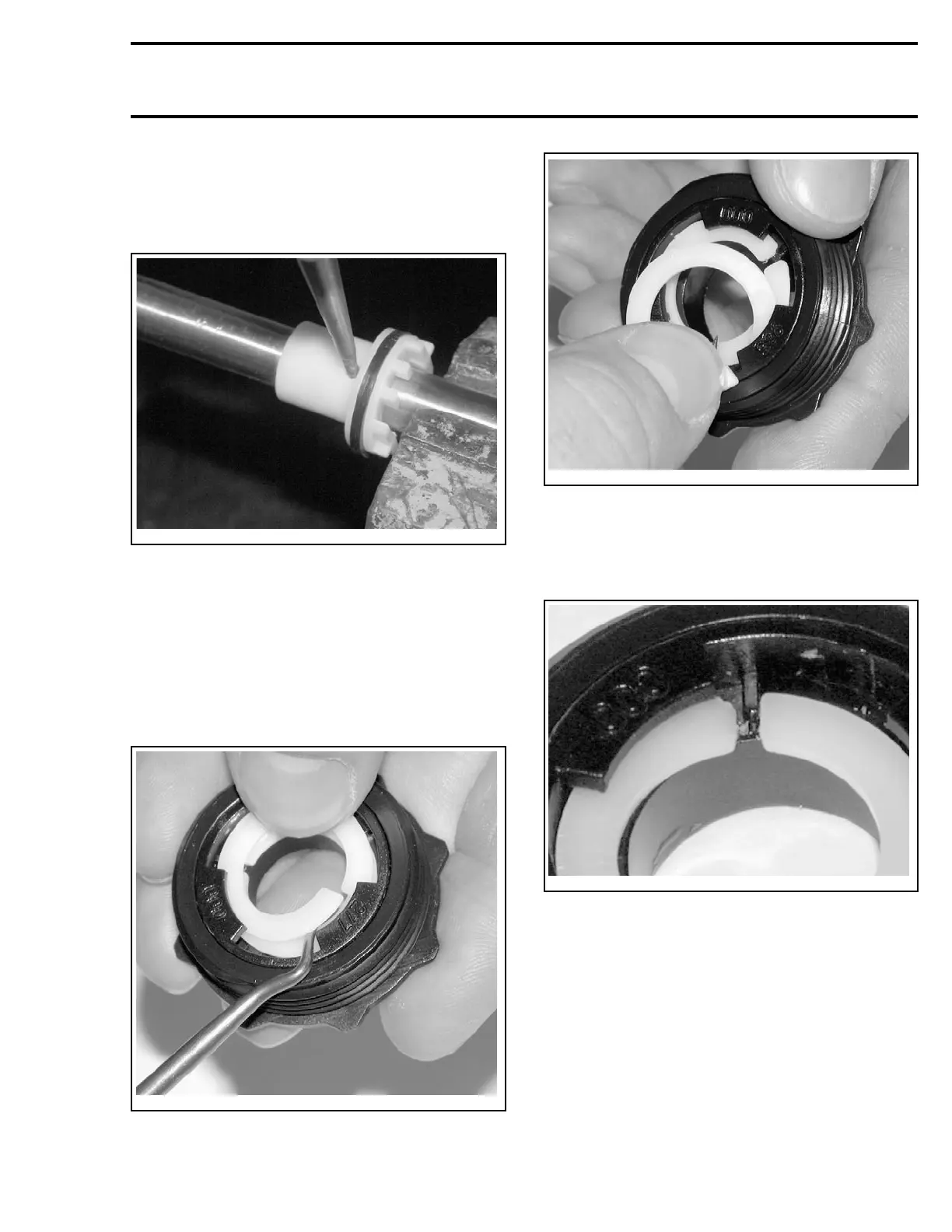

smr05-039-003
– Remove the piston.
– Check pivot rod no. 4 for cracks or scratches.
Replace it, if necessary.
– Install a new piston with a new spring pin.
Before assembly, it will be necessary to change
the split rings no. 15 and no. 16 inside cylinder
cap no. 11. Do the following:
– To remove the upper split ring no. 15, lift one
end over the cap tab.
smr05-039-004
– Turn the split ring to remove it from cap.
smr05-039-005
– Repeat the same procedure for the lower split
ring no. 16.
– Install new split rings into cylinder cap. The
opening of each split ring must be aligned with
the appropriate lock inside cap.
smr05-039-006
LOWER SPLIT RING
smr2005-039 245
