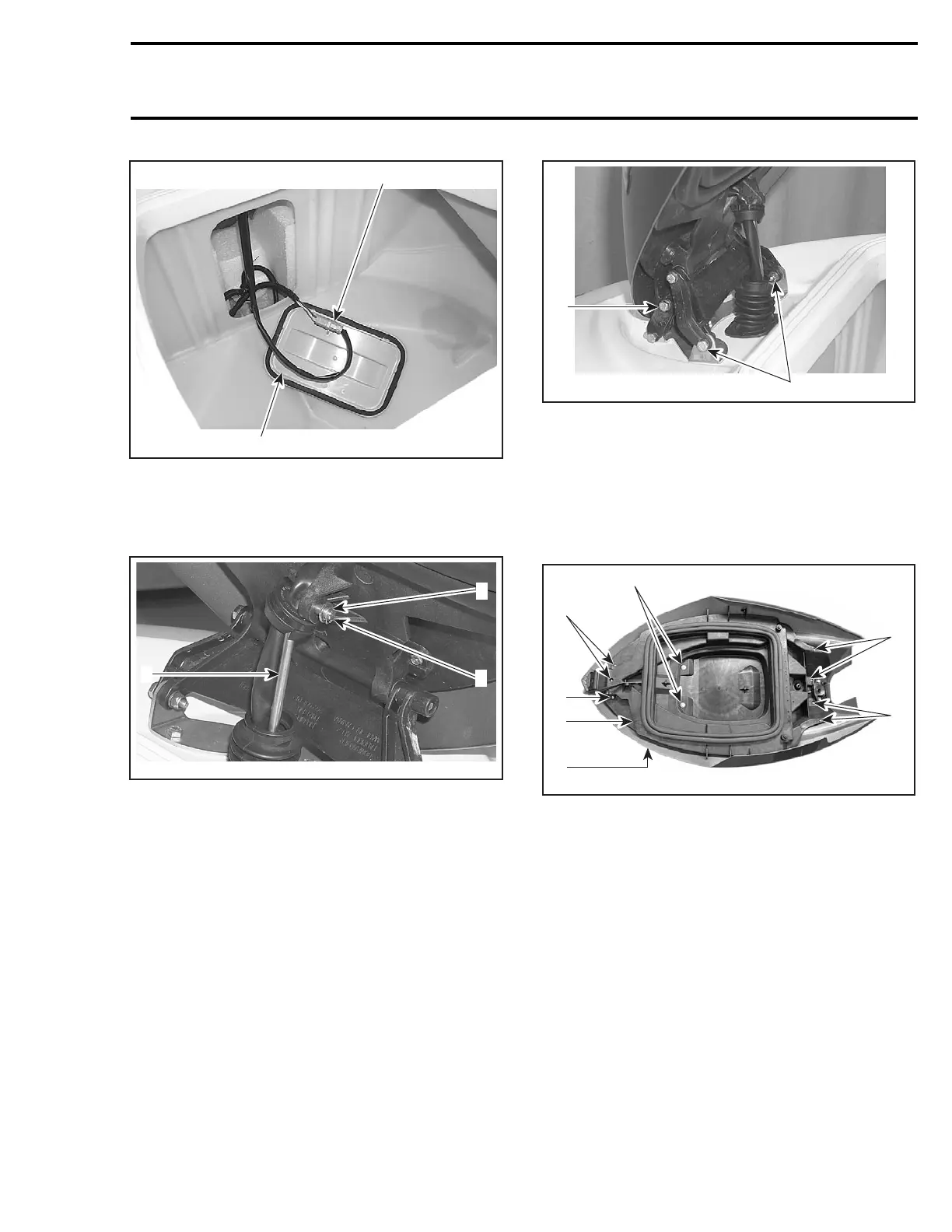

Sea-doo 2005 4-Tec models User Manual

Section 09 HULL/BODY
Subsection 01 (ADJUSTMENT AND REPAIR)
1
2
F18L1MA
1. Access panel
2. Multifunction connector
– Unlock shock rod from circlip and remove wash-
er.
F18L1NA
1
3
2
1. Shock rod
2. Circlip
3. Washer
– Remove one long retaining screw (front).
– Remove two short retaining screws locate in
the back lower side and hold cover firmly.
2
F18L1OA
1
1. One long retaining screw (front)
2. Short retaining screw (one on each side to the back)
– Remove storage cover.
– Remove seven inner skin short screws (flanged
screws).
– Remove two long inner skin screws (hexagonal
screws).
1
F18L1PA
2
3
3
4
3
3
1. Storage cover
2. Inner skin
3. Inner skin short screws (x 7)
4. Inner skin long screws (x 2)
– Use a rubber hammer to remove the inner skin
from the cover. If the inner skin is too stiff,
install a piece of 2 x 4 against the inner skin and
hit it with the rubber hammer.
smr2005-024 265
www.SeaDooManuals.net

Sea-doo 2005 4-Tec models Specifications

General

Displacement	1494 cc
Fuel Type	Unleaded gasoline
Engine Type	4-TEC
Cooling System	Closed-loop cooling
Seating Capacity	3
Width	48 inches (122 cm)
Fuel Capacity	15.9 US gallons
