Section 09 HULL/BODY
Subsection 01 (ADJUSTMENT AND REPAIR)
1
F18L1QA
2
3

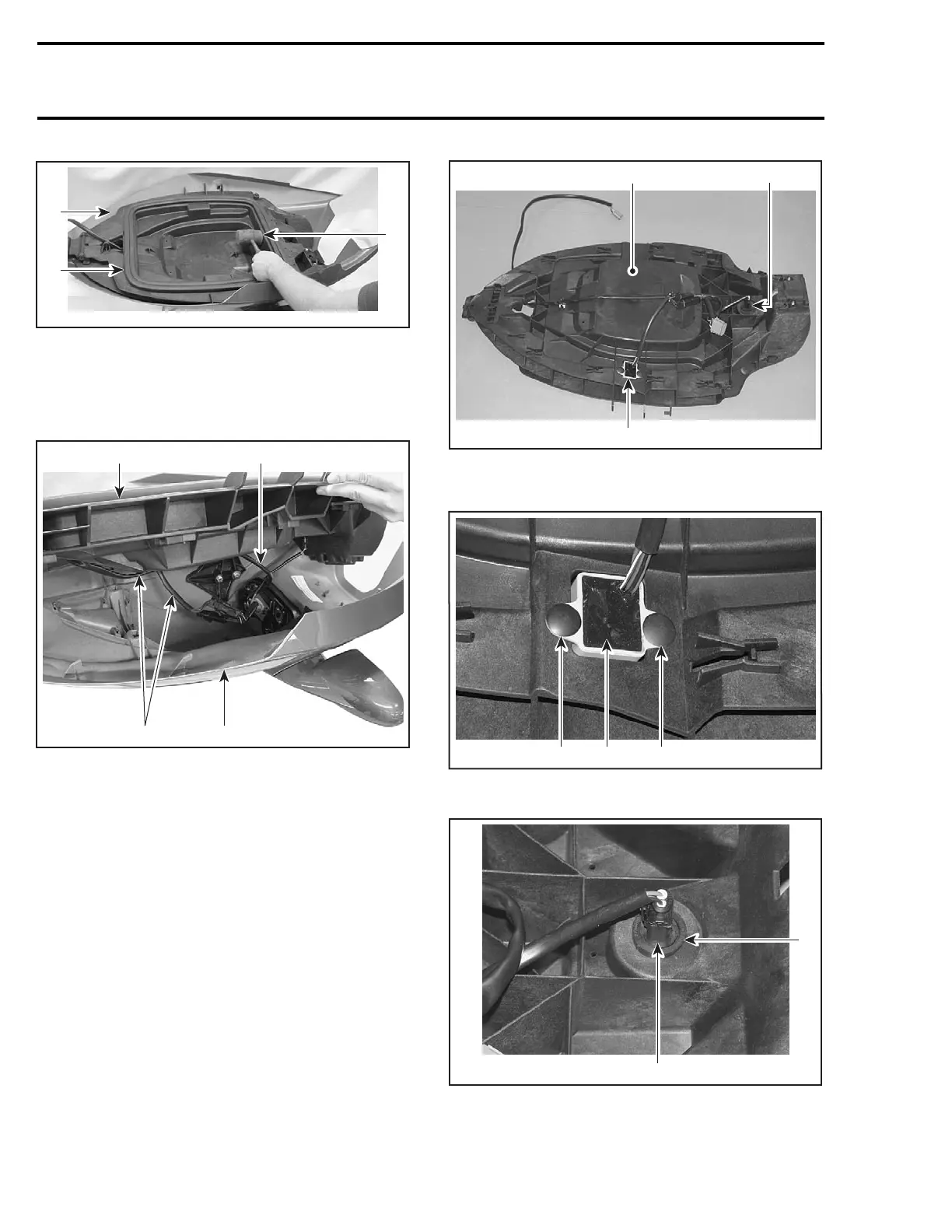

1. Storage cover
2. Inner skin
3. Rubber hammer
– Remove connector harness from the inner skin
by cutting tie raps.
2
1
F18L1RA
3
3
1. Inner skin
2. Storage cover
3. Connector harness
– Remove compass by removing dart (2).
– Remove temperature sensor from grommet.
3
1
F18L1SA
2
1. Inner skin
2. Temperature sensor
3. Compass
1
F18L1TA
12
1. Dart (x 2)
2. Compass
1
F18L1UA
2
1. Temperature sensor
2. Grommet
