Section 11 ELECTRICAL CONNECTORS AND WIRING DIAGRAMS
Subsection 01 (ELECTRICAL CONNECTORS)

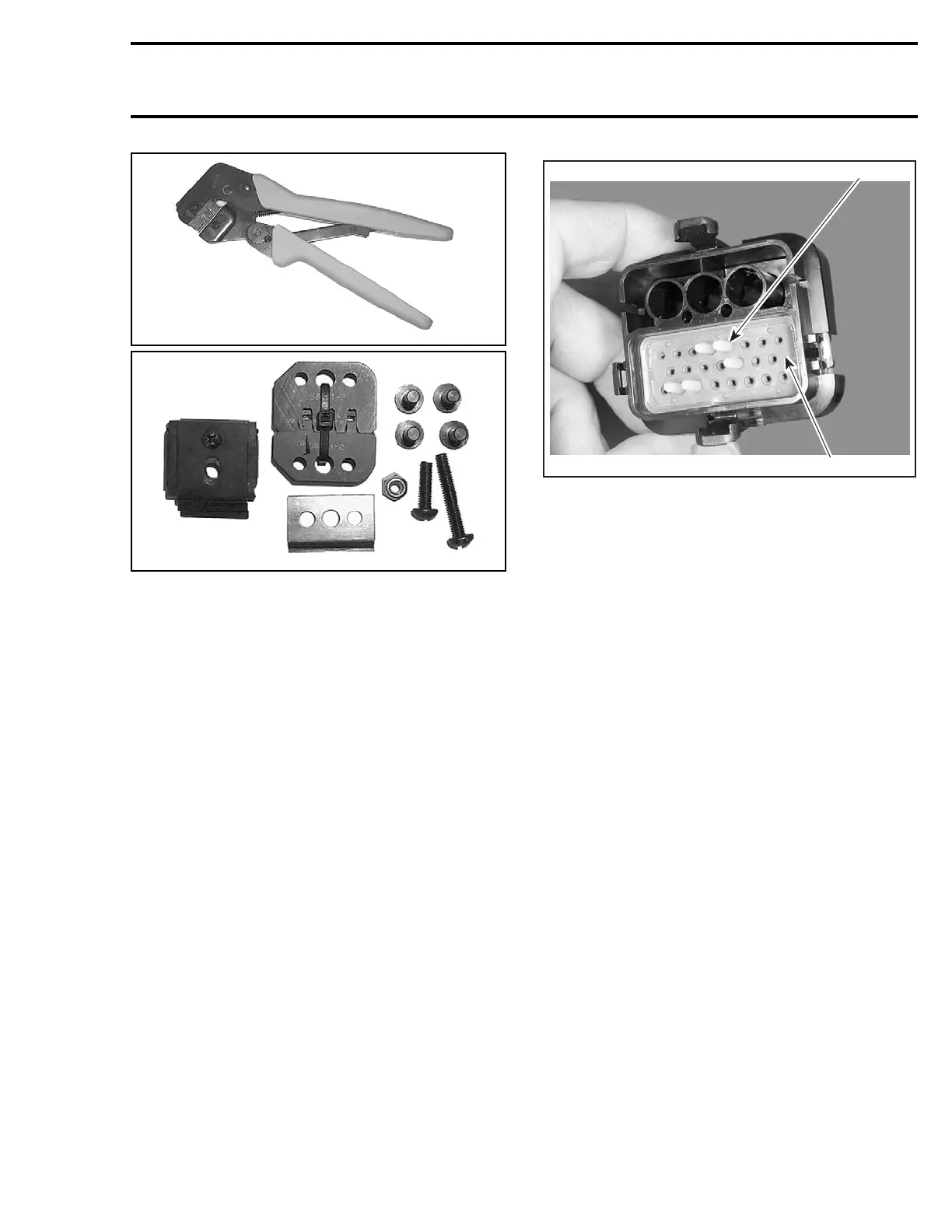

529035909
529035908
CAUTION: If terminals are not crimped using
the proper crimping tool, the wire seal may be
damaged.
All circuits are sealed by a diaphragm in the rubber
wire seal. When installing a terminal in connector,
the diaphragm is pierced as the terminal passes
through it.
If the diaphragm is pierced and the cavity is not
used, install a seal plug, large end first, into circuit
cavity as far as it will go.
NOTE: It is suggested that all unused circuit cav-
itiesbesealedwithasealplug,eveniftheyare
not pierced.
F00H10A
1
2
1. Seal plug
2. Wire seal
CAUTION: Do not pierce the diaphragm with
a sharp point when performing electrical trou-
bleshooting. The resulting pinholes in the in-
sulation will allow moisture to penetrate the
system and possibly result in system failure.
Terminal Installation
For insertion of signal terminal, make sure the
wedge lock is in the open position.
NOTE: For insertion of power terminal, the wedge
lock may or may not be on the open position.
Insert terminal into appropriate circuit cavity and
push as far as it will go.
Pull back on the terminal wire to be sure the reten-
tion fingers in the connector are holding the con-
tact properly.
After all required terminals have been inserted,
the wedge lock must be closed to its locked po-
sition.
smr2005-026 301
