Section 11 ELECTRICAL CONNECTORS AND WIRING DIAGRAMS
Subsection 01 (ELECTRICAL CONNECTORS)
1
F18Z06A
1. Cover

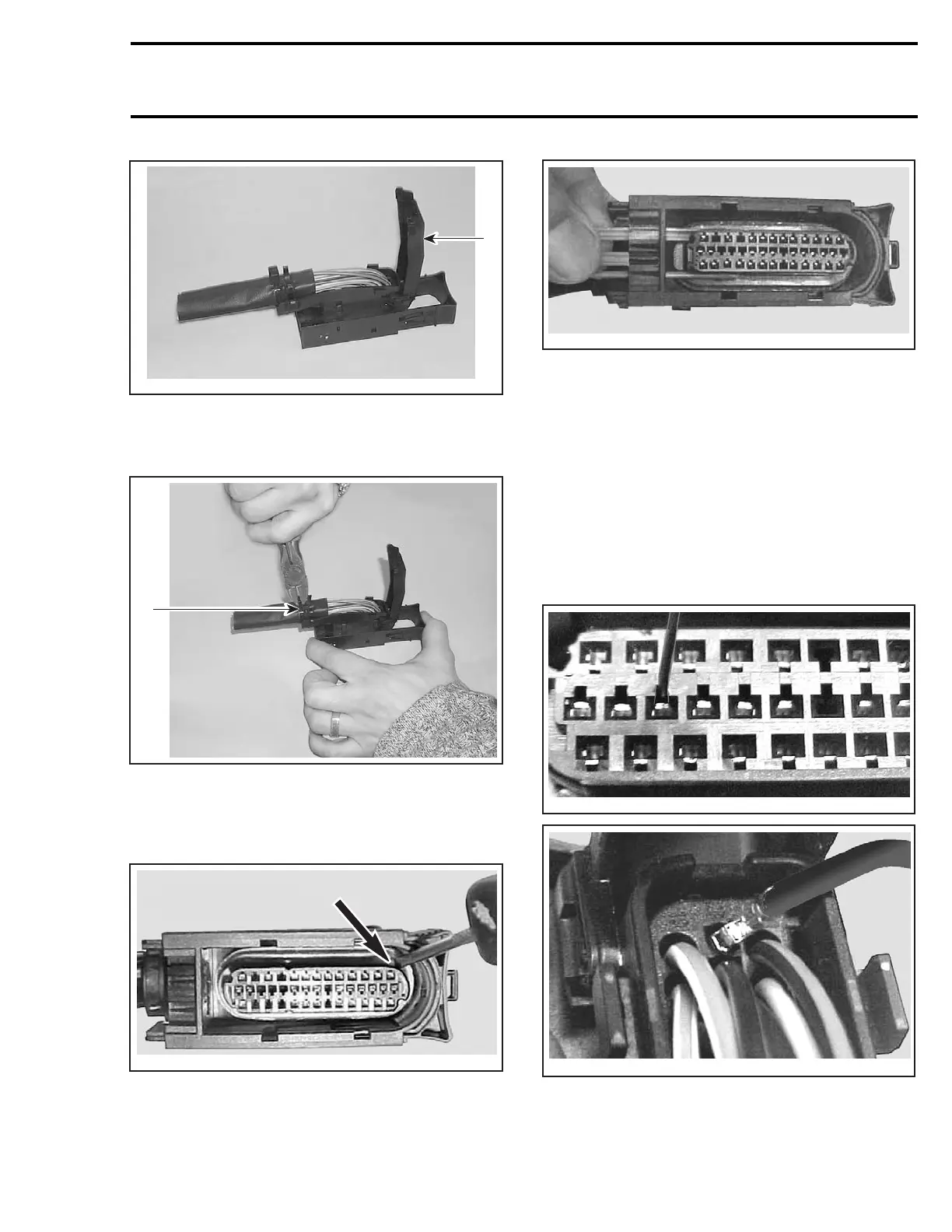

Cut both tie raps that secure the harness to the
connector.
1
F18Z07A
1. Tie raps
Turn the connector over and remove the orange
locking tab by pushing and then pulling toward the
wire harness.
F18Z0SA
F18Z0TA
A terminal remover such as Snap-On TT600-1
tool (or a 0.76 mm (.030 in) oxyacetylene torch tip
cleaner or a #68 drill bit) must be inserted into the
terminal cavity to release the locking tab from the
connector.
CAUTION: Using a tool tip larger than 0.76 mm
(.030 in) may damage the terminal.
Insert the tool tip into the terminal cavity as
shown, and locate its wire in the back of the con-
nector. You may have to pry the tool tip against
thelockingtabtoreleaseit,thenremovethe
terminal from the connector.
F18Z0UA
F18Z0VA
Check the locking tab on the terminal, it may have
to be bent out a little so it will lock in its cavity
when it is re-inserted.
smr2005-026 303
