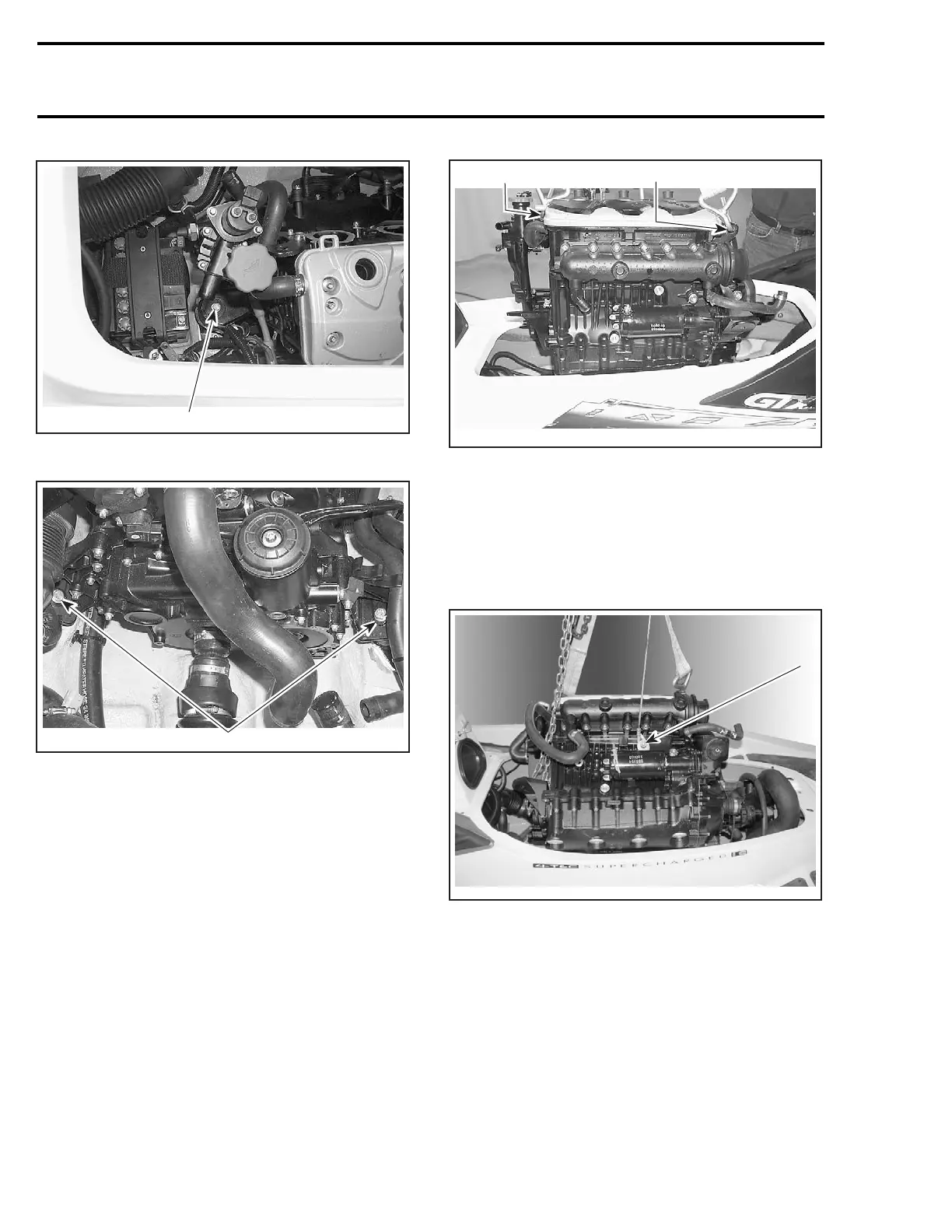

Section 03 ENGINE SYSTEM
Subsection 05 (REMOVAL AND INSTALLATION)
1
F18D13A
FRONT SUPPORT
1. Remove screw
1
F18D14A
REAR SUPPORT
1. Remove screws
Lifting Engine
Using a chain block, a hoist or other suitable equip-
ment, slightly lift engine to ease the remaining
component removal.
CAUTION: Take care not to damage cables.
1
F18D11A
1
TYPICAL
1. Lifting brackets
RXP 4-TEC Models
Slightly move engine rearward to take advantage
of the larger opening.
The engine have to be hooked-up at an additional
location. See illustration.
1
F19D08A
1. Hook-up a steel rope/chain here
Carefully lift engine by the side with the steel
rope/chain and rotate engine so that it can be
pulled out of vehicle.
62 smr2005-010
