Sea-doo 2005 4-Tec models User Manual

Section 03 ENGINE SYSTEM
Subsection 05 (REMOVAL AND INSTALLATION)
Ensure contact surface is perfectly clean then re-
connect grounds wires/cable to engine.
Engine Support
Do not apply threadlocker to engine support
screws and do not torque yet.

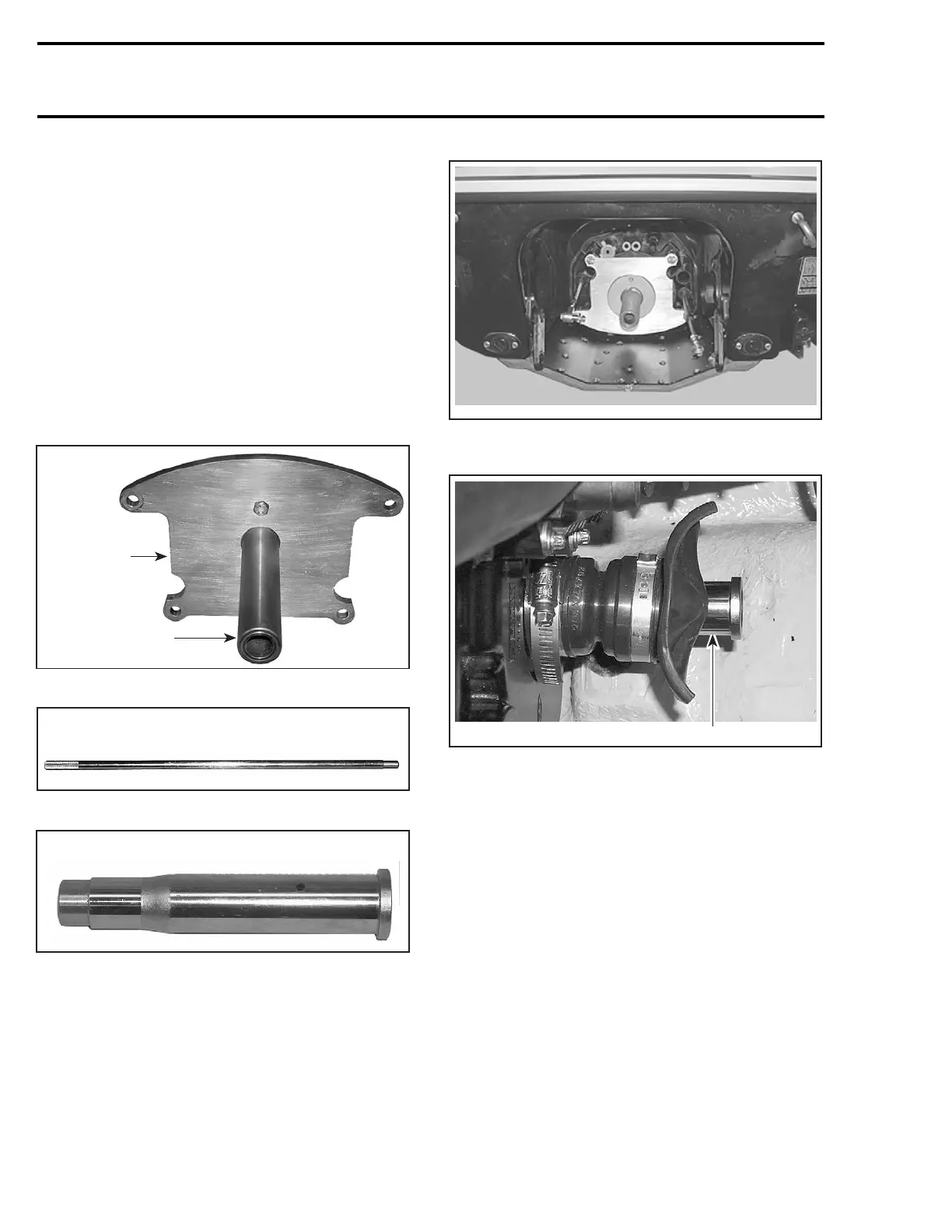

Engine/Jet Pump Alignment
Alignment is necessary to eliminate possible vi-
bration and/or damage to components. Check
alignment of engine using the following alignment
tools.
Support plate kit (P/N 529 035 506) and plate
(P/N 529 035 507).
529 035 507
529 035 506
Alignment shaft (P/N 295 000 141).
295 000 141
Engine alignment adapter (P/N 529 035 719).
529 035 719
To verify alignment proceed as follows:
– Secure plate and support to hull with four nuts.
F19D0AA
– Install engine alignment adapter (P/N 529 035
719) in engine PTO housing.
1
F18D18A
1. Engine alignment adapter
– Carefully slide shaft through support.
– Insert shaft end into engine alignment adapter.
NOTE: Ensure the protective hose and carbon
ring is removed to check engine alignment. If
the alignment is correct, the shaft will slide eas-
ily without any deflection in engine alignment
adapter.
