Sea-doo 2005 4-Tec models User Manual

Section 03 ENGINE SYSTEM
Subsection 05 (REMOVAL AND INSTALLATION)

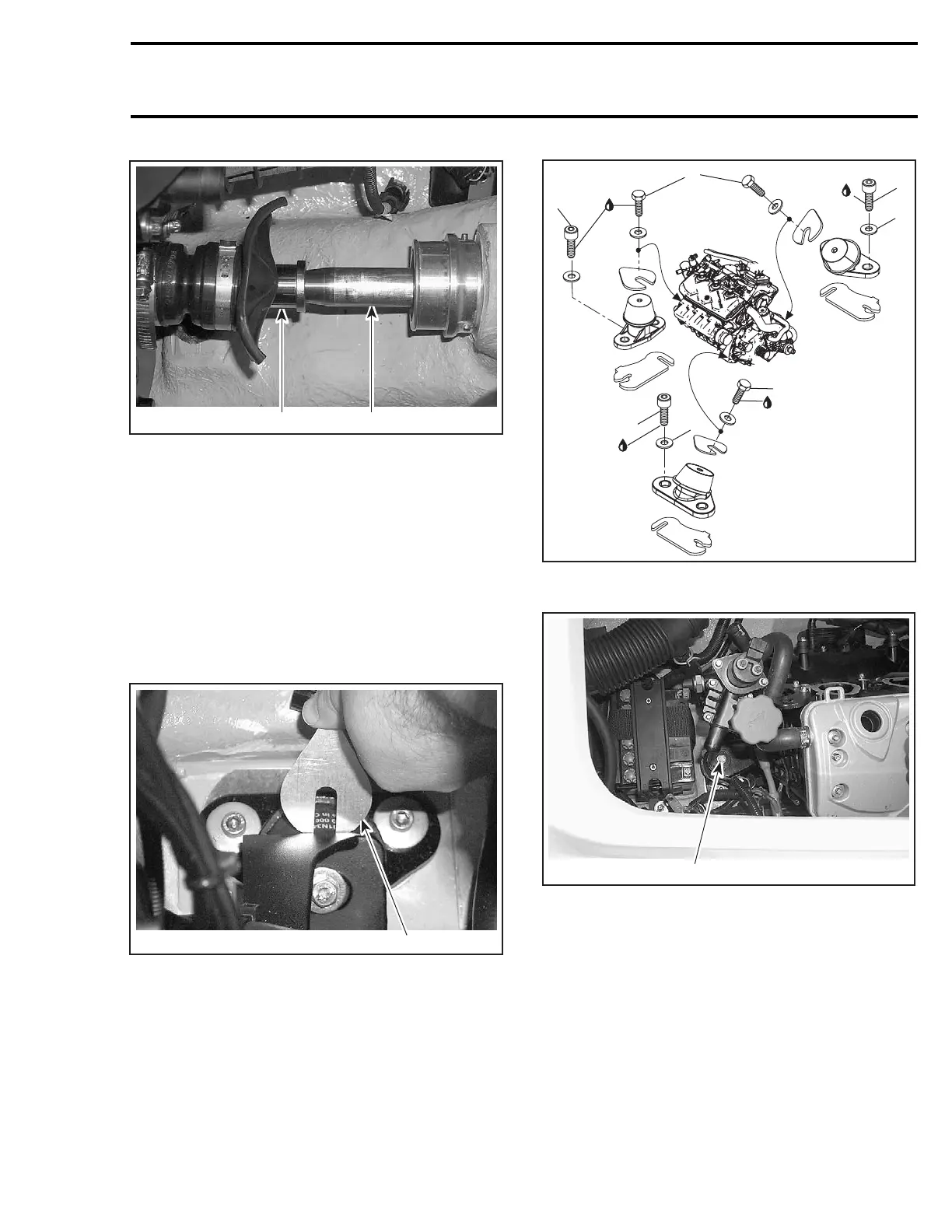

1
F18D17A
2
TYPICAL
1. Engine alignment adapter
2. Alignment shaft
If the alignment is incorrect loosen engine sup-
portscrewstoenabletoalignenginealignment
adapter with shaft end.
NOTE: Use shim(s) (P/N 270 000 024) or (P/N 270
000 025) between engine supports and rubber
mounts to correct alignment.
CAUTION: Whenever shims are used to cor-
rect alignment, never install more than 5 mm
(0.196 in) shim thickness.
1
F18D15A
TYPICAL
1. Shim
Engine Support Screws
Apply Loctite 243 (blue) (P/N 293 800 060) on
screw threads.
Torque engine support screws to 25 N•m
(18 lbf•ft) when procedure is completed.
1
1
1
Loctite 243
Loctite
243
Loctite
243
F18D10B
1
2
1
Loctite
243
2
1. Torque to 25 N•m (18 lbf•ft)
2. Position washer to have the “T” mark on top
1
F18D13A
1. Torque to 25 N•m (18 lbf•ft)
smr2005-010 65
