MRD 3187B - User Manual
Page 101 (245)

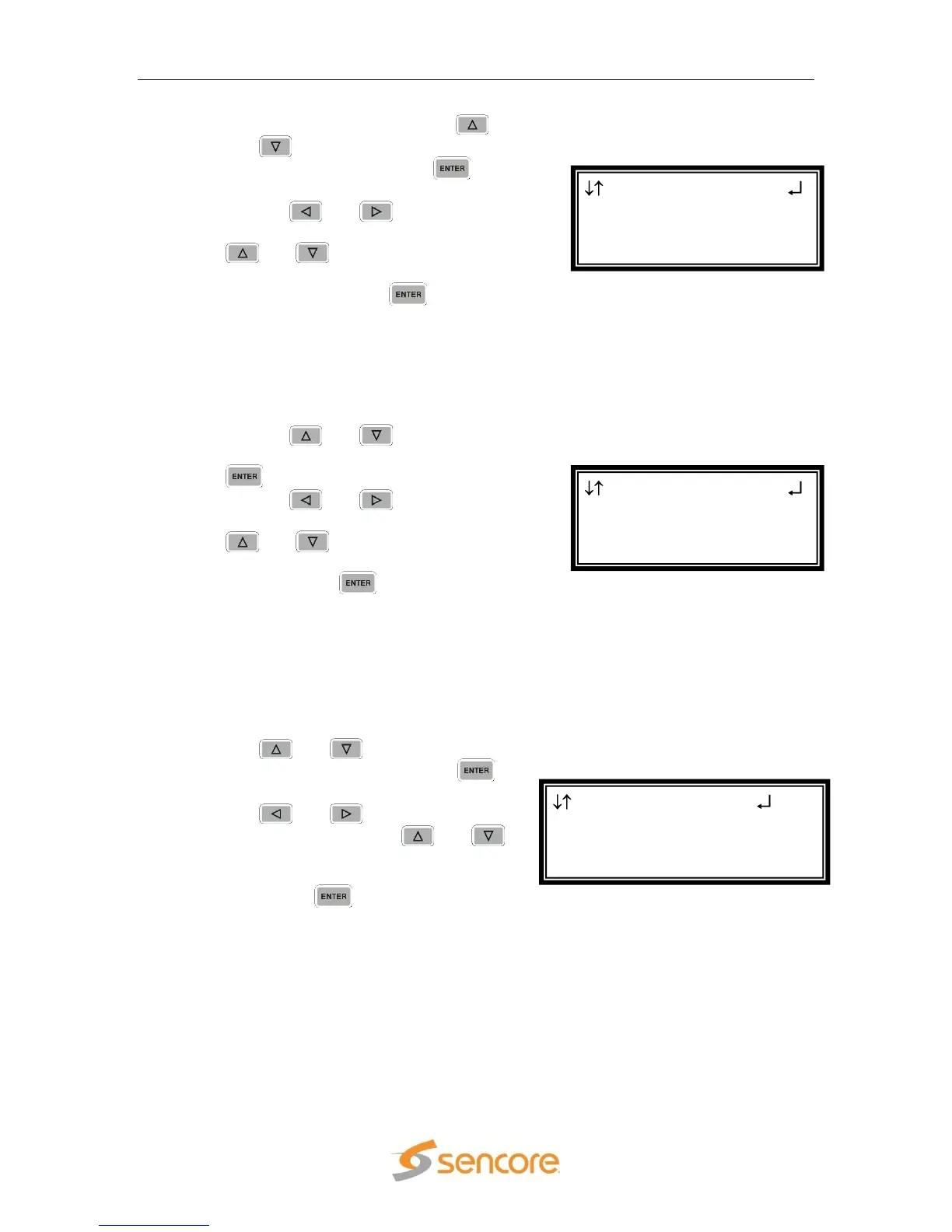

5. When in “Man” mode, use the
and buttons to move the cursor to
“LO Offset:” then press the
button.
6. Use the and buttons to
select the column to edit and use the
and buttons to change the
Local Oscillator Offset (0 – 13550
MHz), then press the button to
save the selection.
Note: If a value is entered results in a calculated L-Band that is out of range, an
“Out of Range!” message will be shown.
Note: The L-Band calculation is shown after the “Sat Freq:” line. The valid L-
Band frequency range is 950 – 2150 MHz.
Satellite Frequency
1. Use the and buttons to move
the cursor to “Sat Freq:” then press the
button.
2. Use the and buttons to
select the column to edit and use the
and buttons to change the
frequency (950 MHz – 14500 MHz),
then press the button to save the
selection.
Note: If a value is entered results in a calculated L-Band that is out of range, an
“Out of Range!” message will be shown.
Note: The L-Band calculation is shown after the “Sat Freq:” line. The valid L-
Band frequency range is 950 – 2150 MHz.
Symbol Rate
1. Use the and buttons to move the
cursor to “Sym Rt:” then press the
button.
2. Use the and buttons to select the
column to edit and use the and
buttons to change the symbol rate (1
MSps – 45 MSps).
3. Then press the button to save the
selection.
DVB-S/S2 1-4
Sat Freq:00950 MHz
= L-Band: 00950 Mhz
►Sym Rt:27.000000MSps
DVB-S/S2 1-4
LO Offset:00000MHz
►Sat Freq:00950 Mhz
= L-Band: 00950 MHz
DVB-S/S2 1-4
►LO Offset:00000MHz
Sat Freq:00950 Mhz
= L-Band: 00950 MHz
