MRD 3187B - User Manual
Page 62 (245)

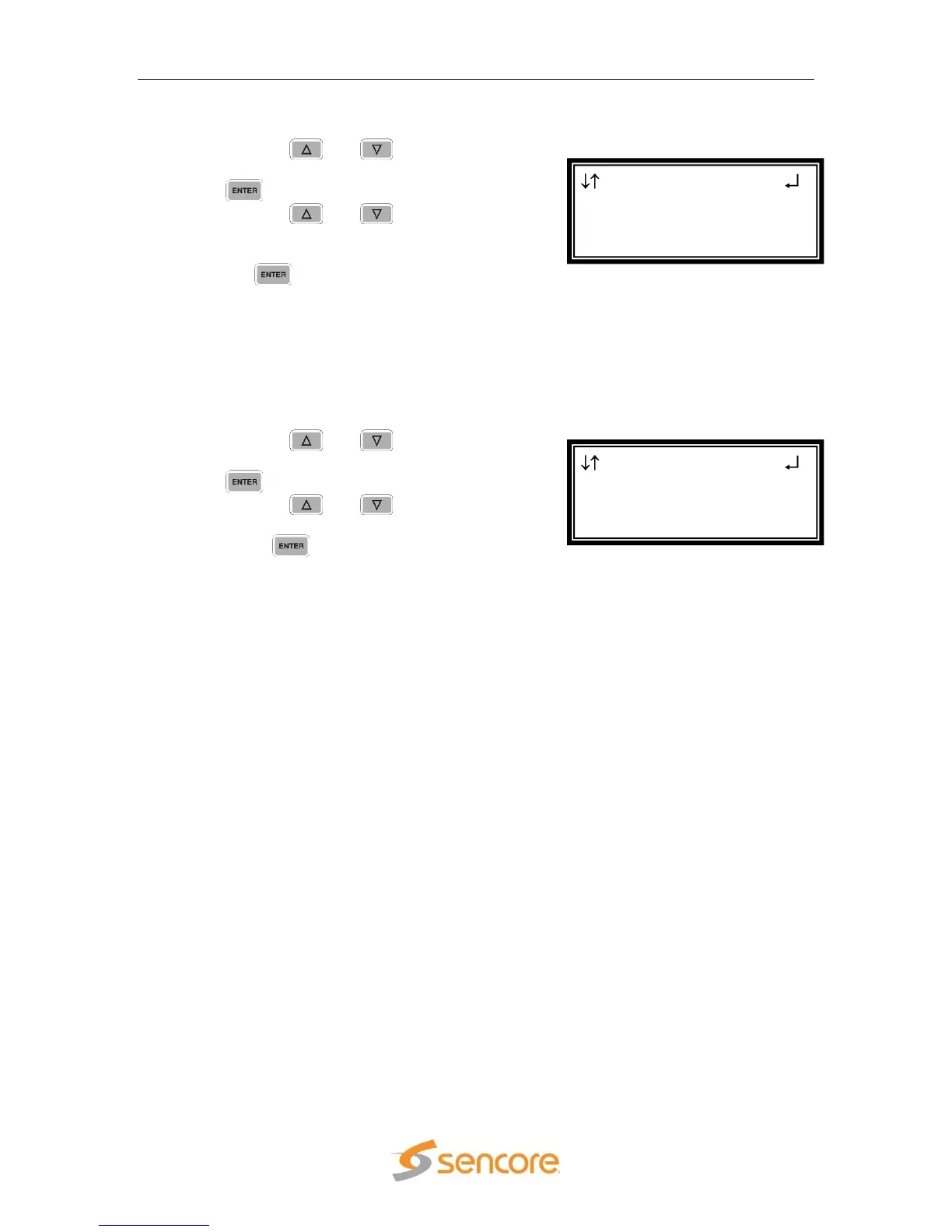

Analog Audio Settings
1. Use the
and
buttons to move
the cursor to “Ch1:” then press the
button.
2. Use the
and
buttons to
select the desired audio to output
(“Audio 1”, “Audio 2”, “Off”), then press
the
button to save the selection.
Note: The above steps apply to “Ch2:” as well.
Note: The above formats apply to a Configuration 1 Single Decoder unit or any
Configuration 2 unit. For a Configuration 1 Dual Decoder unit, the additional
values of “Audio 3” and “Audio 4” are available.
Output Level
Note: This setting is only available on the
8707A option card.
1. Use the
and
buttons to move
the cursor to “Level:” then press the
button.
2. Use the
and
buttons to
select the desired level (1-9), then
press
to save the selection.
Note: The level 7 is approximately 0 dB (when using a -20 dBFS reference level, see
Appendix F) and each number increment is approx. 2.5 dB. Level 9 is
approximately +4 dB (when using a -20 dBFS reference level, see Appendix F).
Audio 2-2
Ch1:Audio 1
Ch2:Audio 2
► Level:1
Audio 2-2
Analog Audio:
► Ch1:Audio 1
Ch2:Audio 2
To Next Page
