4.29 Genlock Reference
Description: The Genlock Reference is only available when an 8731A or 8734
decoder is installed in the unit. This sets the video format of the reference video
that is being used for Genlock.

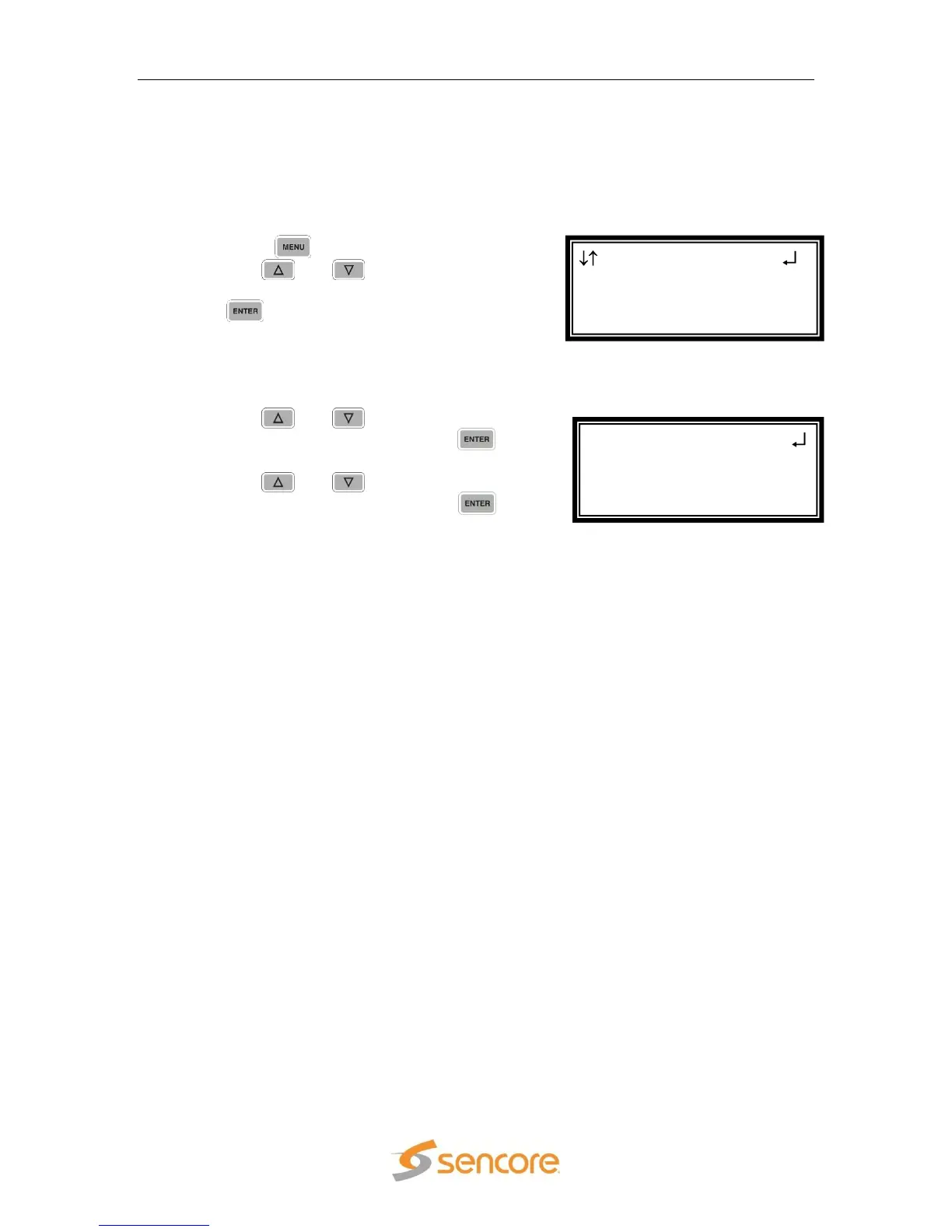

To set the Genlock Reference on the unit use the following steps:
1. Press the button.
2. Use the and buttons to move the
cursor to “Genlock Reference” then press
the button.
Setting Genlock Format
To set the Genlock reference format, follow the steps below:
1. Use the and button to move the
cursor to “Format:” then press the
button.
2. Use the and buttons to select
the desired format, then press the
button to save the selection.
Off
1080i
29.97
NTSC
29.97
1080i
30.00
PAL
29.97
1080p
23.98 *
720p
50.00
1080p
24.00 *
720p
59.94
1080p
25.00 *
720p
60.00
1080p
29.97 *
1080i
25.00
1080p
30.00 *
Note: The 1080p format selections are not available for the 8733 Decoder.
Genlock Reference
►Format:NTSC
Menu
►Genlock Reference
SMPTE 333M
System
