MRD 3187B - User Manual
Page 98 (245)
Source

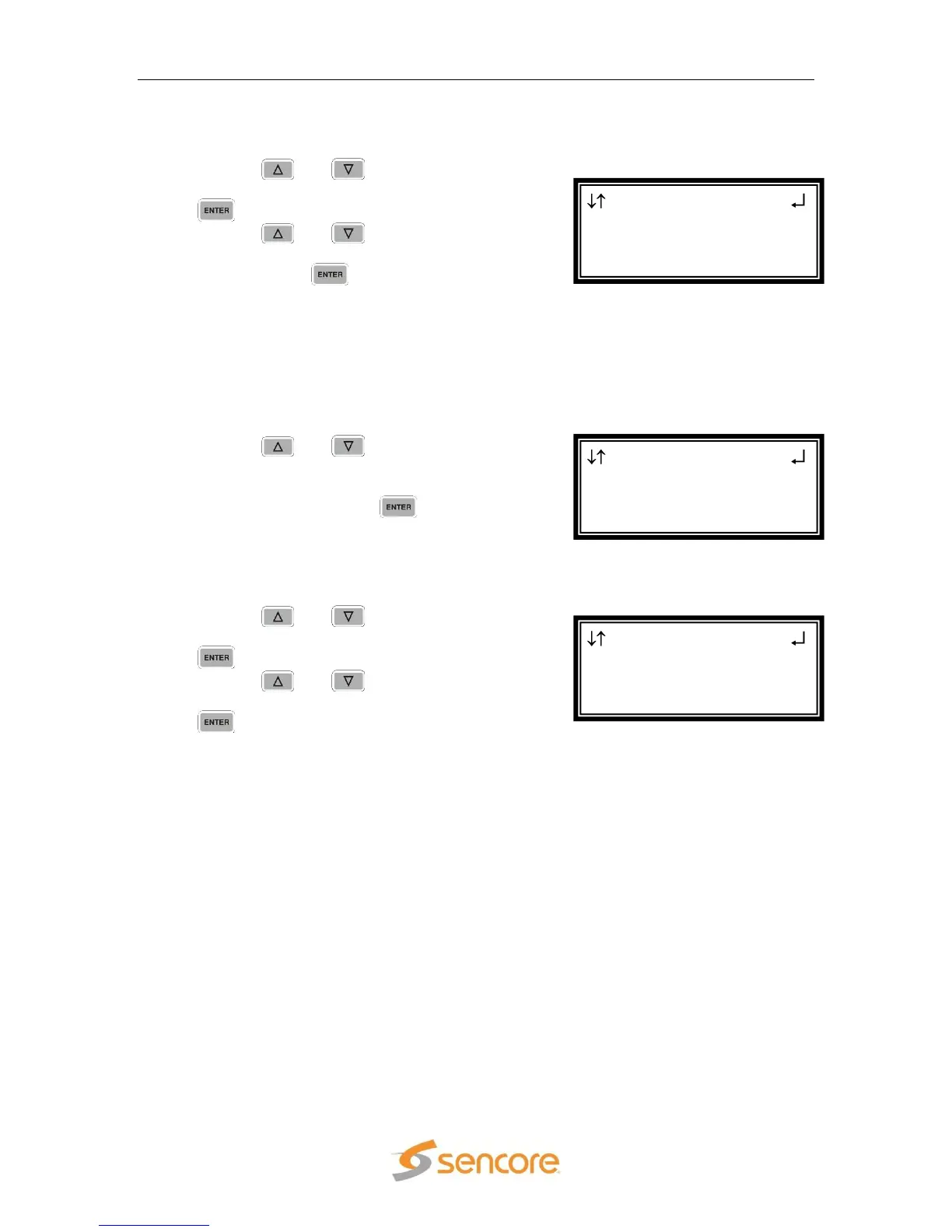

This option will select which input, on the back of the card, will be active.
1. Use the and buttons to move the
cursor to “Source Select:” then press the
button.
2. Use the and buttons to select
which input to be active (“A”, “B”, “C”, “D”),
then press the button to save the
selection.
Source Settings
These settings correspond to the “Source” input that is selected. Repeat these steps
for each input source, “Source A”, “Source B”, “Source C” and “Source D”.
Selecting the Source
The DVB-S/S2 card can receive either DVB-S or DVB-S2 transmission.
1. Use the and buttons to move the
cursor to the Source (“Source A” , “Source
B”, “Source C”, “Source D”) to edit the
settings, then press the button.
DVB Mode
The DVB-S/S2 card can receive either DVB-S or DVB-S2 transmission.
1. Use the and buttons to move the
cursor to “DVB Mode:” then press the
button.
2. Use the and buttons to select
either (“DVB-S”, “DVB-S2”), then press the
button to save the selection.
Enabling Advanced DVB-S2 Capabilities
The 8716 Option card can support Multistream input, VCM, 16APSK and 32APSK
Modulation. These advanced capabilities are enabled with an “Advanced Satellite
Features” license, see Section 4.33 and 5.13. The license is enabled by entering a
License Key and the status of the License is noted in the License “Feature List”. The
license enables the “Advanced Satellite Features” capabilities for all 8716 option
cards in the MRD.
When licensed, the “Multistream” settings will be available and the 8716 card will be
able to receive multistream transport streams, VCM, 16APSK modulation and
32APSK modulation.
Multistream Mode
When “Multistream” is disabled (or not licensed), the 8716 card will not be able to
receive multistream inputs. The 8716 will identify the input error as a multistream
input.
DVB-S/S2 1-4
►DVB Mode:DVB-S2
Multistream:Disabled
LNB Power:Off
DVB-S/S2 1-4
Source Select:A
►Source A
Source B
DVB-S/S2 1-4
►Source Select:A
Source A
Source B
