Sencore MRD 3187B - Dual Input ASM Receiver - Option 8711

MRD 3187B - User Manual
Page 79 (245)

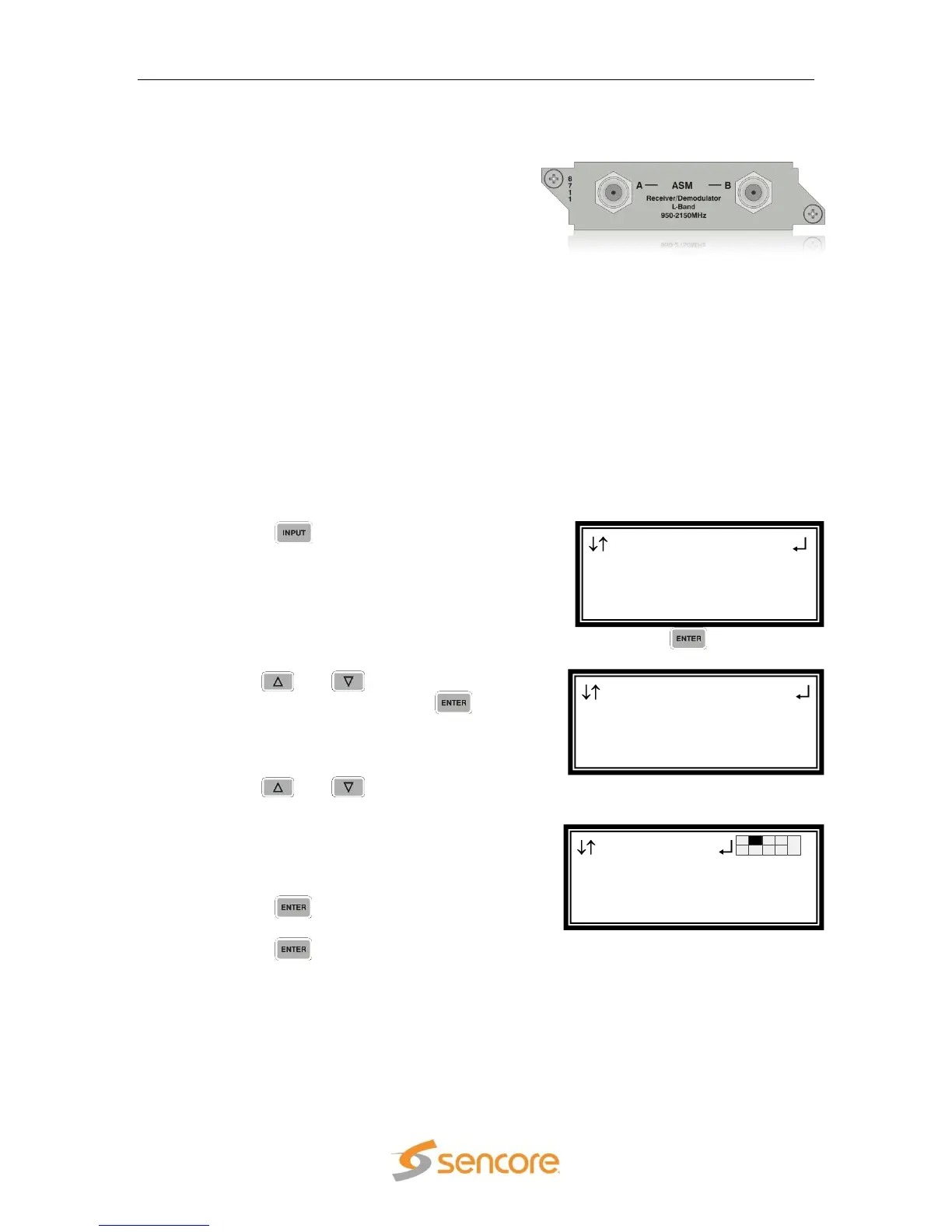

4.11 Dual Input ASM Receiver – Option 8711
General Information
Install Location: Any slot except 1-1 or 2-1.
I/O: (2) 75Ω Female F Connectors
Supported Formats: DVB-S/DVB-S2
Description: This card will input a satellite L-band (950 MHz – 2150 MHz) signal for
demodulation of KU-band, C-band, or X-band DVB-QPSK, 8PSK, or Adv-QPSK
signals. All these modes are available using Turbo Coded forward error
correction. The DVB-QPSK mode also supports legacy DVB FEC. The symbol
rate ranges from 0.256 MSym/s to 30 MSym/s for all modulation types. This card
does not provide any power to the dish LNB. The “Input” LED will only illuminate
if the card detects frequency, symbol rate, FEC lock (Carrier Lock), and TS sync
(Sync Lock). The card provides A and B inputs, which may be independently
configured, but only one may be active at a time.
Note: This card does not provide power to the dish LNB
To Edit the Option Card Input Settings
To edit this input card, use the following steps:
1. Press the button.
Note: For Configuration 2 units, select RDS1 or RDS2, then press .
2. Use the and buttons to select
“Input Modules”, and press the
button.
3. Use the and buttons to move the
cursor to the “AdvPSK” card of the specific
slot (e.g. 2-2). Notice the location diagram
in the upper right corner of the screen
changes as the cursor moves by each
card.
4. Press the button once to display the
Status screen for the Adv-PSK card.
5. Press the button again to display the
Edit screen for the Adv-PSK card.
Input
MPEG/IP 1-3
►AdvPSK 2-2
Input
Active Input
Backup Mode
►Input Modules
Input
Active Input
Backup Mode
►Input Modules
