MRD 3187B - User Manual
Page 33 (245)

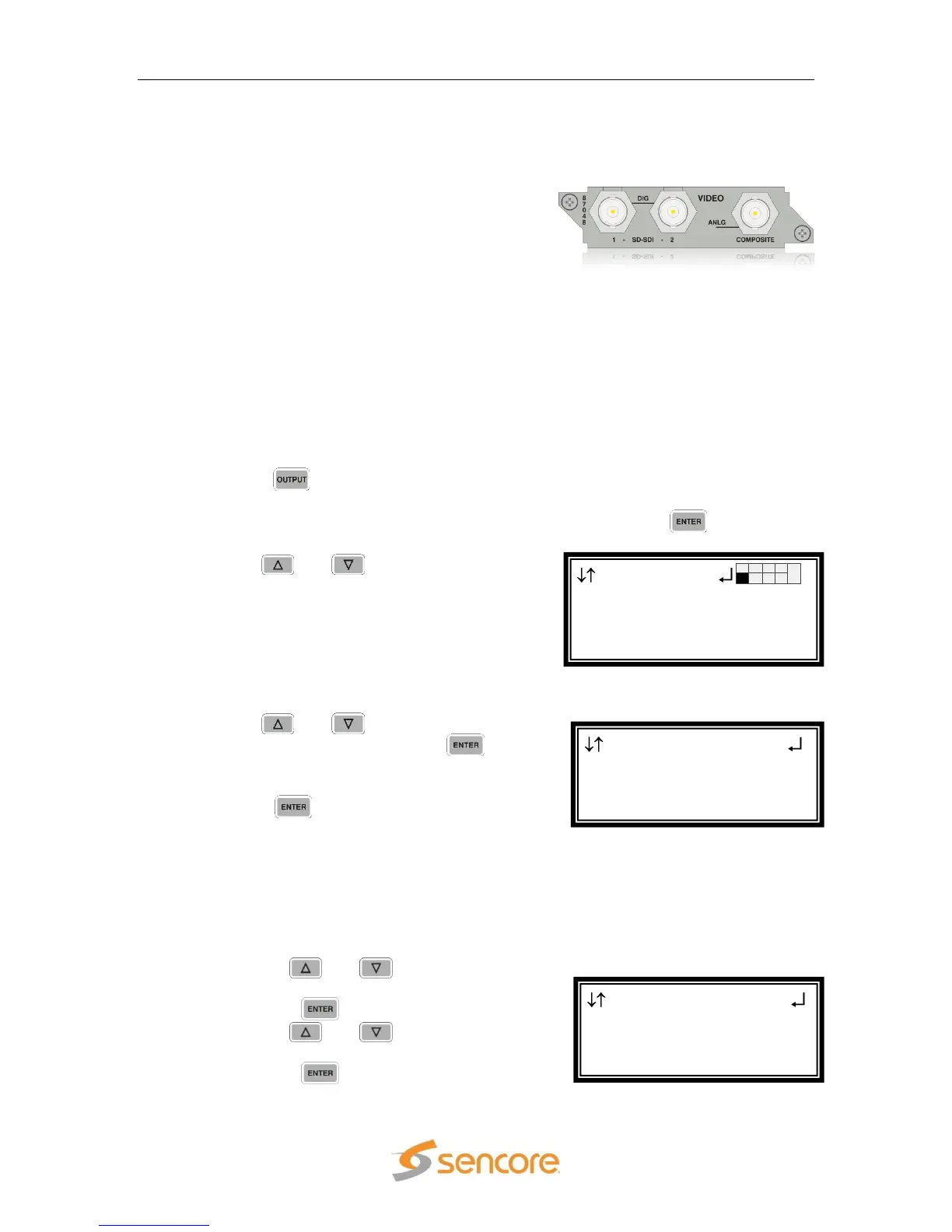

4.5 Video Output (2 SD-SDI, 1 Composite) – Option
8704A/8704B
General Information
Install Location: 1-1 or (2-1, only on
Configuration 2 units or Configuration 1
with dual decoders)
I/O: (2) 75Ω Female BNC SD-SDI outputs, (1)
75Ω Female BNC NTSC/PAL Composite
output
Supported Formats: SD-SDI, NTSC/PAL
Composite
Description: This card provides three mirrored outputs from any of the available
input option cards. Two of the outputs are SD-SDI and one is NTSC Composite.
The 8704A card provides Composite Color Phase Reference when used with
Genlock and the 8731, Genlock decoder.
Output Control
1. Press the button.
Note: For Configuration 2 units, select RDS1 or RDS2, then press .
2. Use the and buttons to move the
cursor to the “SD Video” card of the specific
slot (e.g. 1-1). Notice the location diagram
in the upper right corner of the screen
changes as the cursor moves by each card.
Video Settings
1. Use the and buttons to move the
cursor to “Video”, then press the
button to display the Video Status screen
for the video output card.
2. Press the button again to display the
Edit screen for the video output card.
Select Format Setting
When in “Auto” mode, the unit will automatically pick the format which is closest
to the native format of the decoded video in the elementary stream. When in
“Manual” mode, the format may be selected from the list of available output
formats listed under “Video Format” below.
1. Use the and buttons to move
the cursor to “Select Format:” then
press the button.
2. Use the and buttons to select
either “Auto” or “Manual” mode, then
press the button to save the
selection.
SD Video 1-1
►Select Format:Manual
Format:1920x1080i
16x9 29.97
SD Video 1-1
►Video
Genlock Offset
SDI VANC Assignment
Output
Audio 1-2
►SD Video 1-1
