MRD 3187B - User Manual
Page 107 (245)

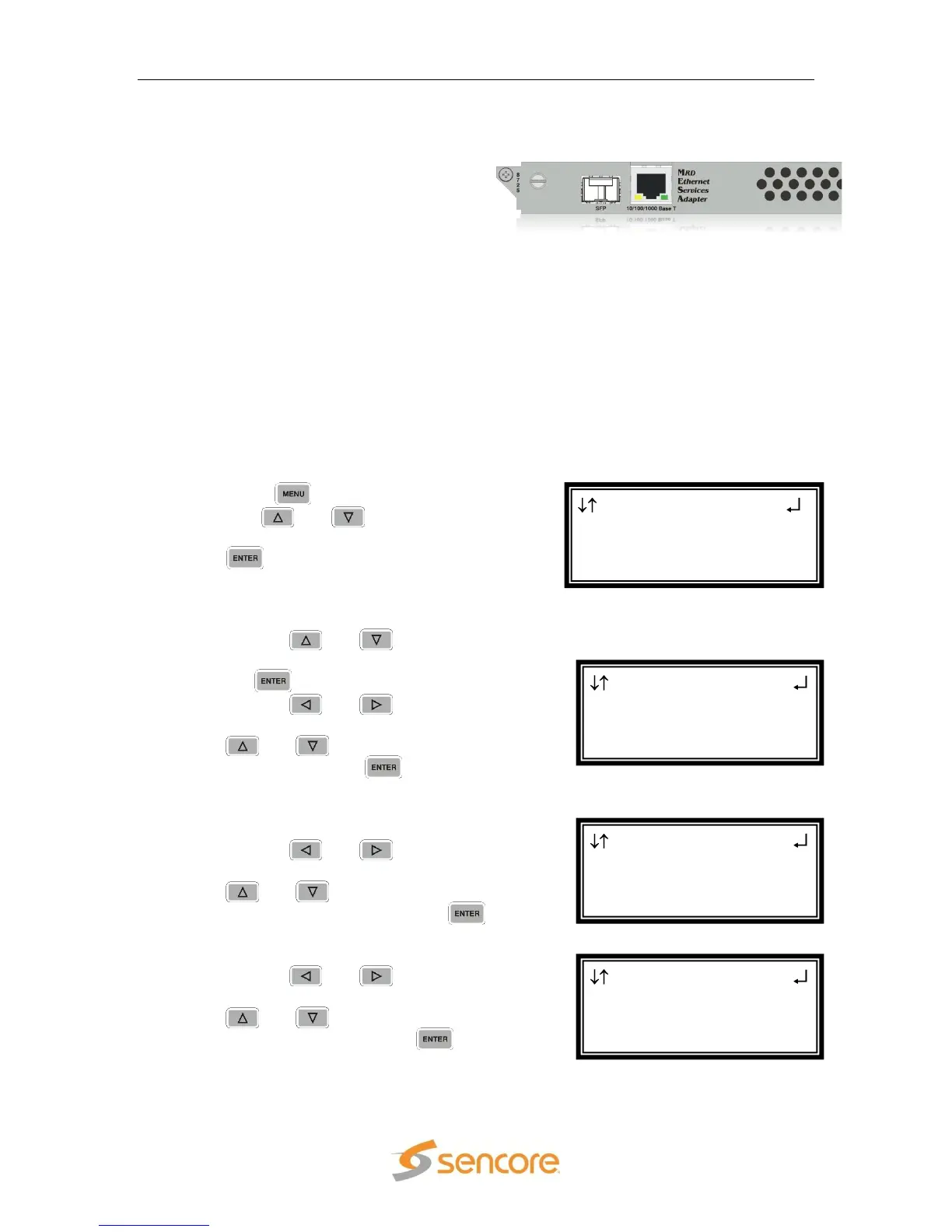

4.17 MPEG over IP Input/Output – Option 8725
General Information
Install Location: Installs in 1-3,4 or 2-
3,4 Only (Uses two slots)
Only one 8725 can be installed per
MRD 3187B chassis.
I/O: (1) 10/100/1000 Auto-negotiating Base-T RJ-45 Ethernet Port, (1) SFP Port
Supported Formats: UDP or RTP Multicasts and Unicasts
Description: This card encapsulates the TS from the bus and will transmit IP
streams, which are present on the bus, to either ASI/310M or to a decoder. Up to
two multicasts can be subscribed to, allowing for a backup multicast to be chosen
and three mirrored multicasts can be transmitted to allow for redundancy.
Menu Control
This menu is used to setup the IP address, Subnet Mask, and Gateway for the
MPEG/IP card. These settings need to be set to proper values for the network that
the MRD 3187B is being used on. These values can usually be obtained from the
local network administrator.
1. Press the button.
2. Use the and buttons to move the
cursor to “MPEG/IP NetCfg”, then press
the button.
IP Address/Subnet Mask/Gateway
1. Use the and buttons to move
the cursor to “IP Address”, then press
the button.
2. Use the and buttons to
select the column to edit and use the
and buttons to change the
IP, then press the button to save
the selection.
3. The cursor will now be on, “Subnet
Mask”.
4. Use the and buttons to
select the column to edit and use the
and buttons to change the
Subnet Mask, then press the
button to save the selection.
5. The cursor will now be on, “Gateway.”
6. Use the and buttons to
select the column to edit and use the
and buttons to change the
Gateway, then press the button
to save the selection.
MPEG/IP 1-3 Net←→
255.255.255.0
Gateway
► 000.000.000.000
MPEG/IP 1-3 Net←→
10.0.0.50
Subnet Mask
► 255.255.255.000
MPEG/IP 1-3 Net←→
IP Address
► 000.000.000.000
Subnet Mask
Menu
►MPEG/IP NetCfg
Genlock Reference
SMPTE 333M
