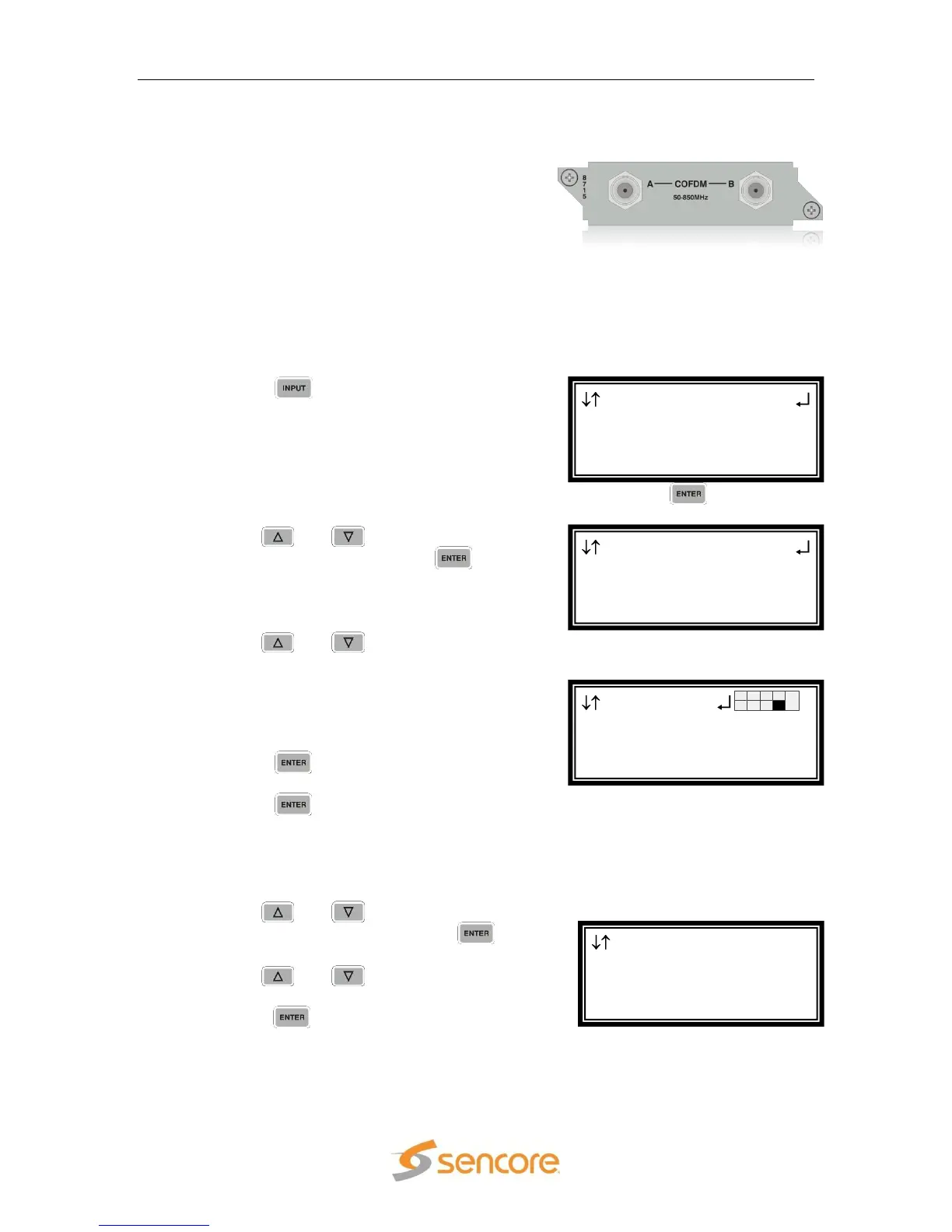

4.14 Dual Input COFDM Receiver – Option 8715
General Information
Install Location: Any slot except 1-1 or 2-1.
I/O: (2) 75Ω Female F Connectors
Supported Formats: COFDM
Description: This card will allow the MRD 3187B to receive a COFDM signal for use
in electronic news gathering (U.S.) or any COFDM Terrestrial Broadcast (DVB-T,
European) applications. Only one input may be selected at a time.
To Edit the Option Card Input Settings
To edit this input card, use the following steps:
1. Press the button.
Note: For Configuration 2 units, select RDS1 or RDS2, then press .
2. Use the and buttons to select
“Input Modules”, and press the
button.
3. Use the and buttons to move the
cursor to “Dual COFDM” card of the
specific slot (e.g. 1-4). Notice the location
diagram in the upper right corner of the
screen changes as the cursor moves by
each card.
4. Press the button once to display the
Status screen for the COFDM card.
5. Press the button again to display the
Edit screen for the COFDM card.
Source
This option will select which input, on the back of the card, will be active.
1. Use the and buttons to move the
cursor to “Source:” then press the
button.
2. Use the and buttons to select
which input to be active (“A”, “B”), then
press the button to save the
selection.
Input A
These settings correspond to the input on “Source A.”
Dual COFDM 1-4
►Source:A
Input A
Center Preq:049MHz
Input
Dual QPSK 1-3
►Dual COFDM 1-4
Input
Active Input
Backup Mode
►Input Modules
Input
►Active Input
Backup Mode
Input Modules
