MRD 3187B - User Manual
Page 83 (245)

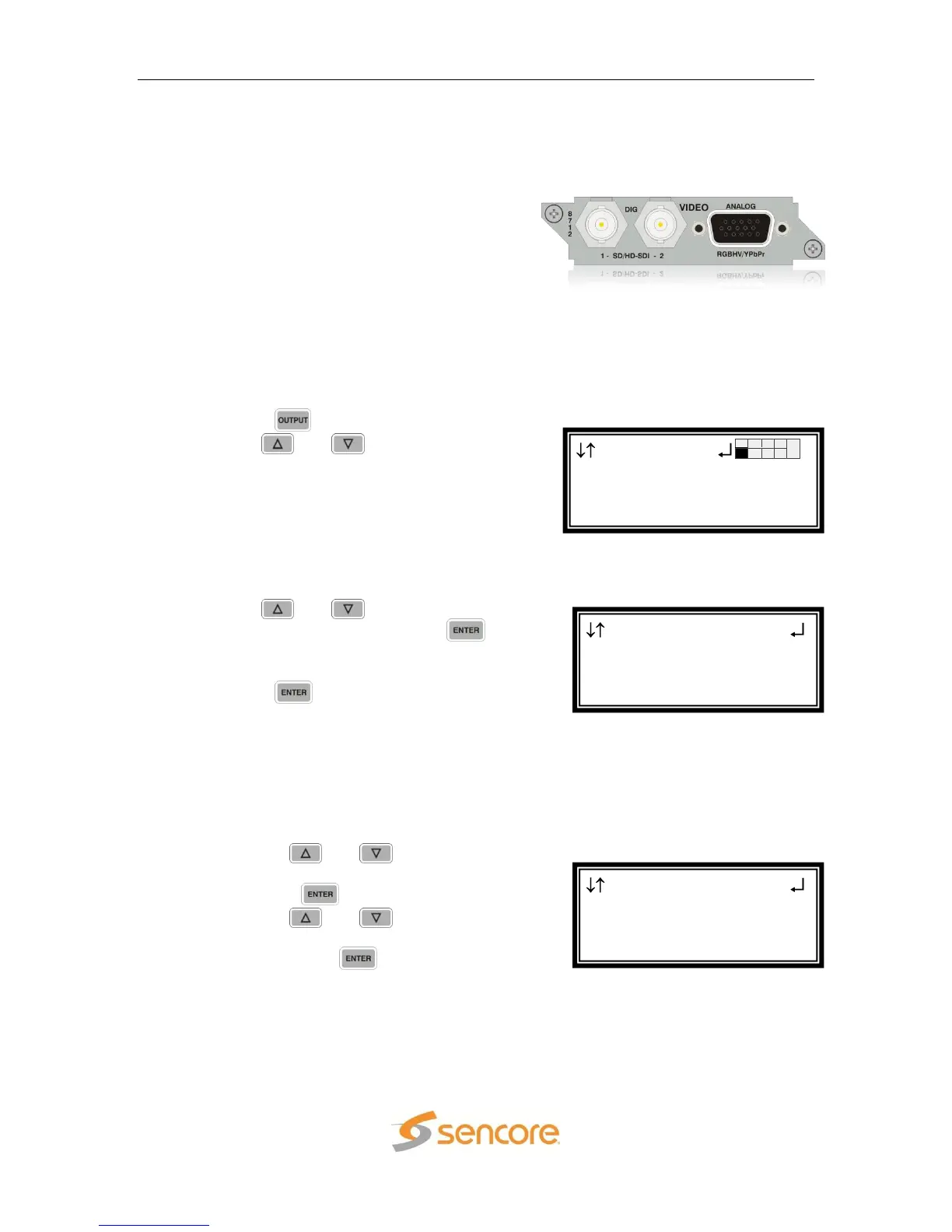

4.12 Video Output (2 HD/SD-SDI, 1 RGBHV/YPbPr/Comp) –
Option 8712
General Information
Install Location: This card can only be
installed in location 2-1.
I/O: (2) 75Ω HD-SDI Female BNC outputs, (1)
15-pin D-sub Female analog output
Supported Formats: HD-SDI, SD-SDI,
YPbPr, RGBHV, and Composite
Description: This card provides three mirrored outputs from any of the available
input option cards. Two of the outputs are any combination of HD-SDI or SD-SDI
and one is analog YPbPr/RGBHV/Composite.
Note: This output card option is only used with the 8733 Decoder option.
Output Control
1. Press the button.
2. Use the and buttons to move the
cursor to the “HD Video” card of the
specific slot (e.g. 2-1). Notice the location
diagram in the upper right corner of the
screen changes as the cursor moves by
each card.
Video Settings
1. Use the and buttons to move the
cursor to “Video”, then press the
button to display the Video Status screen
for the video output card.
2. Press the button again to display the
Edit screen for the video output card.
Select Format Setting
When in “Auto” mode, the unit will automatically pick the format which is closest
to the native format of the decoded video in the elementary stream. When in
“Manual” mode, the format may be selected from the list of available output
formats listed under “Video Format” below.
1. Use the and buttons to move
the cursor to “Select Format:” then
press the button.
2. Use the and buttons to
select either “Auto” or “Manual” mode,
then press the button to save the
selection.
SDI Anlg Vid 2-1
►Select Format:Manual
Format:1920x1080i
16x9 29.97
SDI Anlg Vid 2-1
►Video
HD SDI VANC Assign
SD SDI VANC Assign
Output
►SDI Anlg Video 2-1
Audio 2-2
To Next Page
