Video Format
Note: This menu is only available if the “Select Format” option is set to “Manual.”

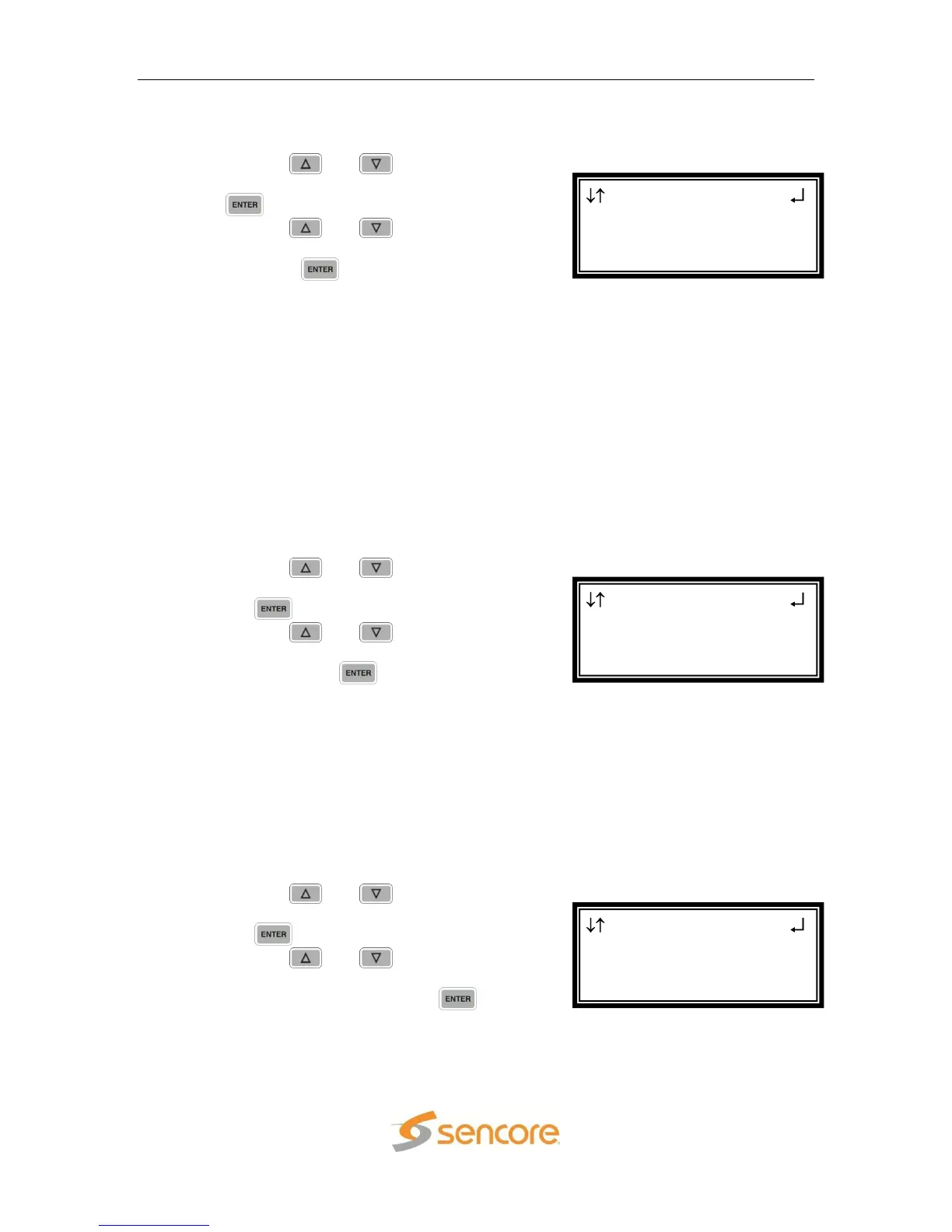

1. Use the and button to move
the cursor to “Format:” then press the
button.
2. Use the and buttons to
select the desired output format, then
press the button to save the
selection.
These are the available manual set output formats:
1280x720p
16x9
50.00
1920x1080i
16x9
30.00
1280x720p
16x9
59.94
1920x1080i
16x9
29.97
1280x720p
16x9
60.00
1920x1080i
16x9
25.00
HD Display Mode Setup
This sets the video frame conversion when the HD output video format has a
different aspect ratio form the input video. “Letterbox” provides bars to fill the
screen, either top and bottom (letterbox) or on each side (pillarbox). “Cropped”
expands (without distortion) the video so that it fills the video frame and deletes
the parts that extend beyond the frame.
1. Use the and button to move
the cursor to “Disp Mode:” then press
the button.
2. Use the and buttons to
select either “Letterbox” or “Cropped”,
then press the button to save the
selection.
SD Mode Setup
This sets the video frame conversion when the SD output video format has a
different aspect ratio form the input video. “Letterbox” provides bars to fill the
screen, either top and bottom (letterbox) or on each side (pillarbox). “Cropped”
expands (without distortion) the video so that it fills the video frame and deletes
the parts that extend beyond the frame. “Anamorph” stretches the video to fit the
full screen.
1. Use the and button to move
the cursor to “SD Mode:” then press
the button.
2. Use the and buttons to
select either “Letterbox”, “Cropped” or
“Anamorph”, then press the
button to save the selection.
SDI Anlg Vid 2-1
16x9 29.97
Disp Mode:Letterbox
►SD Mode:Cropped
SDI Anlg Vid 2-1
16x9 29.97
►Disp Mode:Letterbox
SD Mode:Cropped
SDI Anlg Vid 2-1
Select Format:Manual
►Format:1920x1080i
16x9 29.97
