MRD 3187B - User Manual
Page 121 (245)

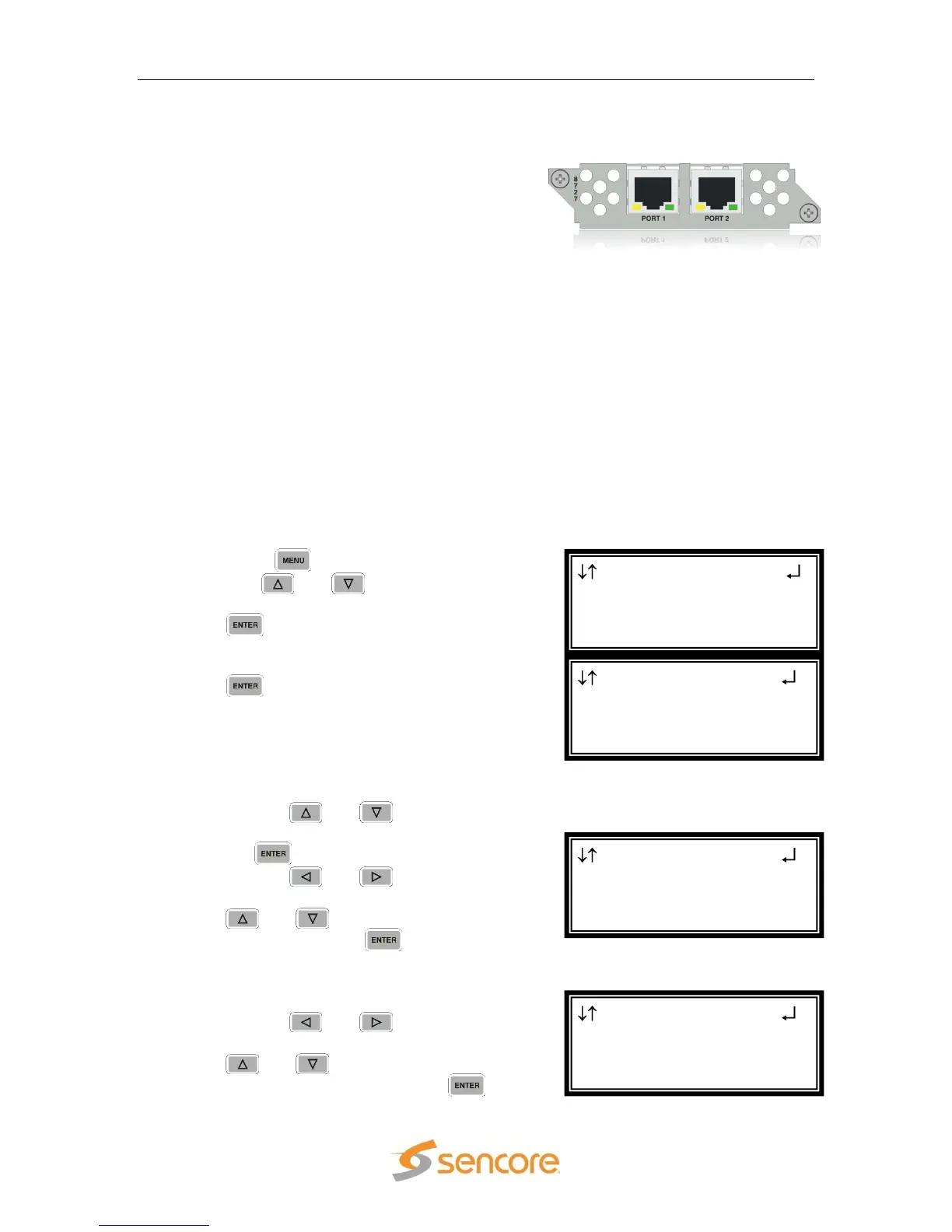

4.18 Dual MPEG over IP Input/ UDP Output – Option 8727
General Information
Install Location: Installs in 1–2 through 1–4
and/or 2–2 through 2–4.
I/O: (2) 10/100/1000 Auto-negotiating Base-T
RJ-45 Ethernet Port
Supported Formats: Receive UDP or RTP Multicasts and Unicasts. Transmit: UDP
only
Description: This card encapsulates the TS from the bus and will transmit IP
streams. It can also take in IP streams and place them on the bus for an
ASI/310M card and/or a decoder. Up to two multicasts can be subscribed to,
allowing for a backup multicast to be chosen and two mirrored unicasts can be
transmitted to allow for redundancy. The two physical connectors can be
configured independently.
Menu Control
This menu is used to setup the IP address, Subnet Mask, and Gateway for the
MPEG/IP card. These settings need to be set to proper values for the network that
the MRD 3187B is being used on. These values can usually be obtained from the
local network administrator.
1. Press the button.
2. Use the and buttons to move the
cursor to “MPEG/IP NetCfg”, then press
the button.
3. Select “Port 1” or “Port 2” and then press
the button.
IP Address/Subnet Mask/Gateway
1. Use the and buttons to move
the cursor to “IP Address”, then press
the button.
2. Use the and buttons to
select the column to edit and use the
and buttons to change the
IP, then press the button to save
the selection.
3. The cursor will now be on, “Subnet
Mask”.
4. Use the and buttons to
select the column to edit and use the
and buttons to change the
Subnet Mask, then press the
button to save the selection.
MPEG/IP 1-4 Net←→
10.0.0.51
Subnet Mask
► 255.000.000.000
MPEG/IP 1-4 Net←→
IP Address
► 010.000.000.051
Subnet Mask
MPEG/IP NetCfg
Select a Port
►Port 1
Port 2
Menu
►MPEG/IP NetCfg
Genlock Reference
System
To Next Page
